White Two-digit LED Radar Speed Limit Sign
Product Introduction
Our solar-powered radar speed sign is a high-precision traffic safety solution, engineered for durability and ease of use. It comes with CE certification. We offer extensive customization options for logos and displays to meet your specific needs. Backed by a robust 2-year product warranty (1-year for battery), it includes comprehensive support: step-by-step installation videos, dedicated technical guidance, and a unique debugging app for effortless setup and real-time device management. It's more than a product; it's a reliable, smart, and supported safety partnership.
Product Specification
| Product name: | White Solar Radar Speed Sign |
| Brand Name: | Jinke |
| Place of Origin: | Jiangxi, China |
| Size: | W 500x H 700 mm/ customized |
| Material: | Galvanized Steel+led light+ reflective sheeting |
| Measuring Distance: | >150m |
| Display mode: | 2-digit LED Display(optionally) |
| Power Supply: | Solar battery or main power |
| Work temperature: | -20 ℃-+ 70 ℃ |
| Protection grade: | IP65 |
| Measurement Range From | 1-199km/h |
| Service life： | > 100,000 hours |
Product Features
1.Core functions: Real-time detection and display of vehicle speed, prevention of speeding, and assistance in road traffic management
2. High-brightness LED digital display (red and green dual colors), visible distance ≥ 200 meters; The surface is covered with a high-gloss reflective film, making it clearly visible at night.
3. Excellent speed measurement performance: The detection distance can reach up to 200 meters, and the speed display range is usually 1-99 km/h (or mph).
4. Good material and high protection: Aluminum baked paint shell, anti-corrosion; The protection grade is as high as IP65, featuring strong water and dust resistance as well as excellent sealing performance
5. Solar power supply is optional (equipped with solar panels and batteries), supporting continuous operation on rainy and cloudy days
6. Applicable scenarios: Expressways, urban streets, residential communities, school areas, factory parks and other areas that require speed limit management

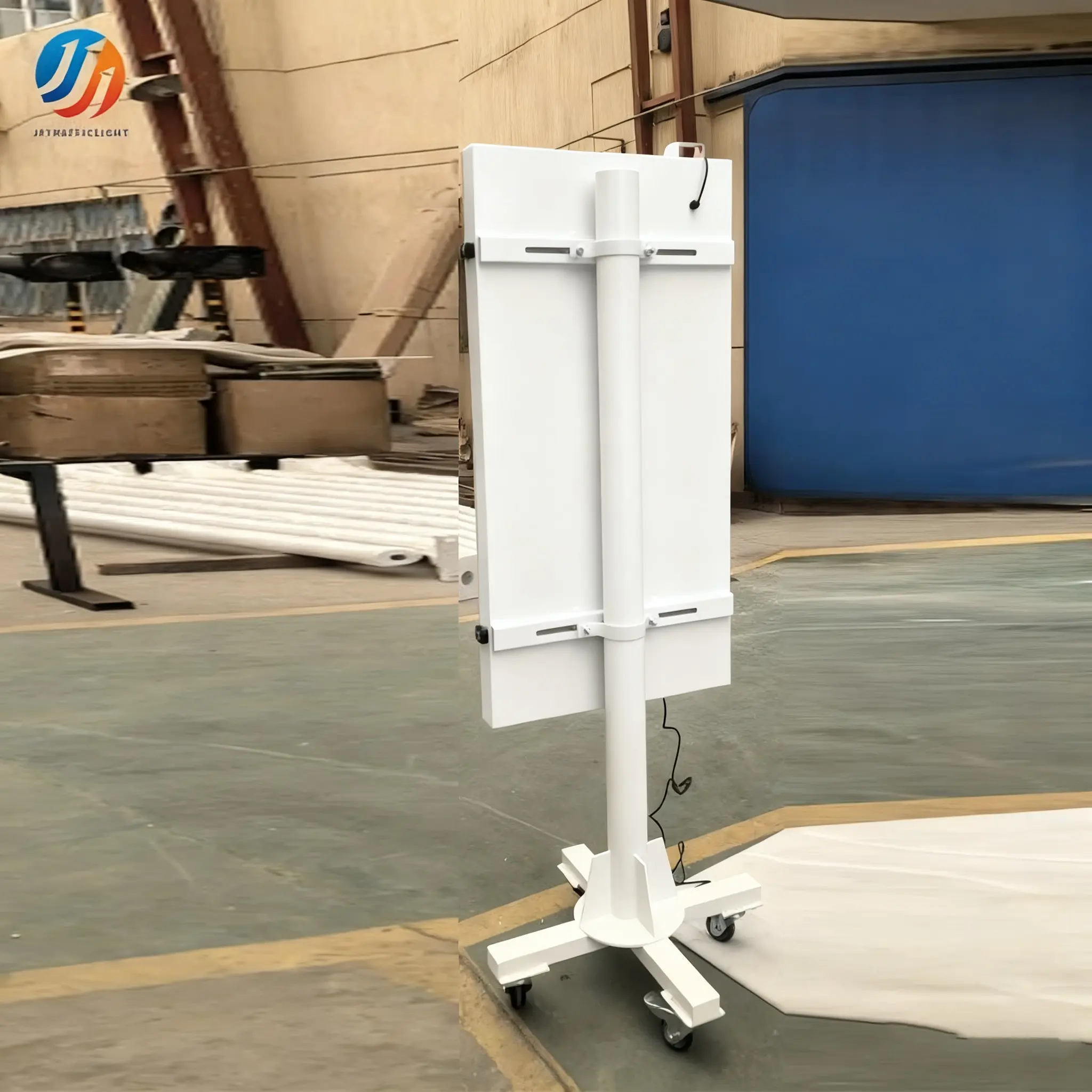

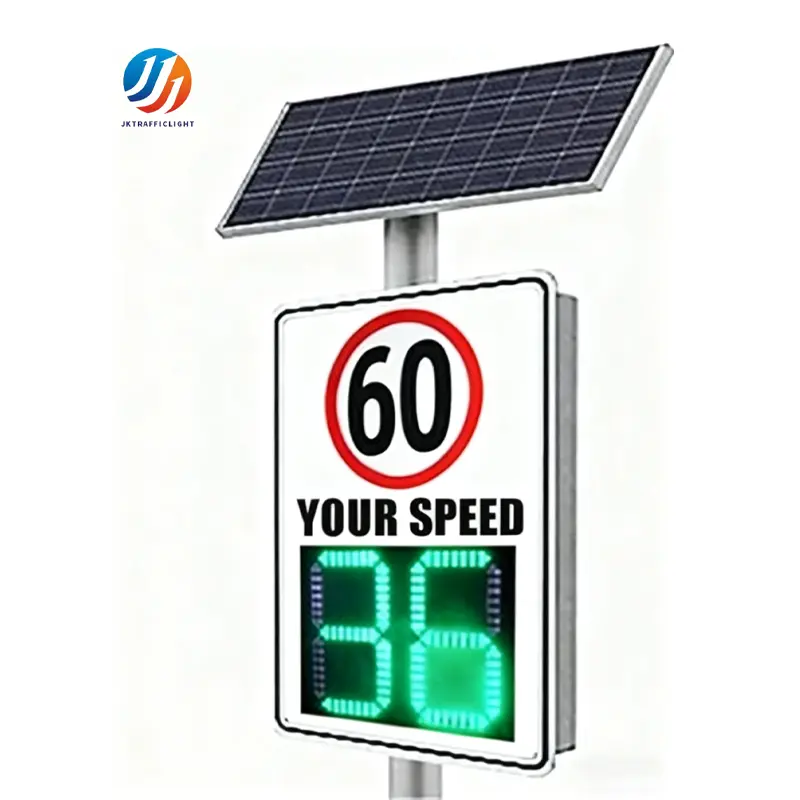

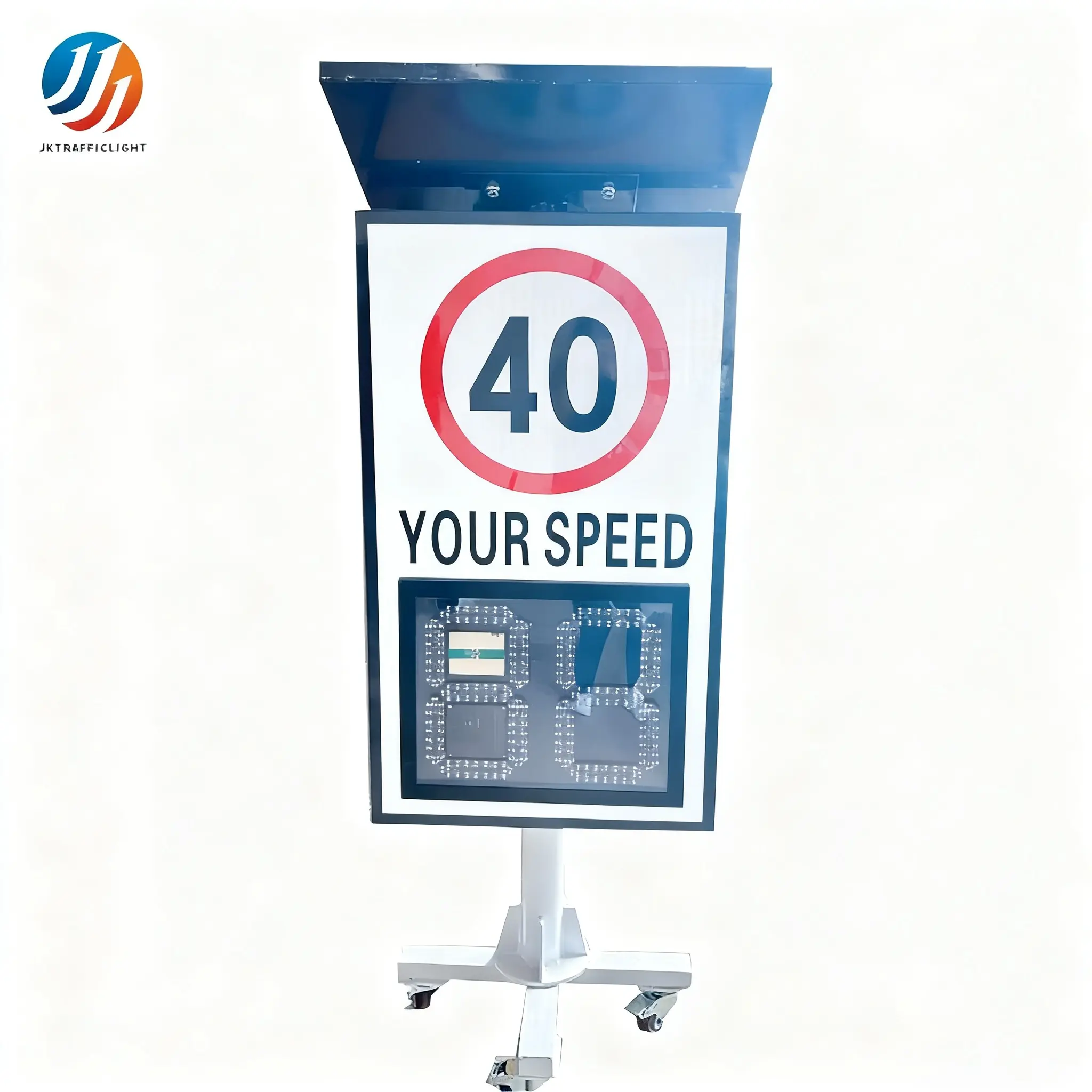

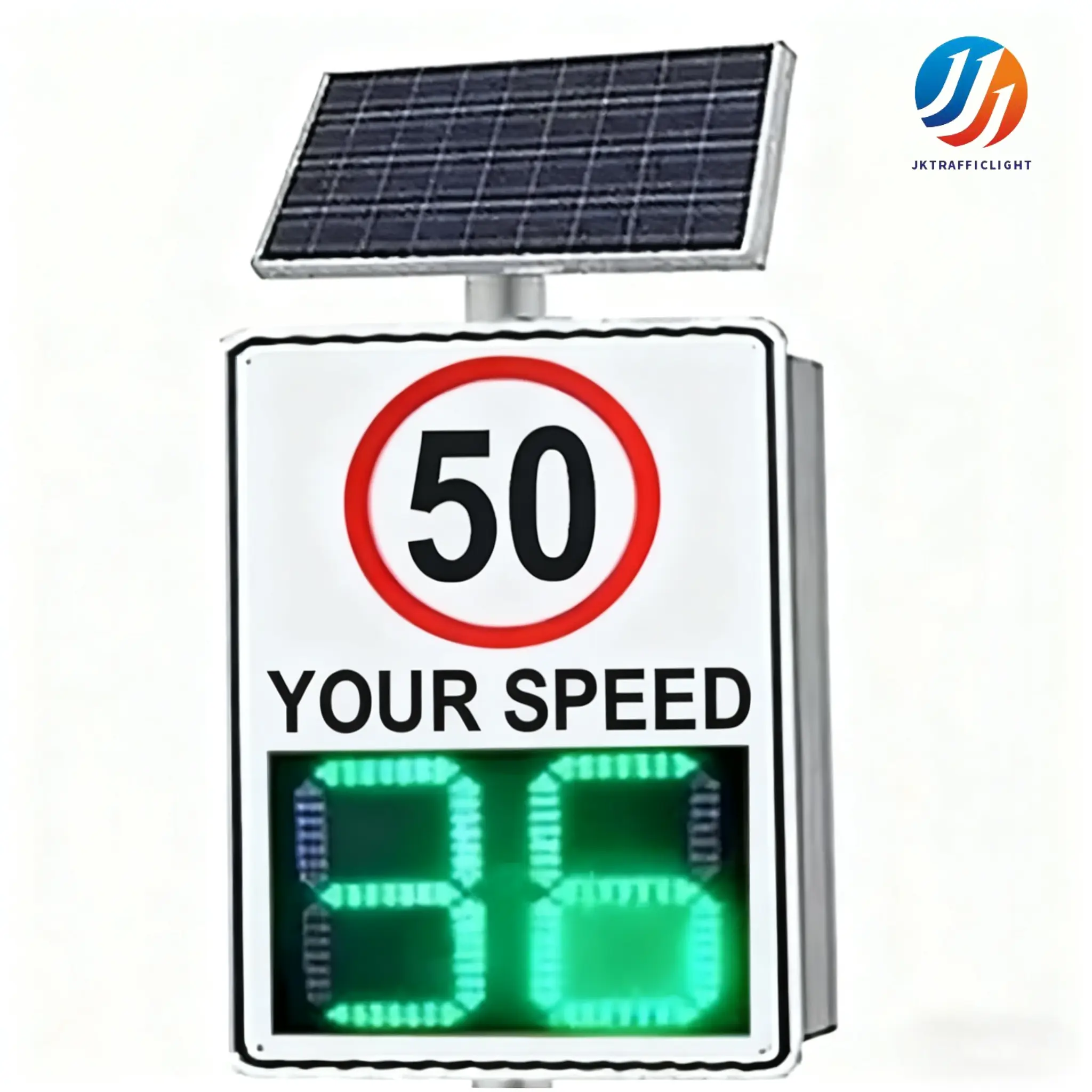

Detailed images
Installation and maintenance
I. Site Selection Principles:
1. Select positions where the radar beam can effectively cover the vehicle's travel path to avoid obstructions such as green belts and railings.
2. Ensure that the front of the LED screen is facing the direction of oncoming vehicles and that the driver has sufficient visible distance (usually 100-150 meters).
3. If it is a solar-powered model, make sure the panel faces the sunlight and there is no perennial shade blocking it.
Ii. Installation and Fixation：
1. Use expansion bolts or ground nails to firmly fix the base according to the ground conditions (cement, asphalt) to prevent it from toppling over.
2. Keep the equipment perpendicular to the road surface and adjust the radar pitch Angle to the optimal detection Angle according to the road speed limit.
Iii. Parameter Settings：
After the first power-on, it needs to be set through the dedicated Settings APP
Product Packaging
Frequently Asked Questions (FAQ)
Q1: Do you accept OEM?
A1: Yes. We accept producing products under Clients' brands.
Q2: Do I need a professional for installation?
A2: No need. Product design is simple, easy to install, users can install themselves according to the instructions.
Q3: Does the product support customization?
A3: Yes, we can customize the size, brightness, flicker mode and other parameters according to customer requirements.
