Waterproof IP53 Arrow Directional LED Traffic Safety Signal Light Solar Wireless Control Signal Light

Waterproof IP53 Arrow Directional LED Traffic Safety Signal Light Solar Wireless Control Signal Light

1. Easy to open the lamp cover, hand screw, easy to install and maintain. Easy to install, the back of the light body is designed with a quick installation structure, easy to install with different light poles.
2. Ultra-thin light body design.
3. Waterproof sealed tray, secondary waterproof and dustproof. It has strong dust, rain, moisture and heat resistance, high temperature and low temperature resistance.
4. Unique voltage regulator protection, extend the service life of the signal lamp.
5. High brightness, good clarity, visual distance of more than 600 meters.

    Product Introduction

    The traffic light is the signal light that commands the traffic operation, which is generally composed of red light, green light and yellow light. The red light indicates that the traffic is prohibited, the green light indicates that the traffic is permitted, and the yellow light indicates the warning. direction signals is a key component of traffic signal equipment, mainly used to guide vehicles or pedestrians to travel or pass in the direction of the arrow, commonly seen in intersections, U-turn areas, dedicated lanes and other scenes. Its core function is through red, yellow, green arrow or pattern indication, combined with time-sharing control, clear traffic direction, reduce traffic conflicts and improve traffic efficiency. This product usually conforms to the national standard GB14887-2011, suitable for motor vehicles, non-motor vehicles and special scenarios (such as turning area).

    Product Specification

    Product name: Arrow Directional LED Traffic Safety Signal Light
    Brand Name: Jinke
    Place of Origin: Jiangxi, China
    Diameter: 100mm/200mm/300mm / customized
    Material: Polycarbonate (PC) engineering material/Aluminumdie-castmaterial
    LED Wave length: Red (625nm) Yellow (590nm) Green (505nm)
    LED Light Angle: 30°
    Power Type: Constant current
    Operating Voltage: DC12~24V,AC176~264V
    Single Light Rated Power: ≤8W
    Service Life: >50,000hours
    Operating Temperature: -40℃~80℃
    Protection Level: ≥IP53
    Start/Stop Response Time: <100ms
    Light Source: LED
    Emitting Color: Red/Green/ Yellow
    Power Factor: >0.85
    View Distance: >500m

    Product Features

    Security enhancement
    Through directional arrow time-sharing control, clear vehicle traffic path, reduce the risk of intersection accidents, especially suitable for complex traffic flow scenarios.
    High brightness and wide viewing Angle design, to ensure that rain, fog, strong light and other harsh conditions are still clearly visible.
    Energy saving and environmental protection
    The power consumption of the LED light source is only 10%-20% of the traditional signal light, and the solar model further reduces the energy consumption, in line with the green traffic trend.
    Long life design reduces replacement frequency and maintenance costs.

    Detailed images

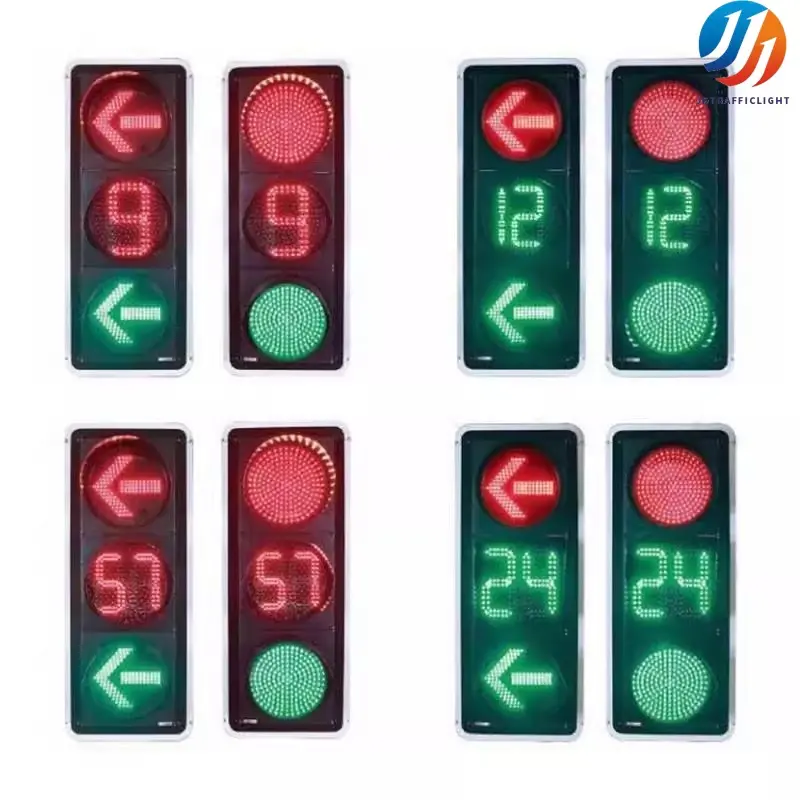

    Arrow Directional LED Traffic (1)

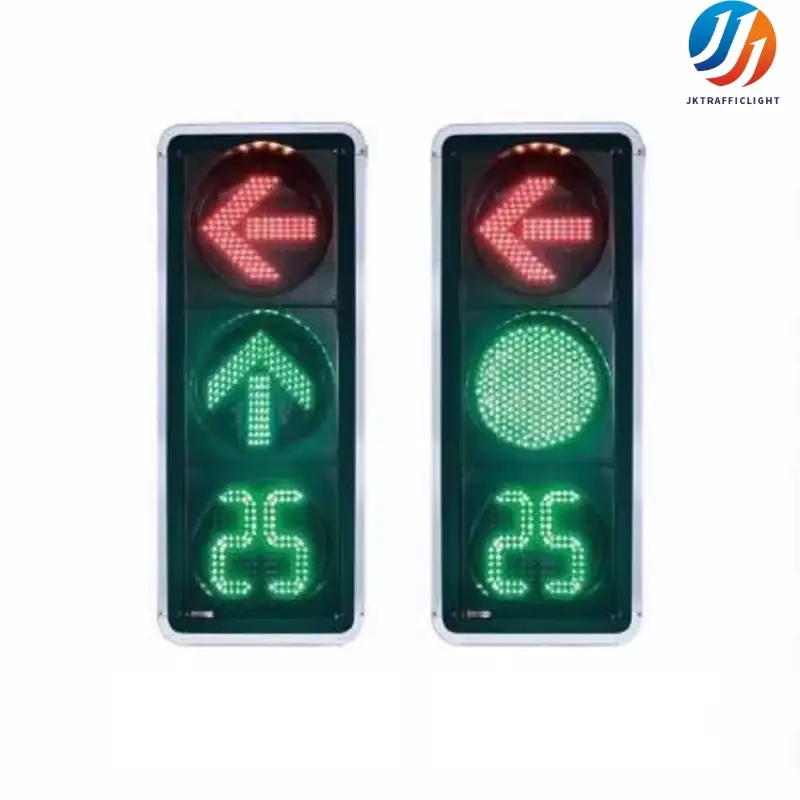

    Arrow Directional LED Traffic (2)

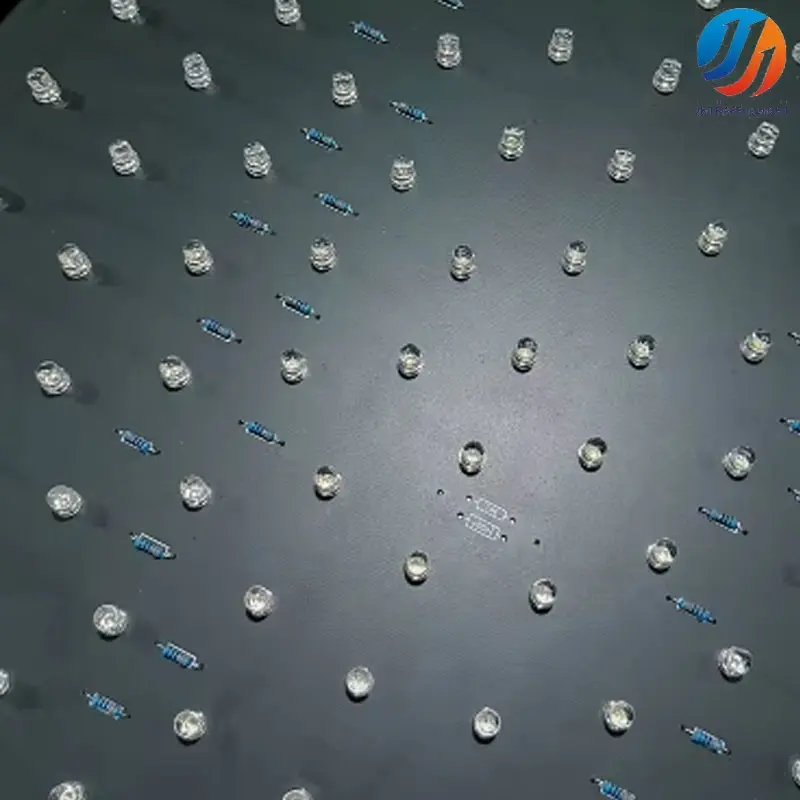

    Arrow Directional LED Traffic (3)

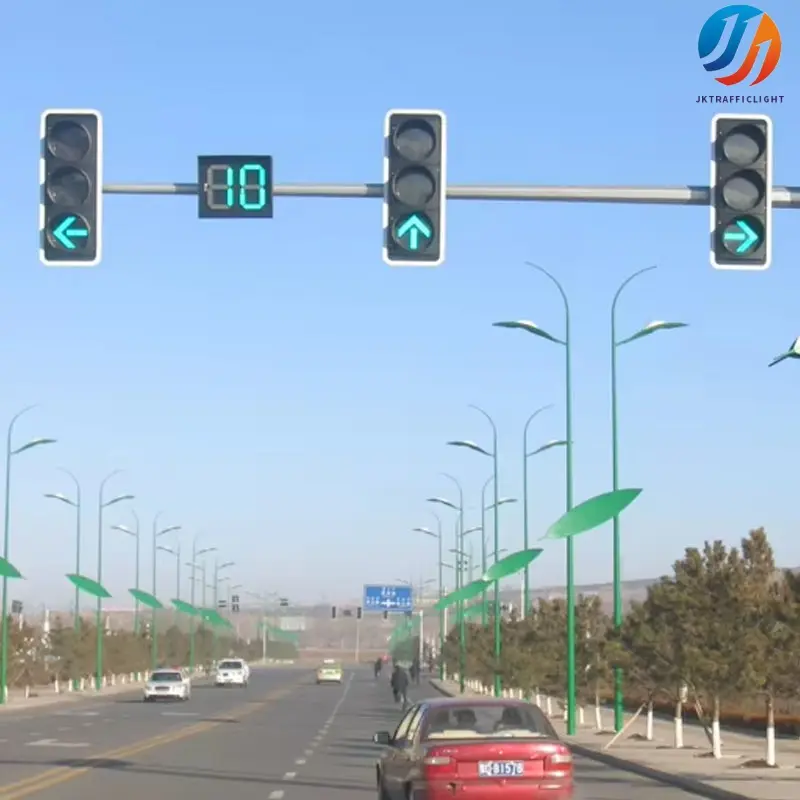

    Arrow Directional LED Traffic (4)

    Installation and maintenance

    The structure design is reasonable, the installation is simple and quick, and can be fixed by wall hanging, column and other ways. At the same time, the modular design, each component is easy to disassemble and replace, reduce maintenance costs, improve maintenance efficiency.

    Product Packaging

    packing

    Frequently Asked Questions (FAQ)

    Q1. Can I have a sample order for led light?
    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
    Q2. What about the lead time?
    A: Samples within 3 days, big order within 1-2 weeks.
    Q3: How do you ship the goods and how long does it take to arrive?
    A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
    Q4. Is it OK to print my logo on led light product?
    A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
    Q5: How to choose the system Voltage 12V /24V ?
    A: We could design the system for you .Usually 12V system for 15W-40W LED lamp , 24V system for 50-150W LED lamp.
