Vehicle Radar Speed Feedback Sign with Korean Message
Product Introduction
Tailored specifically for road safety in South Korea. This intelligent radar speed sign not only displays the vehicle speed in real time with eye-catching numbers, effectively reminding drivers to slow down, but also can be customized with Korean safety slogans. It perfectly integrates radar technology with localized design, aiming to proactively prevent speeding and significantly enhance traffic safety in communities, school areas and accident-prone sections in South Korea. It is an ideal solution for building a smart and friendly traffic environment.
Product Specification
| Product name: | Korea-Customized Radar Speed Sign |
| Brand Name: | Jinke |
| Place of Origin: | Jiangxi, China |
| Size: | W 500x H 700 mm/ W 600 x H 1200mm/ W 700 x H 1200mm/ customized |
| Material: | Galvanized Steel+led light+ reflective sheeting |
| Measuring Distance: | >200m |
| Display mode: | 2/3-digit LED Display(optionally) |
| Power Supply: | Solar battery or main power |
| Work temperature: | -20 ℃-+ 70 ℃ |
| LED color: | RED/GREEN |
| Measurement Range From | 1-199km/h |
| Accuracy: | ±1 KM/H(MPH) |
Product Features
1. High-precision radar speed measurement
It adopts a high-performance radar module to accurately capture and display the vehicle speed in real time.
2. Customized Korean slogans
Customized warning statements can be made according to needs and other requirements.
3. Active Visual Warning
When a vehicle exceeds the speed limit, the speed number will change color, giving the driver a strong visual impact and prompting them to slow down voluntarily.
4. Durable and sturdy, operating all day long
With a high protection level and wide-temperature operation design, it can easily cope with the diverse climatic conditions in South Korea, ensuring the stable operation of the equipment throughout the year
5. Energy conservation and environmental protection
It can be equipped with solar power as the main power supply mode, which is flexible to install, does not require wiring, and is energy-saving and environmentally friendly.

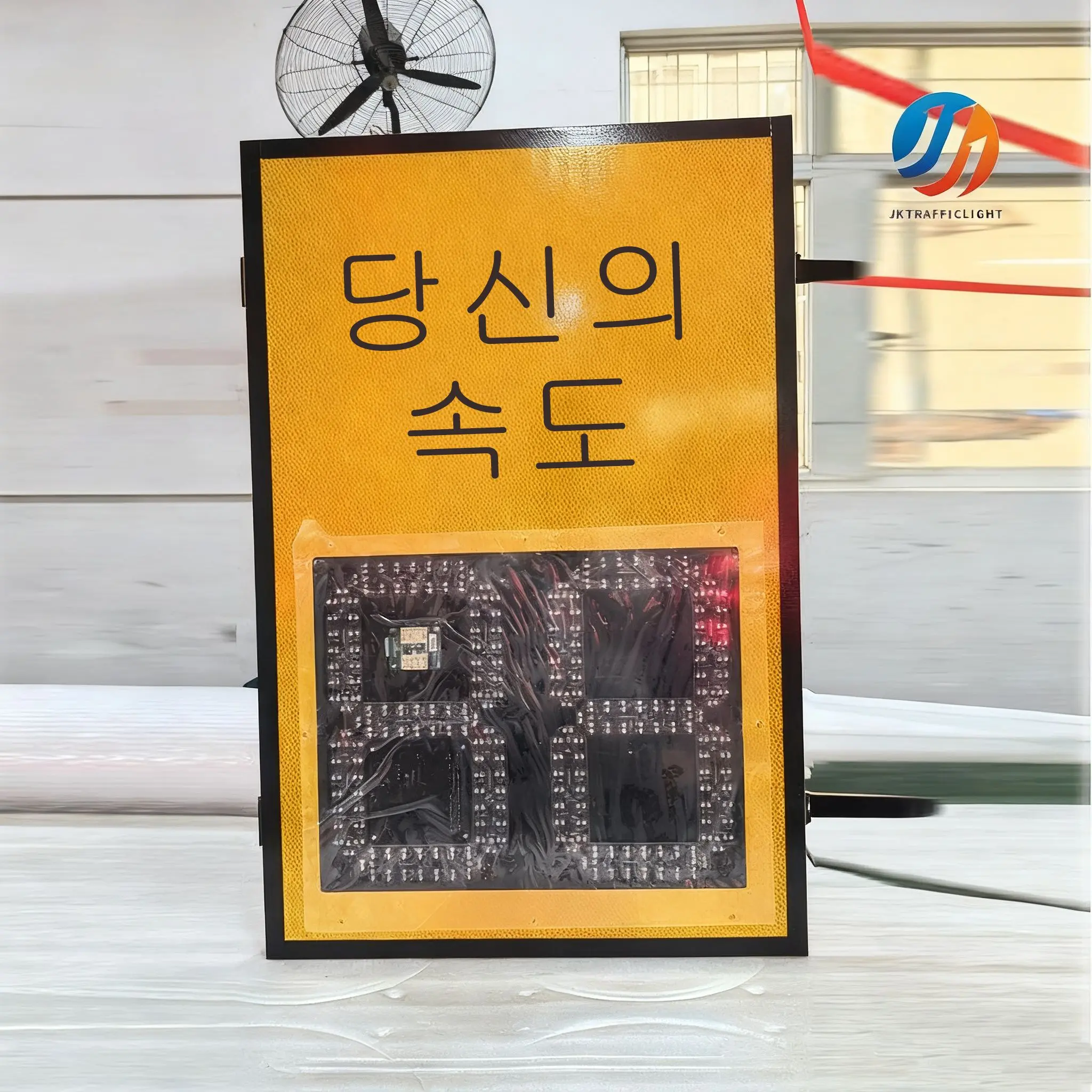

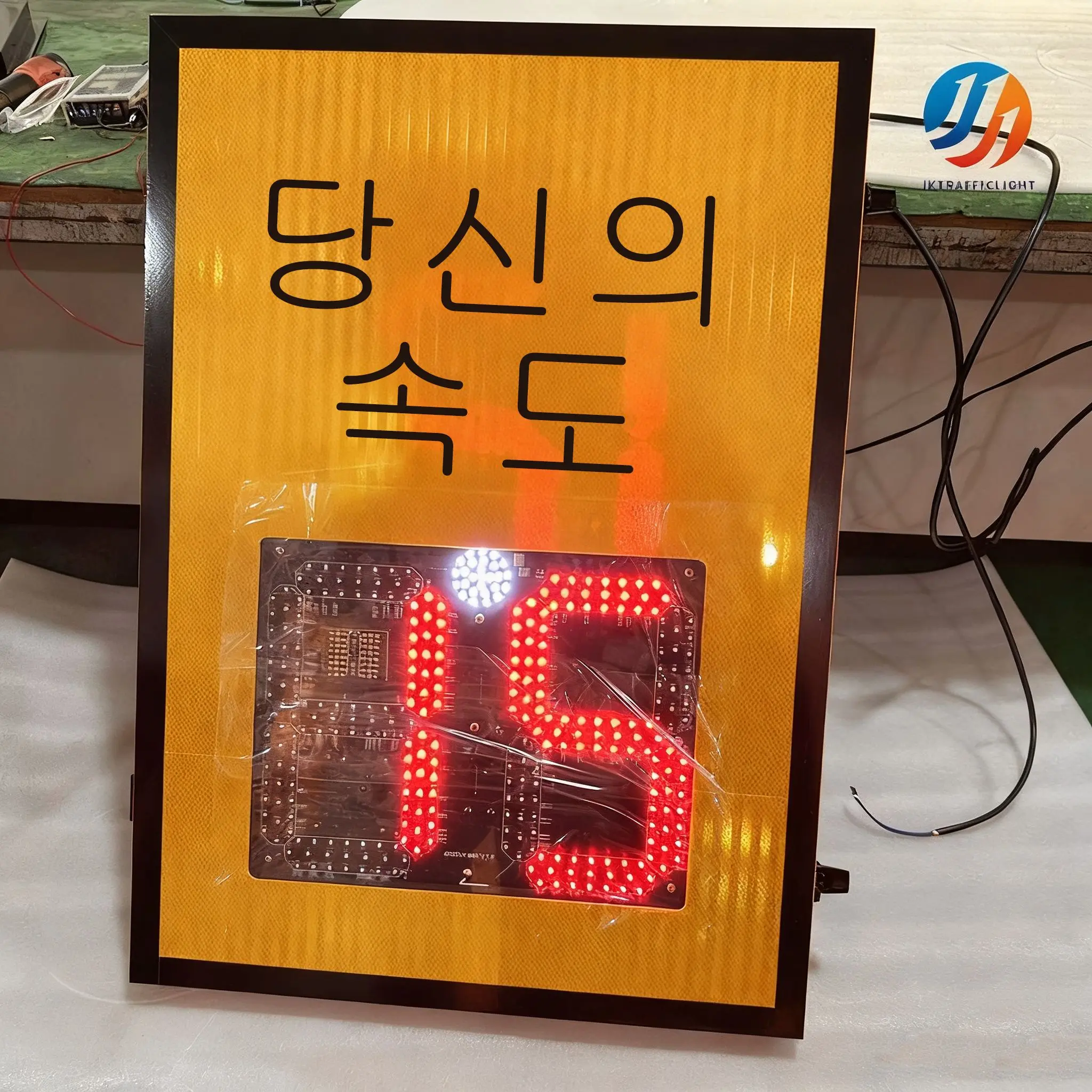

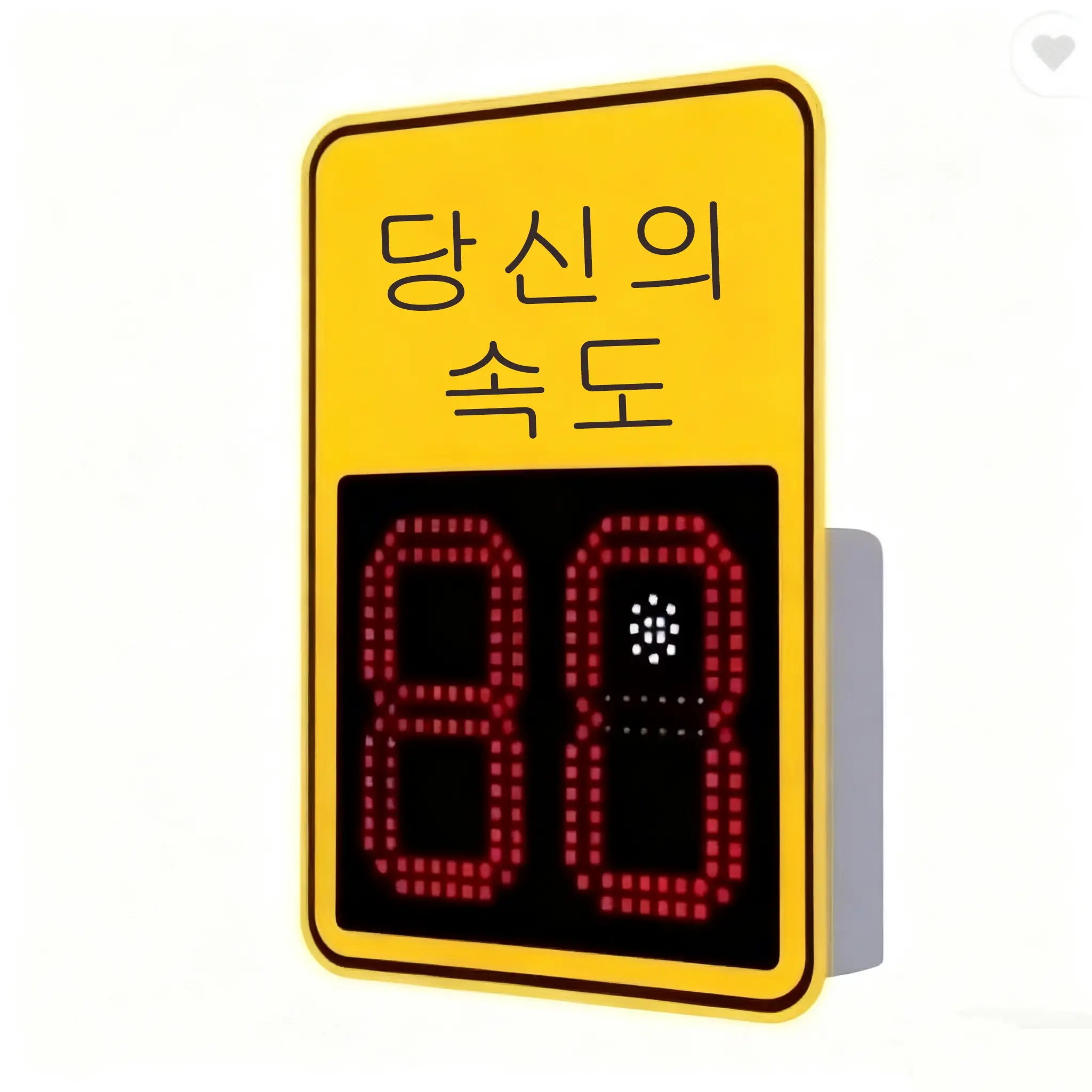

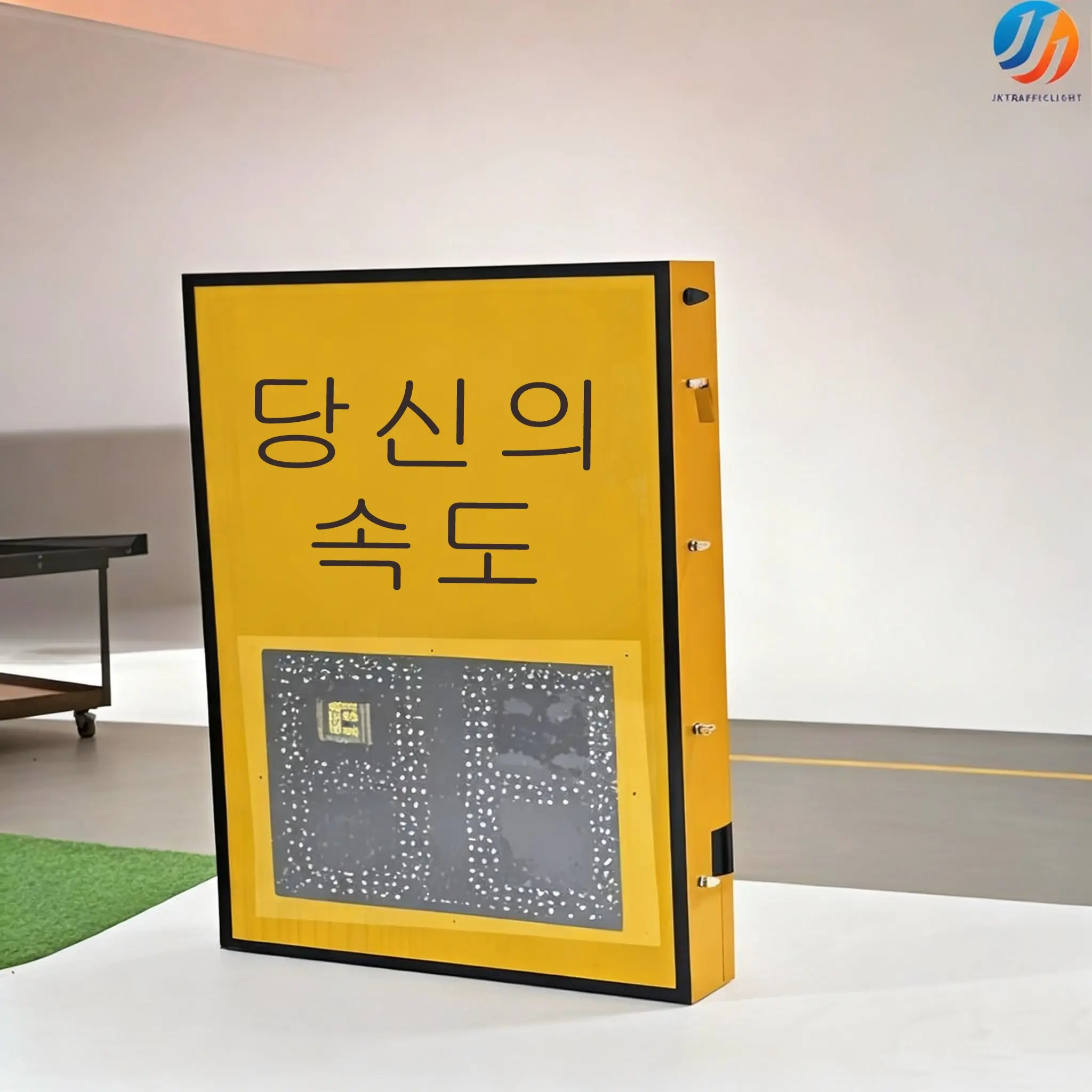

Detailed images
Installation and maintenance
1.Install the equipment on sections where drivers need to be reminded to slow down, such as 150 to 200 meters ahead of schools, residential areas, and construction zones.
2. Ensure that the road ahead of the installation point is straight and there are no large obstacles (such as billboards, dense trees) blocking the radar beam range.
3. Installation with clamps: The back is equipped with multiple aluminum sliding grooves. The speed measurement display screen is tightly clamped onto the vertical pole with clamps, ensuring structural stability.
4. Adjust the Angle
Radar orientation: Adjust the radar's emission direction so that it is directly facing the oncoming vehicle direction and remains parallel to the road centerline.
Display screen Angle: Fine-tune the display screen Angle so that it faces the direction that is most easily observable by the driver's line of sight
Product Packaging
Frequently Asked Questions (FAQ)
Q1: Do you accept OEM?
A1: Yes. We accept producing products under Clients' brands.
Q2: Do I need a professional for installation?
A2: No need. Product design is simple, easy to install, users can install themselves according to the instructions.
Q3: Does the product support customization?
A3: Yes, we can customize the size, brightness, flicker mode and other parameters according to customer requirements.
