Solar Powered Vehicle Speed Feedback Sign Radar Speed Detector with Smiling and Crying Face
Product Introduction

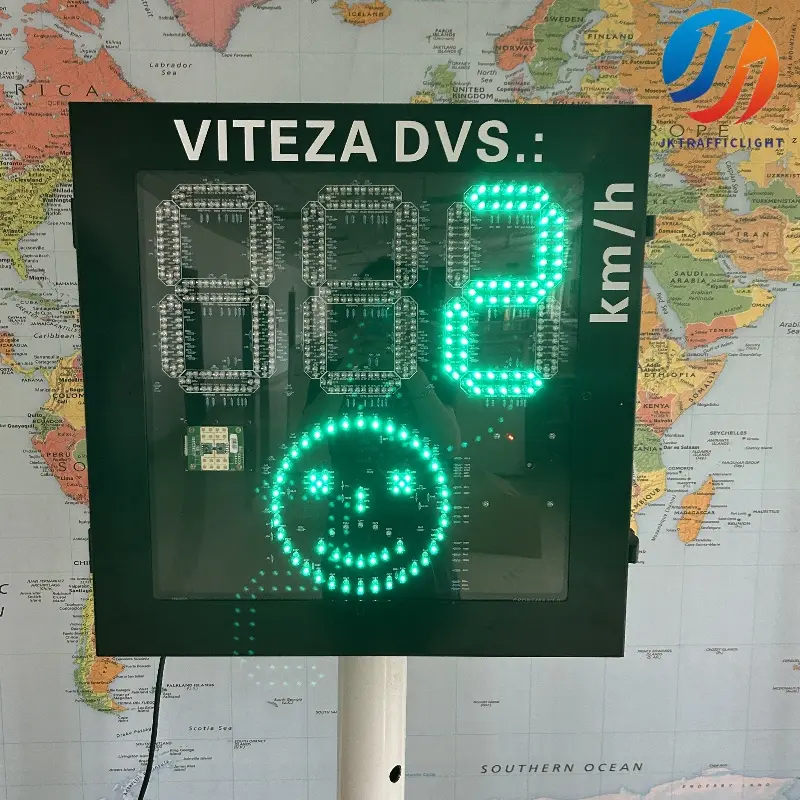

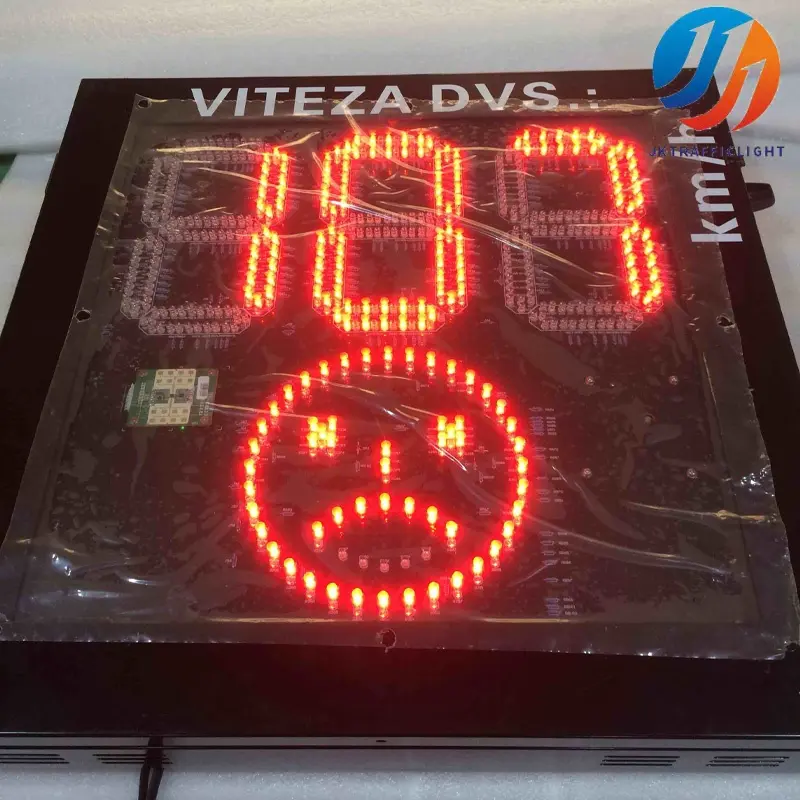

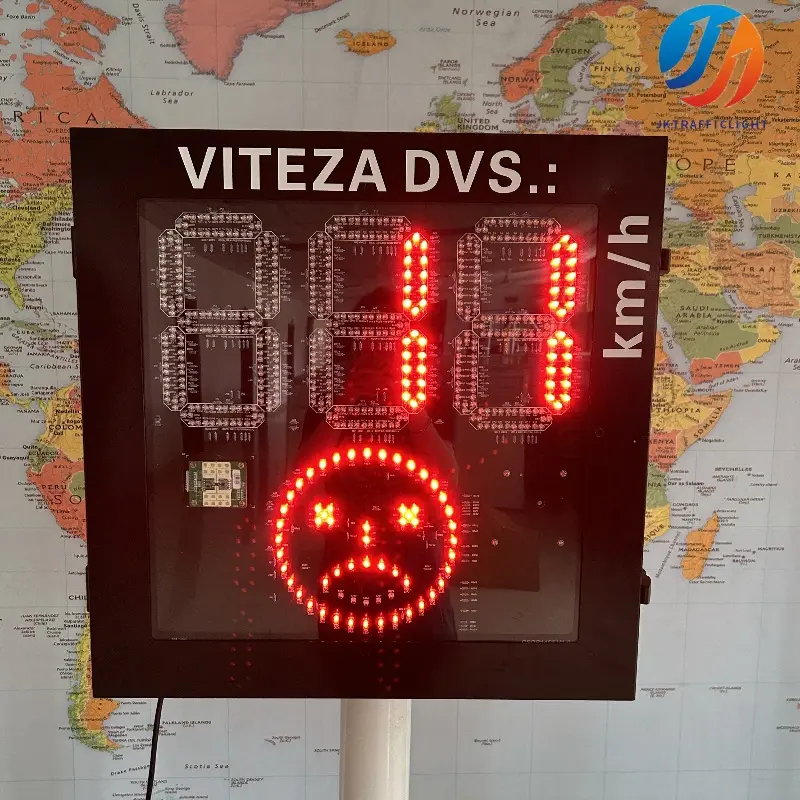

The speed measurement device specially designed for road safety management displays the vehicle speed in real time and guides driving behavior through dynamic expressions. When the vehicle speed exceeds the set limit, the screen warns of speeding with a red number and a crying face. Within the safe speed limit, a green number and a smiling face are displayed to enhance positive feedback and significantly increase the driver's willingness to slow down voluntarily. It is applicable to sensitive sections such as schools, hospitals, residential areas and construction zones, upgrading passive law enforcement to active behavioral intervention and reducing the accident rate by more than 30%
Product Specification
| Product name: | Solar LED Radar Speed Sign |
| Brand Name: | Jinke |
| Place of Origin: | Jiangxi, China |

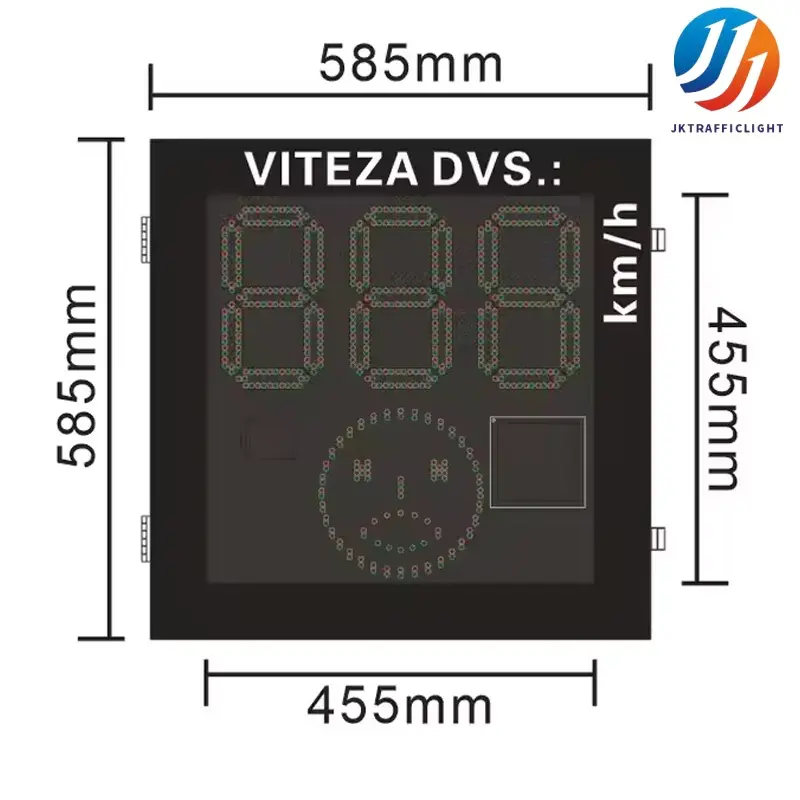

| Size: | W 585x H 455 mm/ customized |
| Material: | Galvanized Steel+led light+ reflective sheeting |
| Measuring Distance: | >150m |
| Display mode: | 3-digit LED Display(optionally) |
| Power Supply: | Solar battery or main power |
| Work temperature: | -20 ℃-+ 70 ℃ |
| Pixel Construction: | RED+GREEN |
| Measurement Range From | 1-199km/h |
| Speed Radar Frequency: | 24.15GHz |
Product Features
This device takes "emotional warning + precise speed measurement + flexible deployment" as its core, mainly using the principles of behavioral psychology to enhance road safety, especially to reduce speeding behavior. It is the preferred solution for improving active road safety.
🔋 This product has safety benefits and environmental advantages
Reduce speeding on dangerous sections of roads and enhance the safety of pedestrians around schools and hospitals.
Energy conservation and low carbon: Solar power supply reduces carbon emissions and is in line with the trend of green transportation.
🌍 Core application scenarios
High-risk sections: curves, tunnel entrances, Bridges, construction areas, providing immediate warnings for speeding vehicles.
Residential areas: Around schools, hospitals and residential areas, strengthen the "Slow Down" visual reminder.
Enterprise/factory area: Vehicle speed control in mines, docks, and logistics parks.
💎 This is what you can achieve by using this radar speed signs with a crying /smile face:
Utilize emotional feedback (encouraging with a smiling face/blaming with a crying face) to attract the driver's attention, enhance the driver's speed awareness, effectively guide the driver to voluntarily slow down, and cultivate safe driving habits in specific areas.

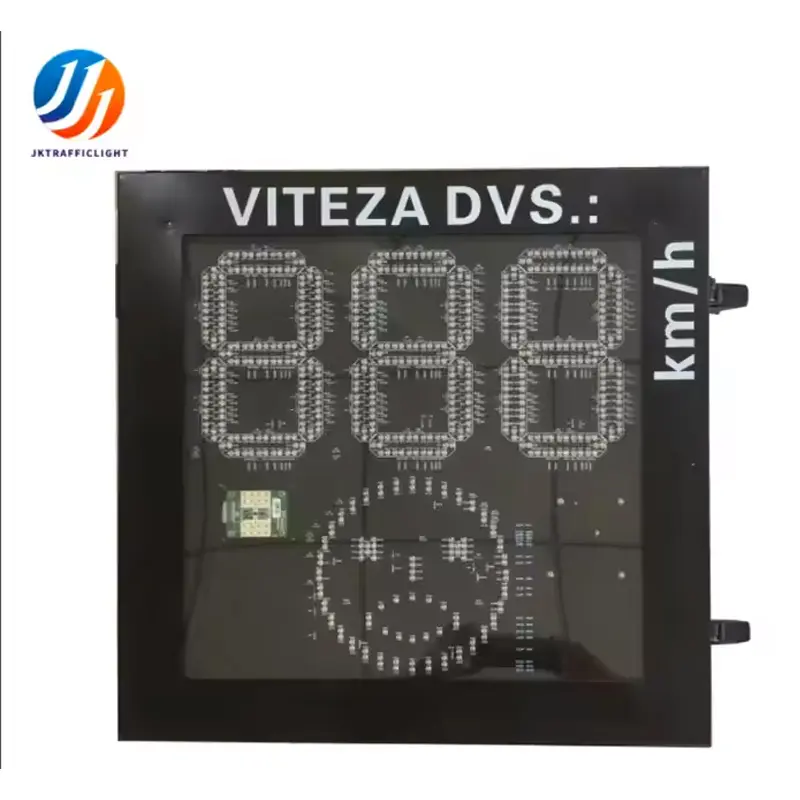

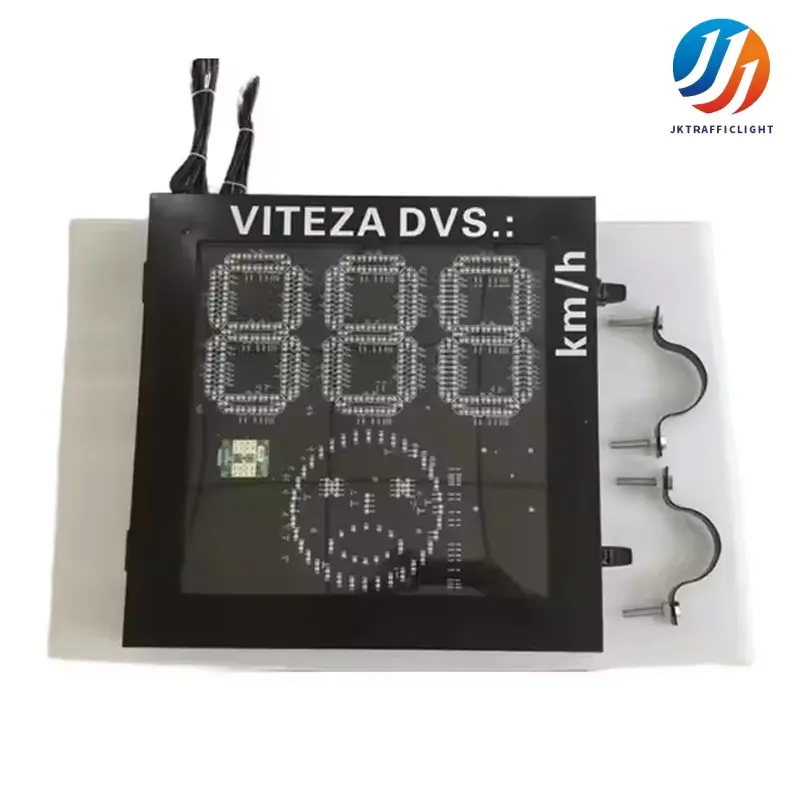

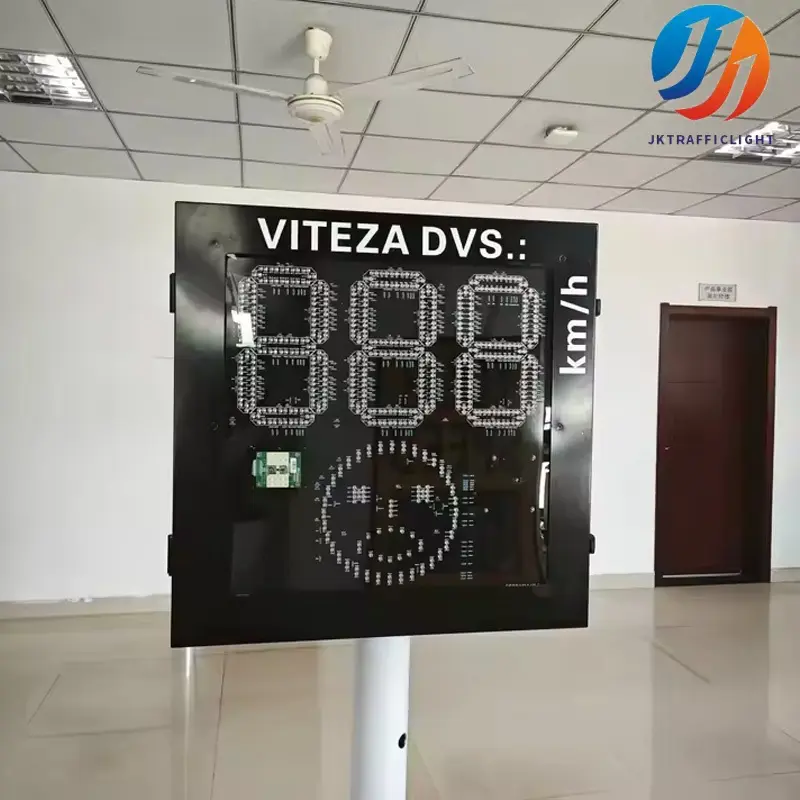

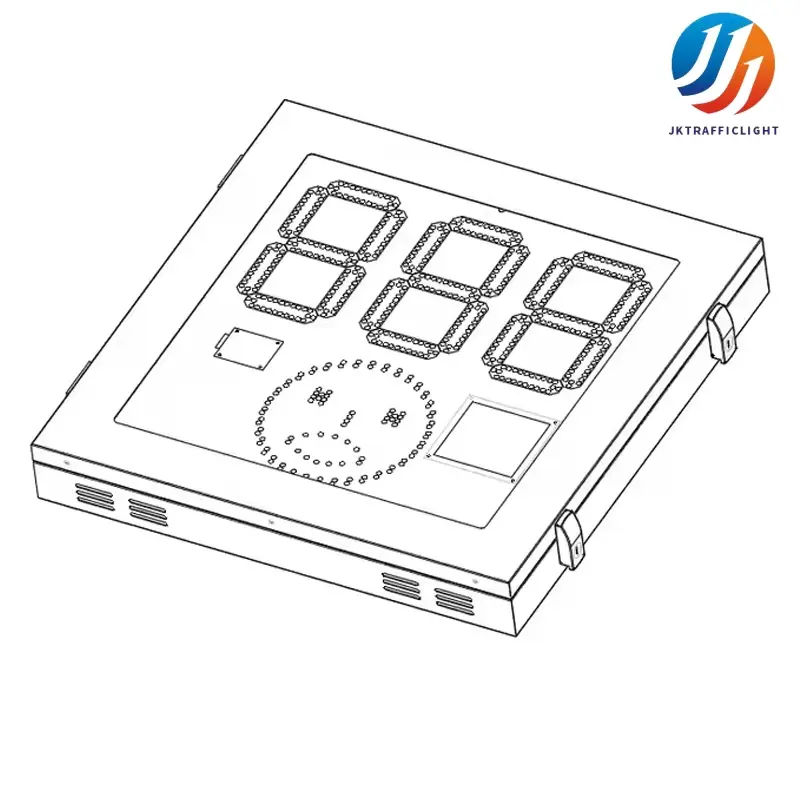

Detailed images
Installation and maintenance
1) Signboard installation angle: According to the installation specifications of road traffic signs and markings, signboards shall be installed as shown in the drawings.On that the included angle between the signboard and the road vertical line is set to be 0-10 degrees.
2) Radar installation angle: Since the radar is located on the digital display of the signboard, during actual installation,The angle of that signboard can be adjusted, namely the radar angle is adjusted.
Instructions
Butt-joint a round hole outlet joint of that solar panel with an input joint of the signboard;
Turn on the solar energy output switch;
Complete the parameter configuration through the traffic facility configuration tool APP.
Product Packaging
Frequently Asked Questions (FAQ)
Q1: Do you accept OEM?
A1: Yes. We accept producing products under Clients' brands.
Q2: Do I need a professional for installation?
A2: No need. Product design is simple, easy to install, users can install themselves according to the instructions.
Q3: Does the product support customization?
A3: Yes, we can customize the size, brightness, flicker mode and other parameters according to customer requirements.
