Smile/Sad Face Radar Speed Sign Solar LED Radar Speed Measurement

Real-time speed feedback and facial warning
Through the radar technology real-time detection of vehicle speed, the red crying face is displayed when speeding, and the normal speed is lit up with a green smiley face, intuitively reminding the driver to adjust the speed.
Support dynamic display of the speed limit value compared with the actual speed to improve the driver's willingness to comply.

Multi-mode power supply and stability
It can use solar energy, alternating current, direct current or battery power supply, and can work continuously for 7-10 days on rainy days, adapting to areas without grid coverage.
All-weather working design, strong environmental adaptability, operating temperature range covers -15°C to +60°C.

product details

Product Introduction

Smiley face radar speed sign is an intelligent traffic device based on radar speed measurement technology and emotional feedback, real-time monitoring of vehicle speed and dynamic expression (smiley face/crying face) intuitive prompt drivers to adjust the speed, effectively reduce the risk of speeding, improve road safety. It supports solar power supply, multi-scene installation, and data linkage capturing, and is widely used in speed limit areas such as schools, residential areas, and curves.

Product Specification

Product name:	Smile/cry Face radar Speed Sign
Brand Name:	Jinke
Place of Origin:	Jiangxi, China
Size:	W 600x H 900 mm/ W 800 x H 1500mm/ customized
Material:	Galvanized Steel+led light+ reflective sheeting
Measuring Distance:	>150m
Display mode:	2/3-digit LED Display(optionally)
Power Supply:	Solar battery or main power
Work temperature:	-20 ℃-+ 70 ℃
Pixel Construction:	RED+GREEN
Measurement Range From	1-199km/h
Speed Radar Frequency:	24.15GHz

Product Features

Selected quality materials:

durable metal housing,Strong sealing, waterproof and dustproof,All-day real-time detection,It can work normally in all kinds of bad weather,Strong environmental adaptability, not affected by weather, light intensity, performance is more stable.

Strong speed measurement function:

real-time detection of vehicle speed through radar technology, accurate record of speeding behavior. Radar speed measurement, sensitive detection range up to 200 meters.

Expression feedback:

Display different expressions (smiling face, crying face) according to the speed:

Green smiling face: normal speed, give positive encouragement;

Red crying face: Remind to slow down when speeding.

Customizable Design

Provide customization services that allow users to customize materials, sizes, colors, etc., to meet specific needs. Customized logo, Customized packaging, Graphic customization all supported

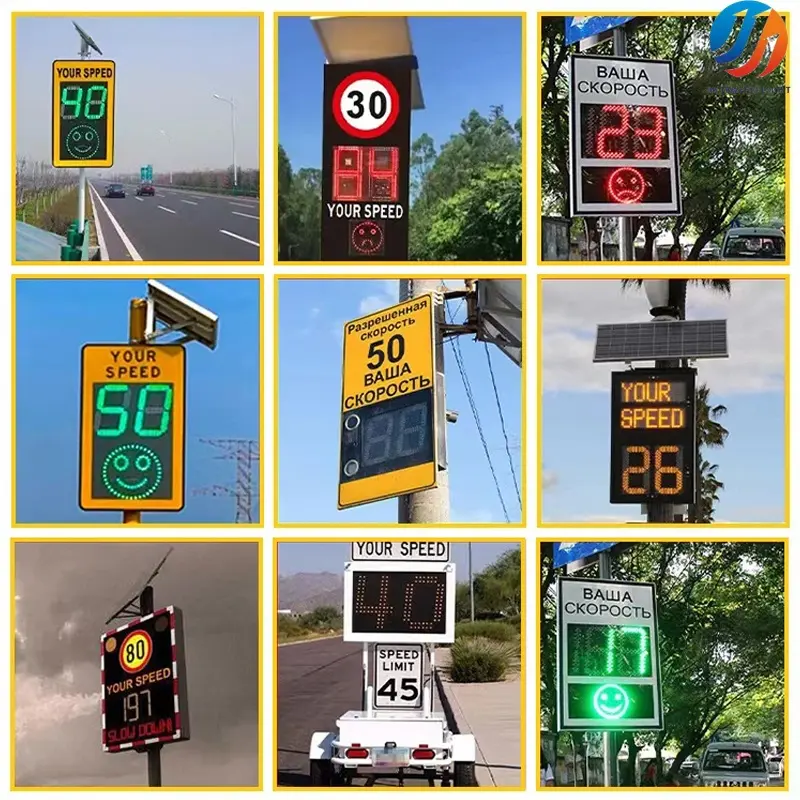

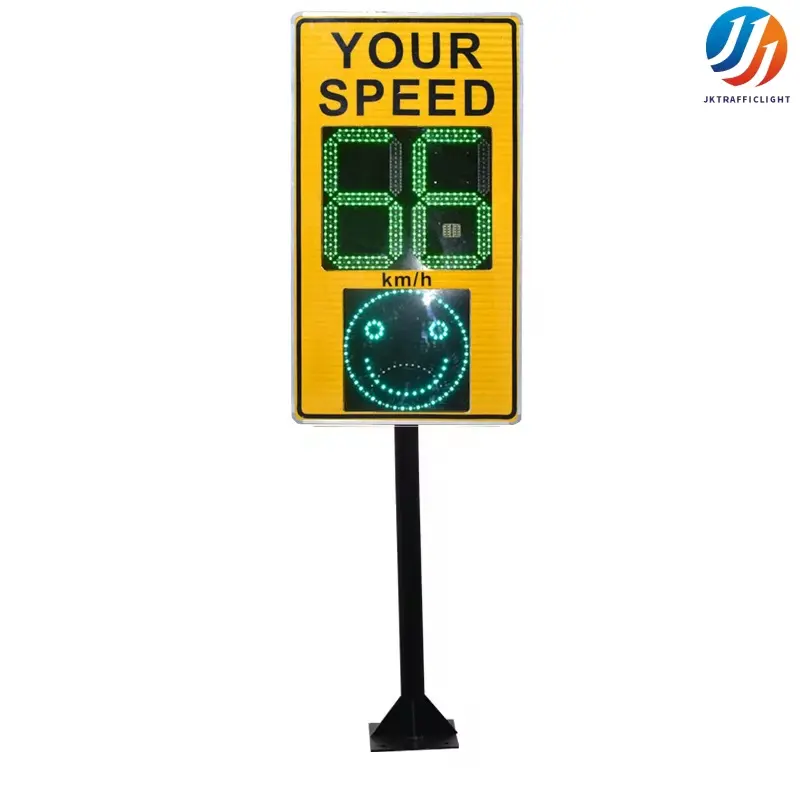

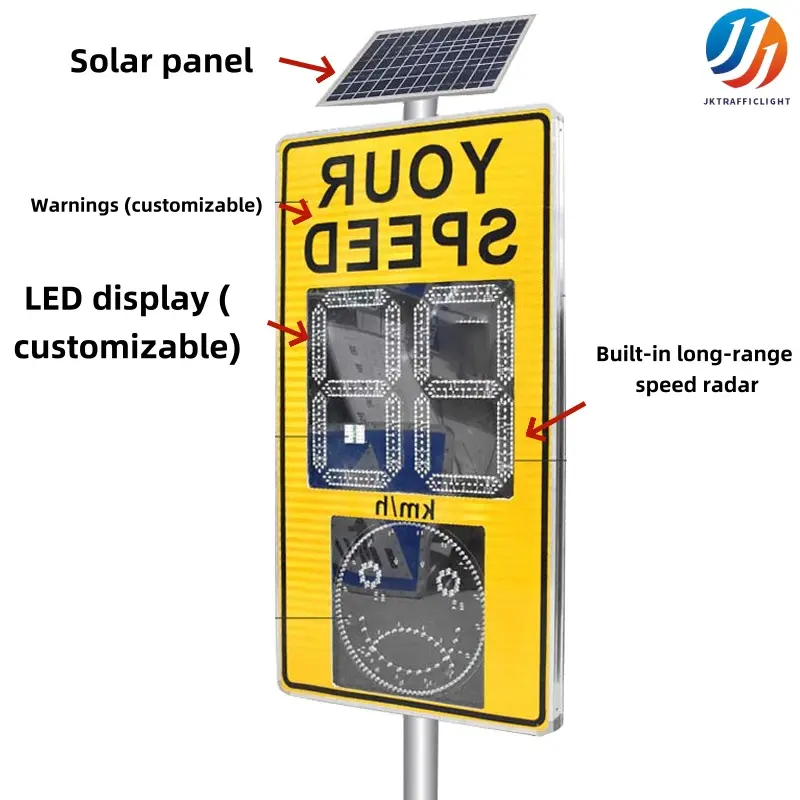

Detailed images

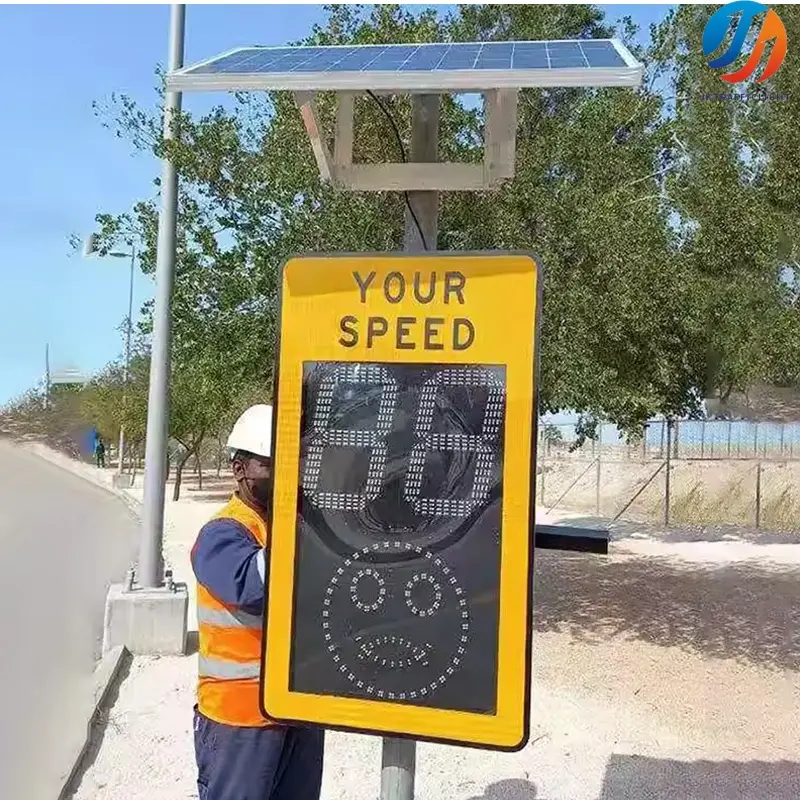

Installation and maintenance

1) Signboard installation angle: according to the installation specifications of road traffic signs and markings, signboards shall be installed as shown in the drawings.On that the included angle between the signboard and the road vertical line is set to be 0-10 degrees.

2) Radar installation angle: Since the radar is located on the digital display of the signboard, during actual installation,The angle of that signboard can be adjusted, namely the radar angle is adjusted.

Instructions

Butt-joint a round hole outlet joint of that solar panel with an input joint of the signboard;

Turn on the solar energy output switch;

Complete the parameter configuration through the traffic facility configuration tool APP.
