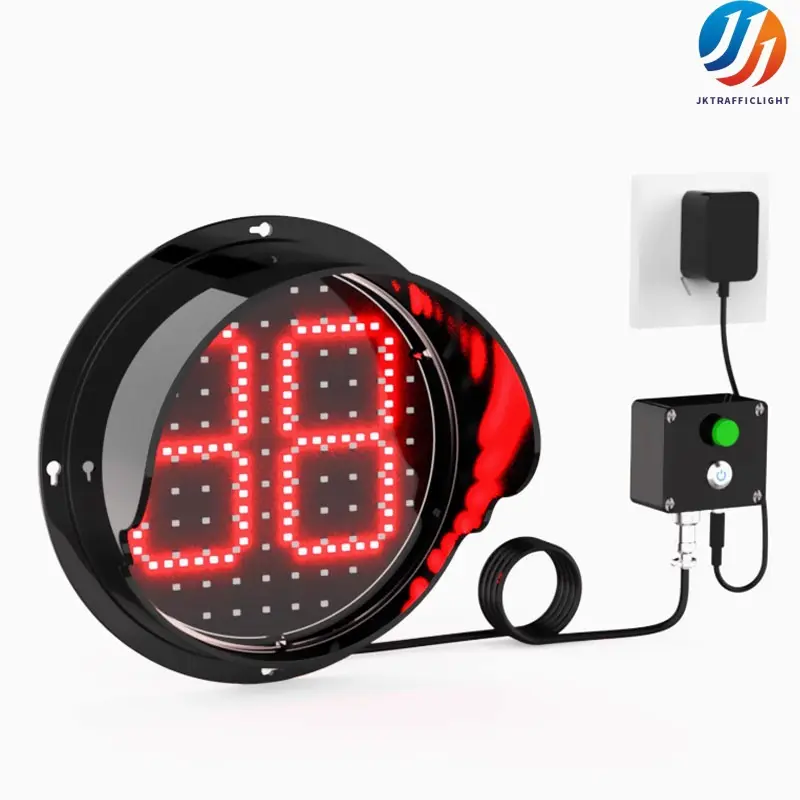

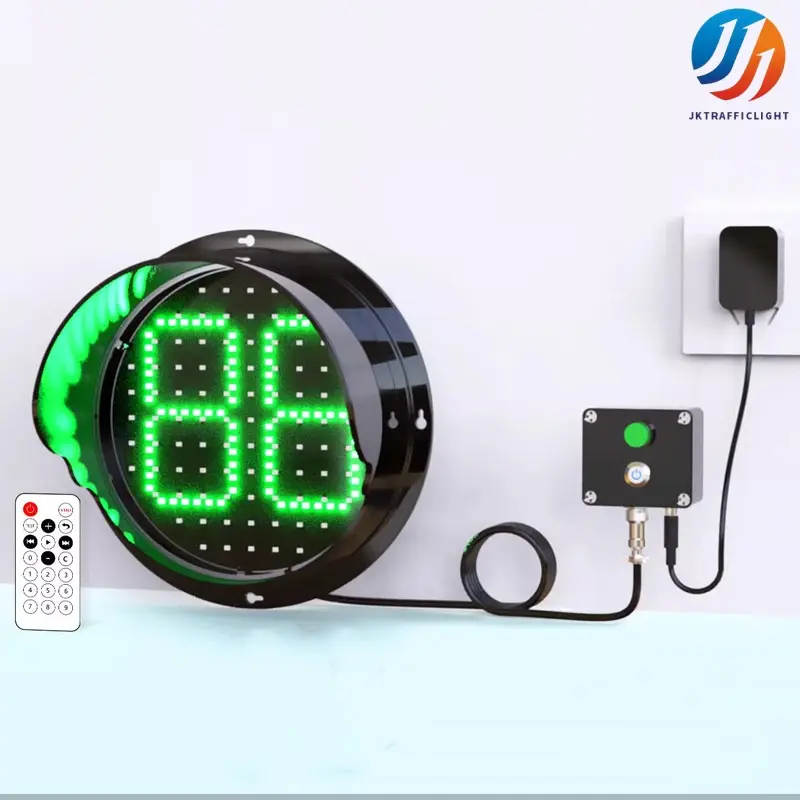

Remote Control Traffic Light Countdown Timer LED signal Light Red Green Warning Light
Product Introduction
Push-button control countdown traffic light is an intelligent traffic signal device combining pedestrian interaction function. The countdown mechanism is triggered by the pedestrian pressing the button to dynamically adjust the traffic light switching time and optimize the pedestrian traffic efficiency at the intersection. Its core function is to reduce the ineffective waiting time of pedestrians through the "demand response" mode, while ensuring the safety of motor vehicles and pedestrians. The product is suitable for schools, hospitals, business districts and other pedestrian flow fluctuations.
Product Specification
| Product name: | Remote Control Countdown Timer LED Traffic Light |
| Brand Name: | Jinke |
| Place of Origin: | Jiangxi, China |

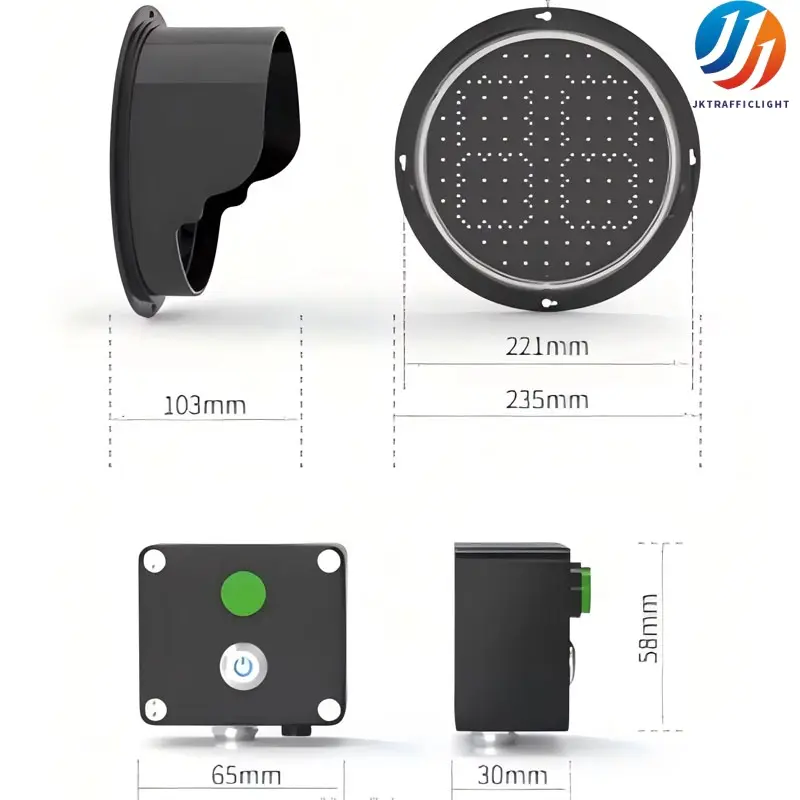

| Diameter: | 221mm/235mm |
| Material: | Polycarbonate (PC) engineering material/Aluminumdie-castmaterial |
| LED Wave length: | Red (625nm) Yellow (590nm) Green (505nm) |
| LED Light Angle: | 30° |
| Power Type: | Constant current |
| Operating Voltage: | DC12~24V,AC175~285V |
| Single Light Rated Power: | ≤5W |
| Voltage | 12V |
| Operating Temperature: | -40℃~80℃ |
| Protection Level: | ≥IP53 |

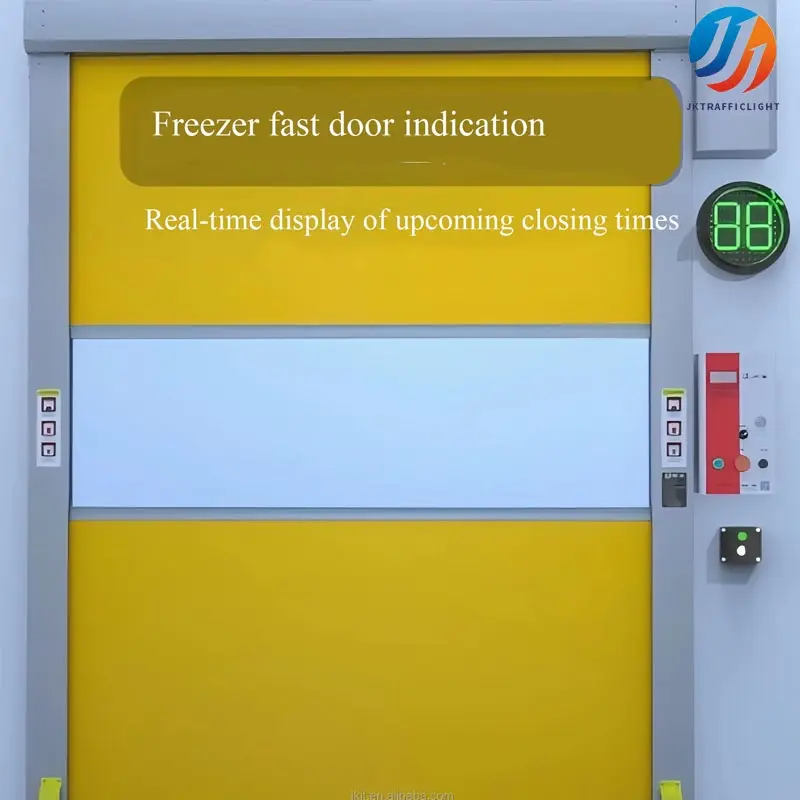

| Application: | City Road, indoors, freezer, parking lot |
| Light Source: | LED |

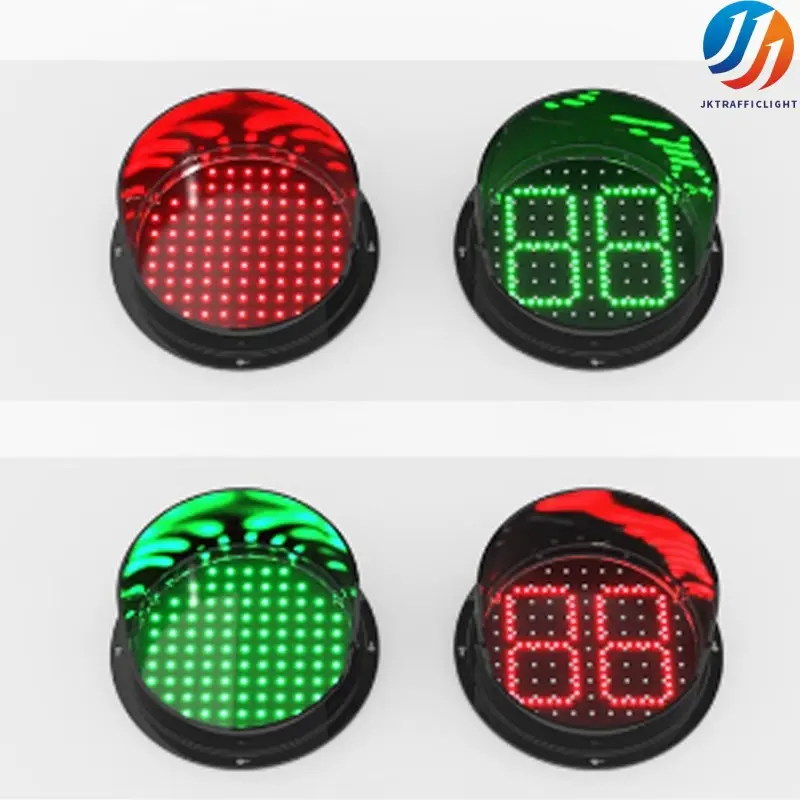

| Emitting Color: | Red/Green/ Yellow |
| View Distance: | ＞100m |
Product Features
1. Improve pedestrian efficiency
Through the button trigger mechanism, the ineffective waiting time of pedestrians can be reduced, especially in the low-peak period, which can dynamically shorten the green time of motor vehicles and improve the pedestrian crossing efficiency by more than 30%.
The countdown display is designed with a dynamic progress bar to visually communicate the remaining time and reduce the risk of pedestrians running red lights.
2.Energy saving, environmental protection and long life
Low heat design, reduce heat dissipation, in line with the development trend of green transportation.
3.Environmental adaptability and safety
Resistant to extreme temperature and humidity and bad weather, suitable for coastal, mountain and other climate areas.
Wind-resistant and earthquake-resistant design ensures stable operation of equipment and avoids traffic chaos caused by equipment failure
Detailed images
Installation and maintenance

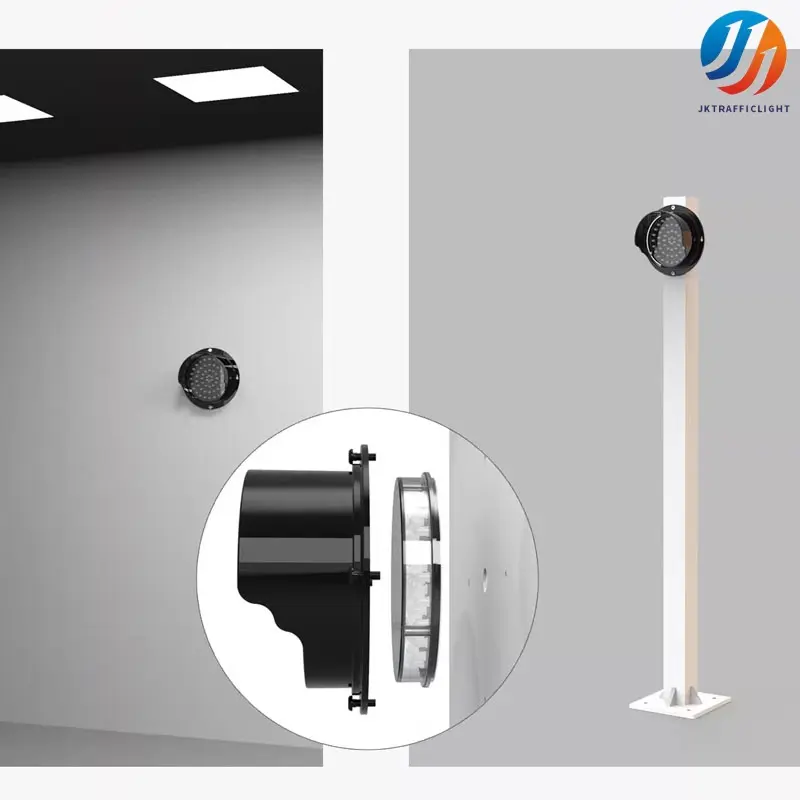

Modular design, support horizontal, vertical or side installation, equipped with quick disassembly structure, easy maintenance; The push-button device is waterproof and dust-proof, suitable for long-term outdoor use.
Product Packaging
Frequently Asked Questions (FAQ)
Q1:Can the traffic light time be set?

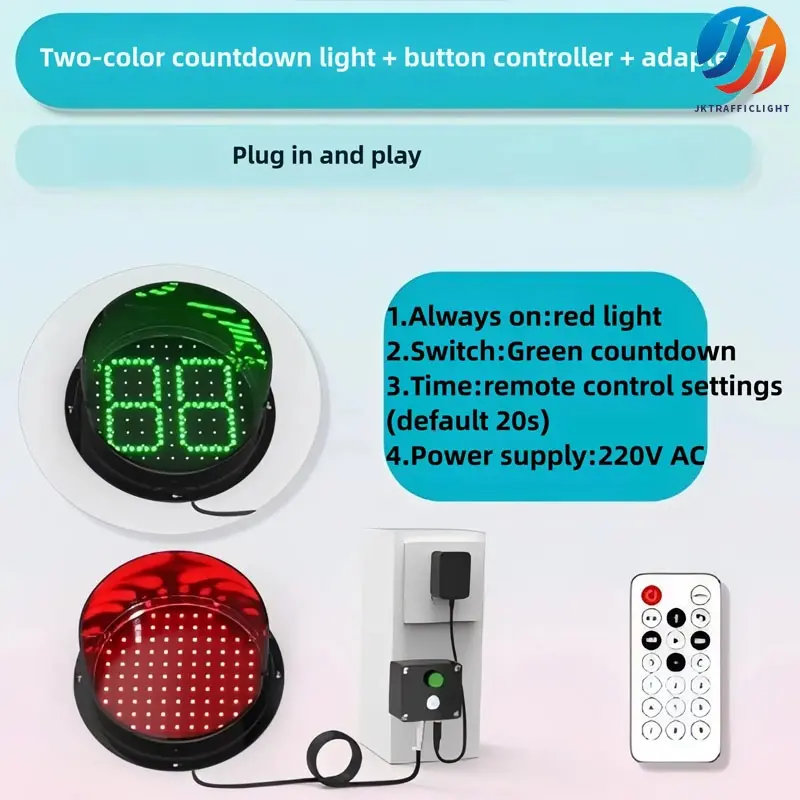

A.Switching the lighting time can be set by remote control, which can be set to 1-99 seconds (dual-8 countdown maximum display 99 seconds)
Q2:Can traffic lights be used outdoors?
A:The traffic light adopts the backside gluing process, which can be waterproof and can be used outdoors. Under outdoor strong light, the visual distance may be reduced
Q3:How far can the traffic lights be seen?
A:When the traffic light is full screen, it is visible above 100 meters, and when the countdown is about 50 meters, it is visible

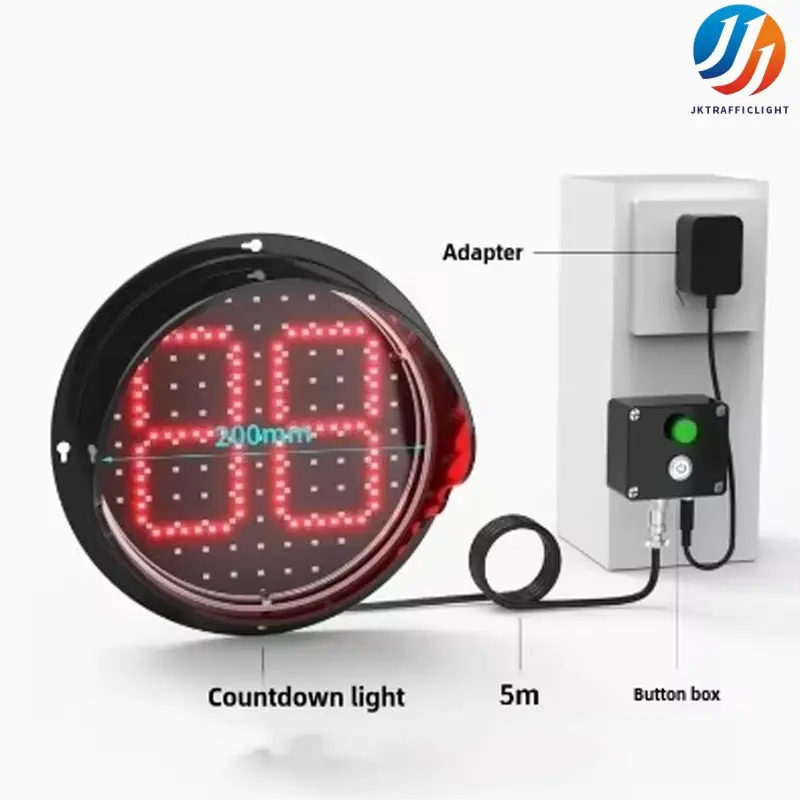

Q4:How to control the traffic lights?
A:Traffic lights are controlled by button by default, and remote control can also be used to customize communication command control, "please consult customer service for details
Q5:How to install traffic lights?
The back of the traffic light is flat and suitable for mounting on a wall or square column. Other installation scenarios may require suitable mounting brackets
