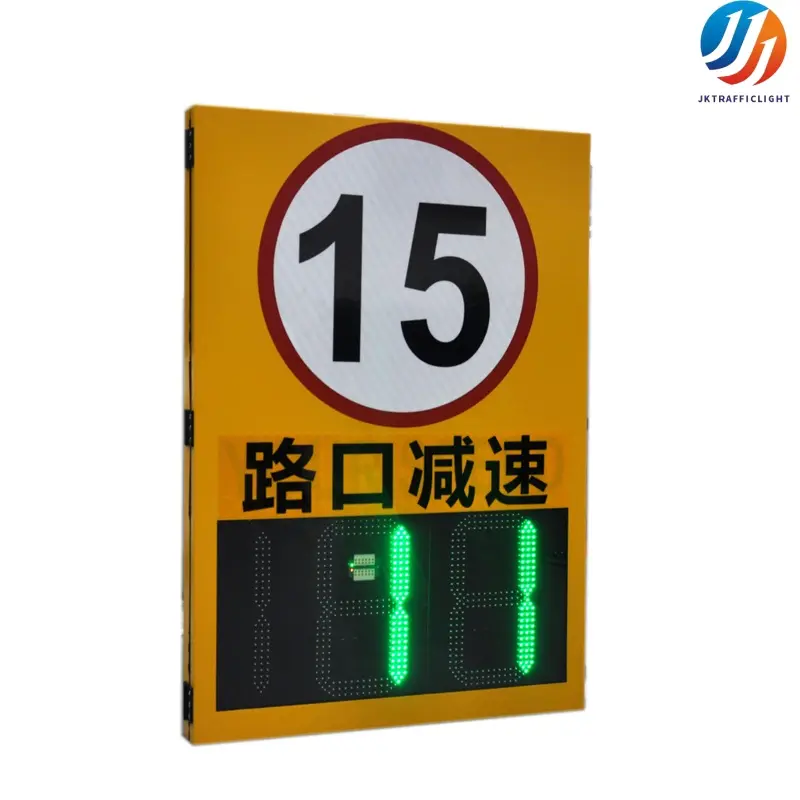

Radar Speed Sign | Accurate Speed Control, Scene Protection Security
Product Introduction
This radar speed measurement screen is a set of radar speed measurement, LED dynamic feedback in one of the intelligent traffic equipment. Through millimeter-wave radar, real-time monitoring of vehicle speed, synchronous display of speed and warning information through the LED screen, while warning drivers to drive safely, reduce the occurrence of traffic accidents.
Product Specification
| Product name: | Solar LED Radar Speed Sign |
| Brand Name: | Jinke |
| Place of Origin: | Jiangxi, China |
| Size: | W 500x H 700 mm/ W 600 x H 1200mm/ W 700 x H 1200mm/ customized |
| Material: | Galvanized Steel+led light+ reflective sheeting |
| RadarDetectionDistance： | 0-200m |
| Display mode: | 2/3-digit LED Display(optionally) |
| Power Supply: | Solar battery or main power |
| Work temperature: | -20 ℃-+ 70 ℃ |
| Pixel Construction: | RED+GREEN |
| RadarSpeedMeasurementRange： | 1-199km/h |
| Speed Radar Frequency： | 24.15GHz |
| RadarMeasurementAccuracy： | ＜2km/h |
Product Features
Accurate radar speed measurement
The 24.15GHz radar accurately measures the speed (±2km/h), accurately captures the speed, and reminds the driver to drive safely
All-weather operation: strong environmental adaptability, not affected by weather, light intensity, etc., more stable performance. At night, rain and fog weather can still work stably.

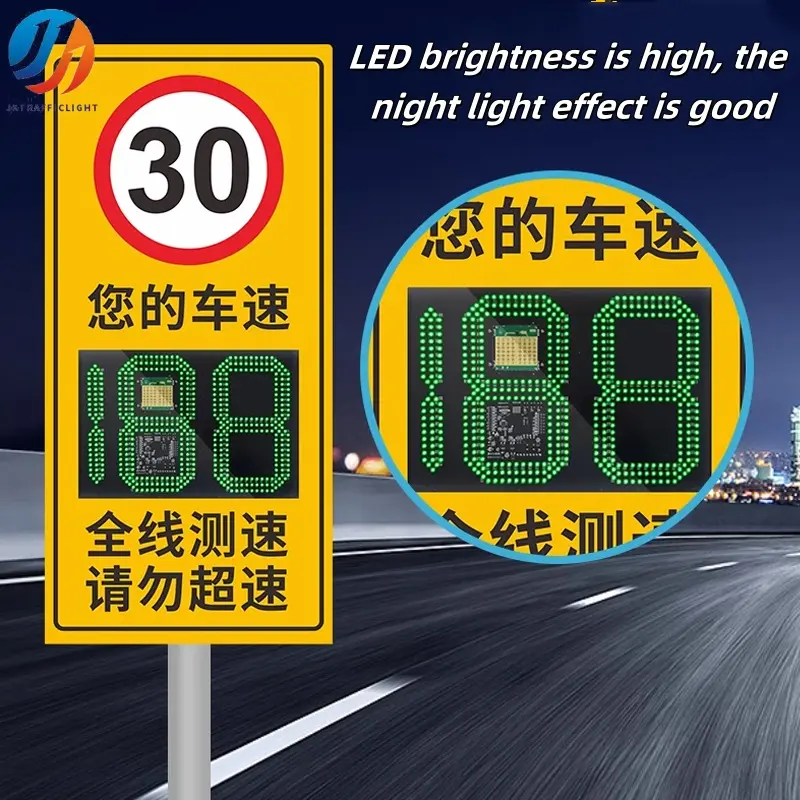

LED dynamic feedback screen
Real-time speed display: The LED screen dynamically displays the real-time speed of the vehicle (such as "speed: 75km/h"), and automatically switches the warning sign when speeding.
Industrial grade durable design
IP68 protection + lightning protection: adapt to the extreme environment of -40℃~85℃, fear no rain, sand and dust.

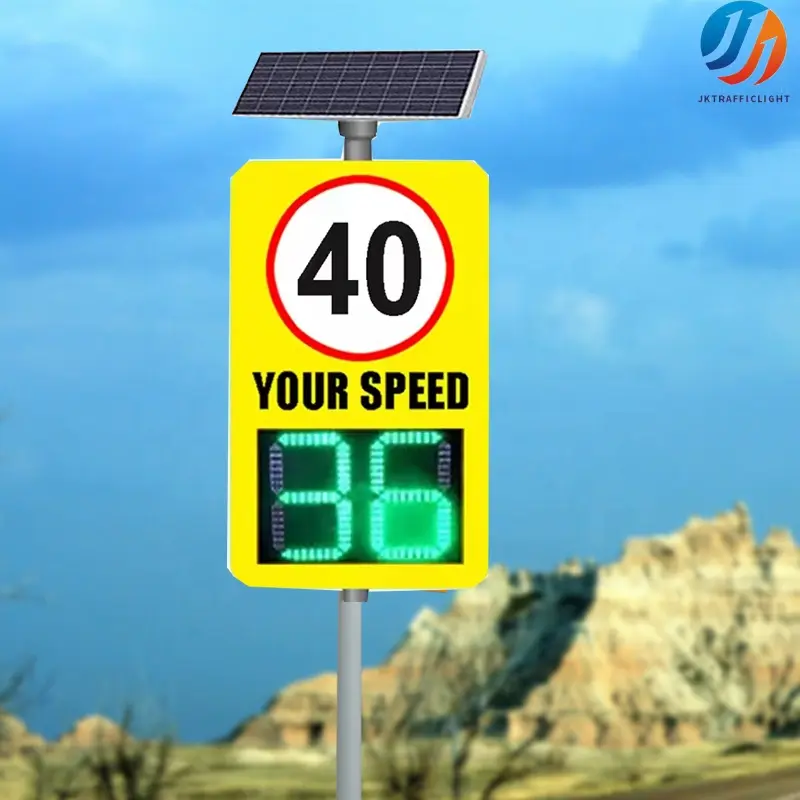

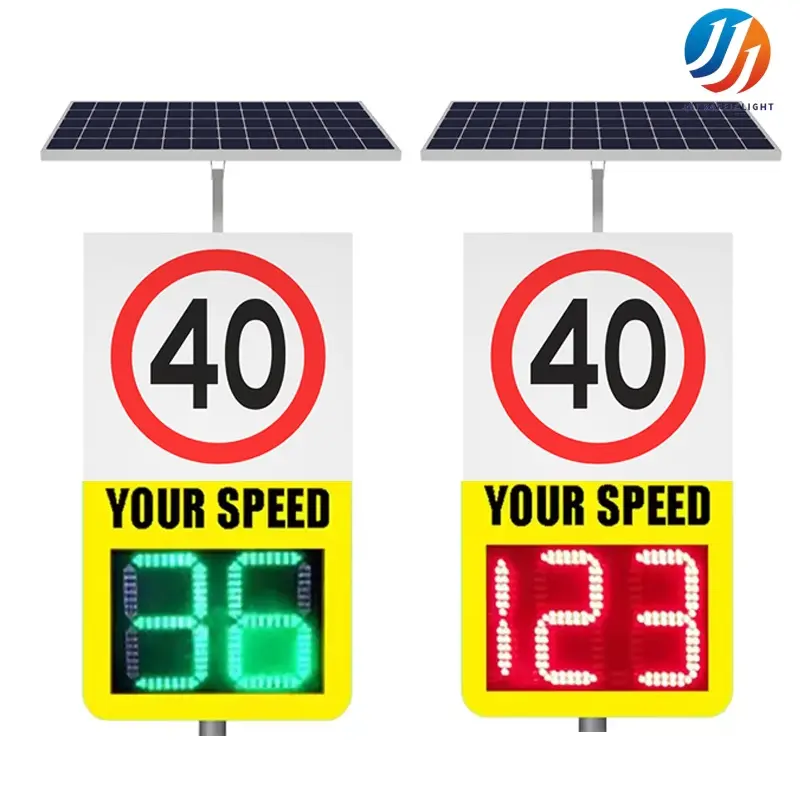

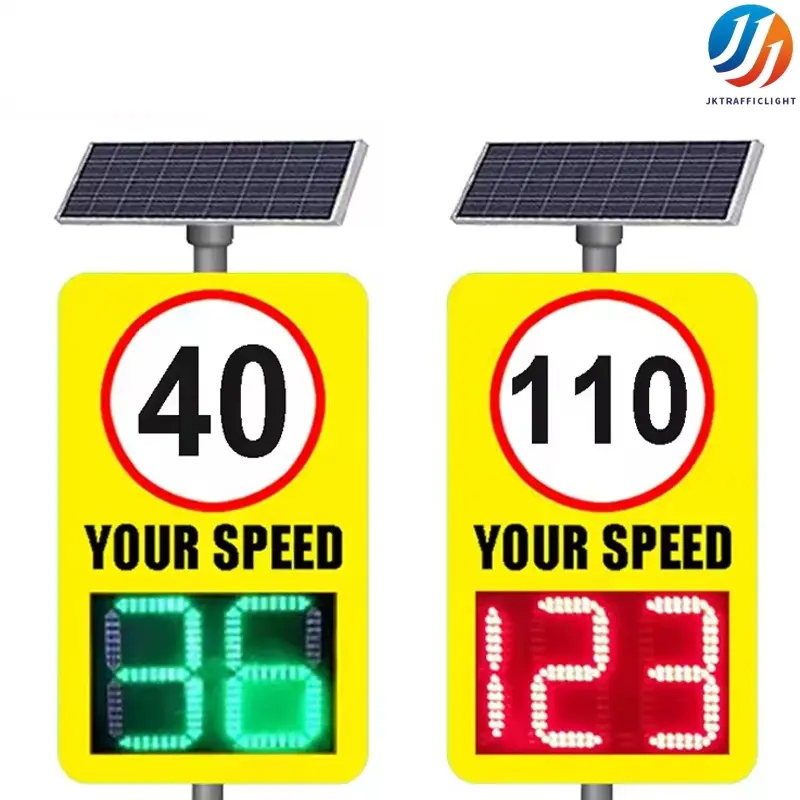

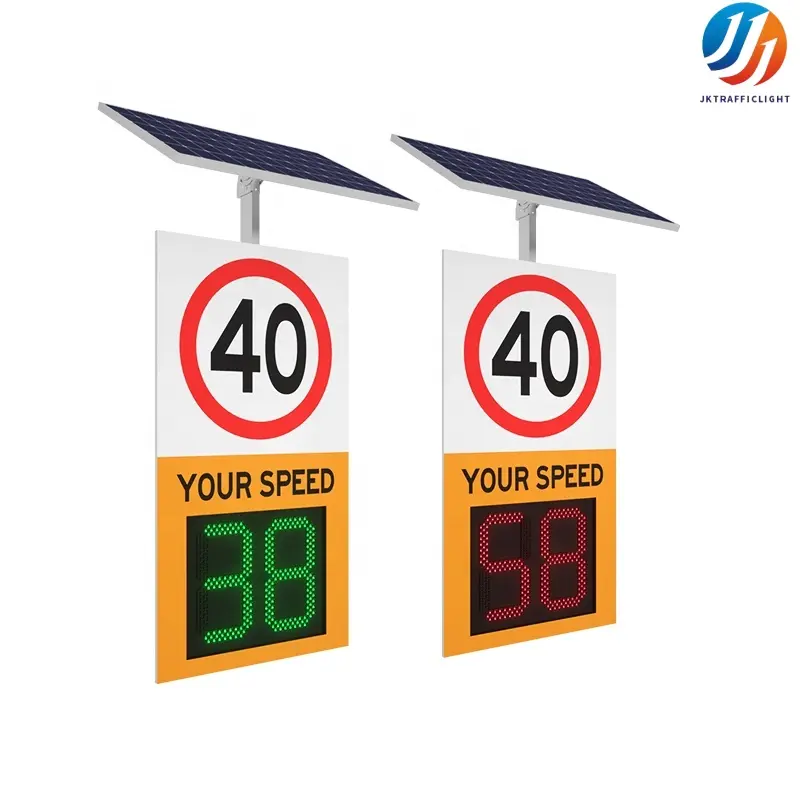

Dual power supply mode: mains + solar panel (customizable)
Accurate Speed Measurement
24ghz microwave radar speed sensor installing in the radar speed sign to measure vehicle speed ,the speed measurement range covers 0-200km/h, the Radar Measurement Accuracy＜2km/h, and it is not affected by the weather (rain, snow and fog), and the operation is stable all weather.
Multi-lane coverage:
Supports single/two-way lane monitoring, with a maximum detection distance of 200 meters.
Suitable For All kinds of Places

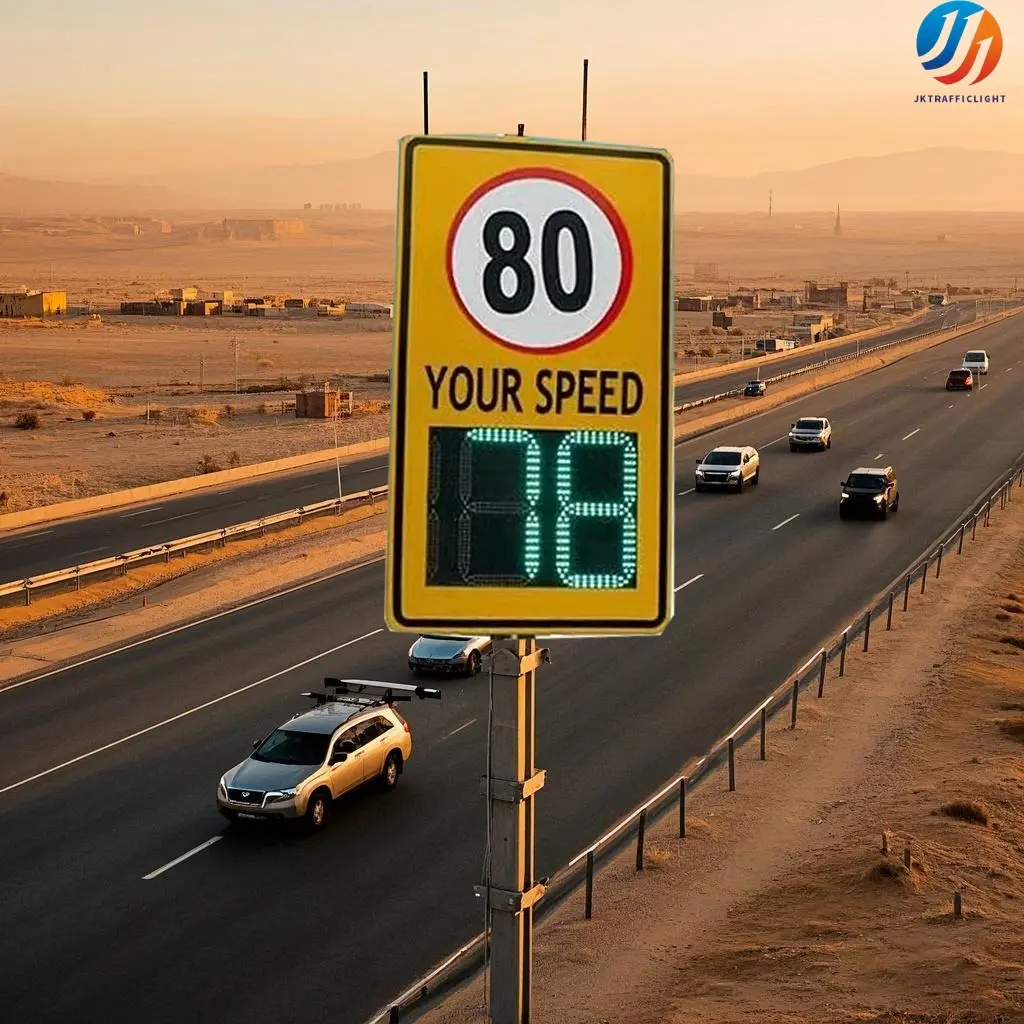

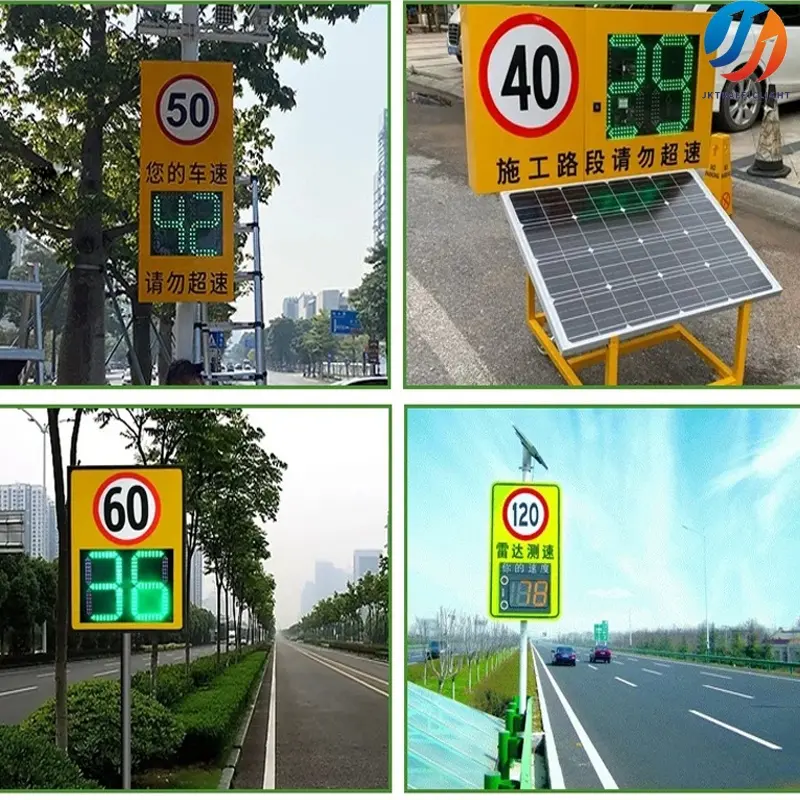

Application scenarios: schools, residential areas, highways, construction sections, parking lots and other areas requiring speed limit management
Detailed images
Installation and maintenance
1) Signboard installation angle: according to the installation specifications of road traffic signs and markings, signboards shall be installed as shown in the drawings.On that the included angle between the signboard and the road vertical line is set to be 0-10 degrees.
2) Radar installation angle: Since the radar is located on the digital display of the signboard, during actual installation,The angle of that signboard can be adjusted, namely the radar angle is adjusted.
Instructions
Butt-joint a round hole outlet joint of that solar panel with an input joint of the signboard;
Turn on the solar energy output switch;
Product Packaging
Frequently Asked Questions (FAQ)
Q1: Do you accept OEM?
A1: Yes. We accept producing products under Clients' brands.
Q2: Do I need a professional for installation?
A2: No need. Product design is simple, easy to install, users can install themselves according to the instructions.
Q3: Does the product support customization?
A3: Yes, we can customize the size, brightness, flicker mode and other parameters according to customer requirements.
