JKA100 Economical Traffic Signal Control Solution

This traffic solution is a cost-effective independent intelligent signal control solution for intersections, featuring easy installation and simple setup. It can effectively enhance the traffic efficiency and safety of individual intersections.

product details

Characteristics of the Solution

This traffic solution is a cost-effective solution for the intelligent management of independent intersections. It features easy installation, simple setup, economic practicality and other characteristics, and can effectively improve the traffic efficiency and safety of individual intersections. Core features

(1) It can meet the needs of most intersections

(2) Economically efficient and with outstanding cost performance. The product prices are more competitive, effectively reducing the project procurement and maintenance costs.

(3) It is equipped with a liquid crystal screen, allowing technicians to operate on site without carrying a computer, which is convenient and worry-free

(4) Simple installation and commissioning: We provide a complete set of installation and commissioning videos and can set the passage plan according to the customer's requirements at the factory.

(5) Notice plans for peak hours, off-peak hours and holidays can be set based on traffic volume to enhance vehicle passage efficiency and reduce congestion.

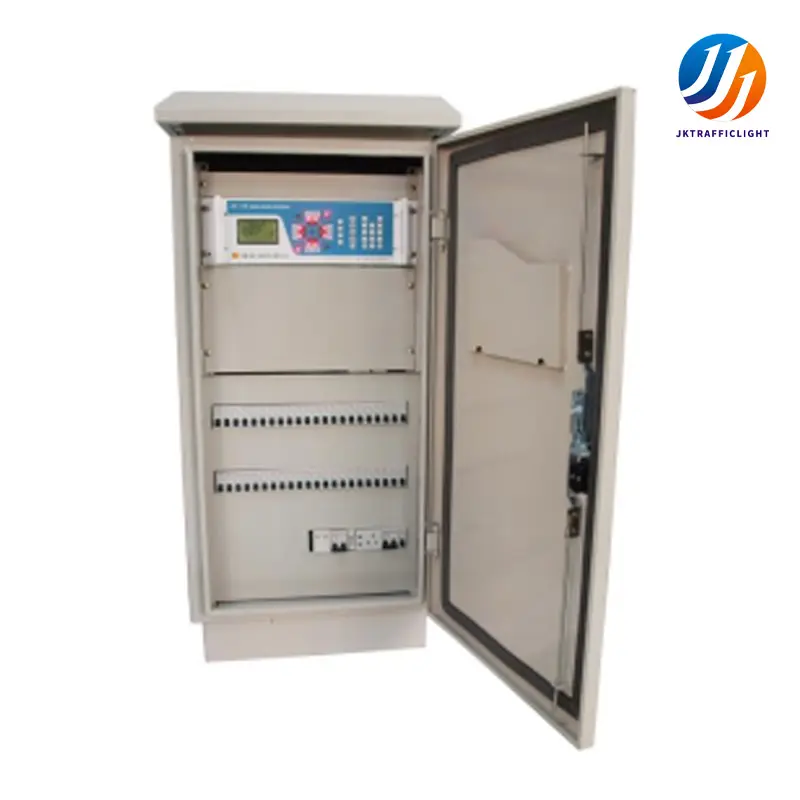

Main Products - Signal Machine Parameters

Brand Name:	Jinke
Place of Origin:	Jiangxi, China
Display form:	LCD screen
Signal output:	It is standardly equipped with 44 signal output channels, and each terminal can bear a load of up to 5A/220AC
Communication interfaces:	It provides RS-232 and RS485 communication interfaces, as well as 10/100MBpS RJ45 Ethernet interface
Yellow flash frequency:	The frequency of the yellow flash signal is 60 times per minute, and the ratio of light to dark is 1:1
Working voltage:	AC176-264V 50±2HZ
Work temperature:	-40 ℃-+ 70 ℃
Working humidity:	≤95%
