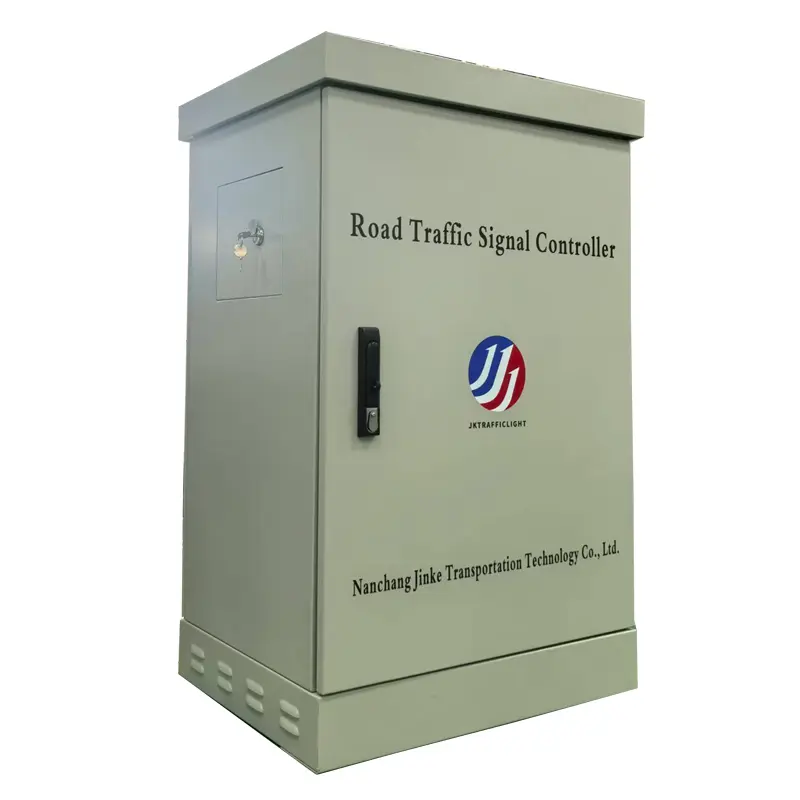

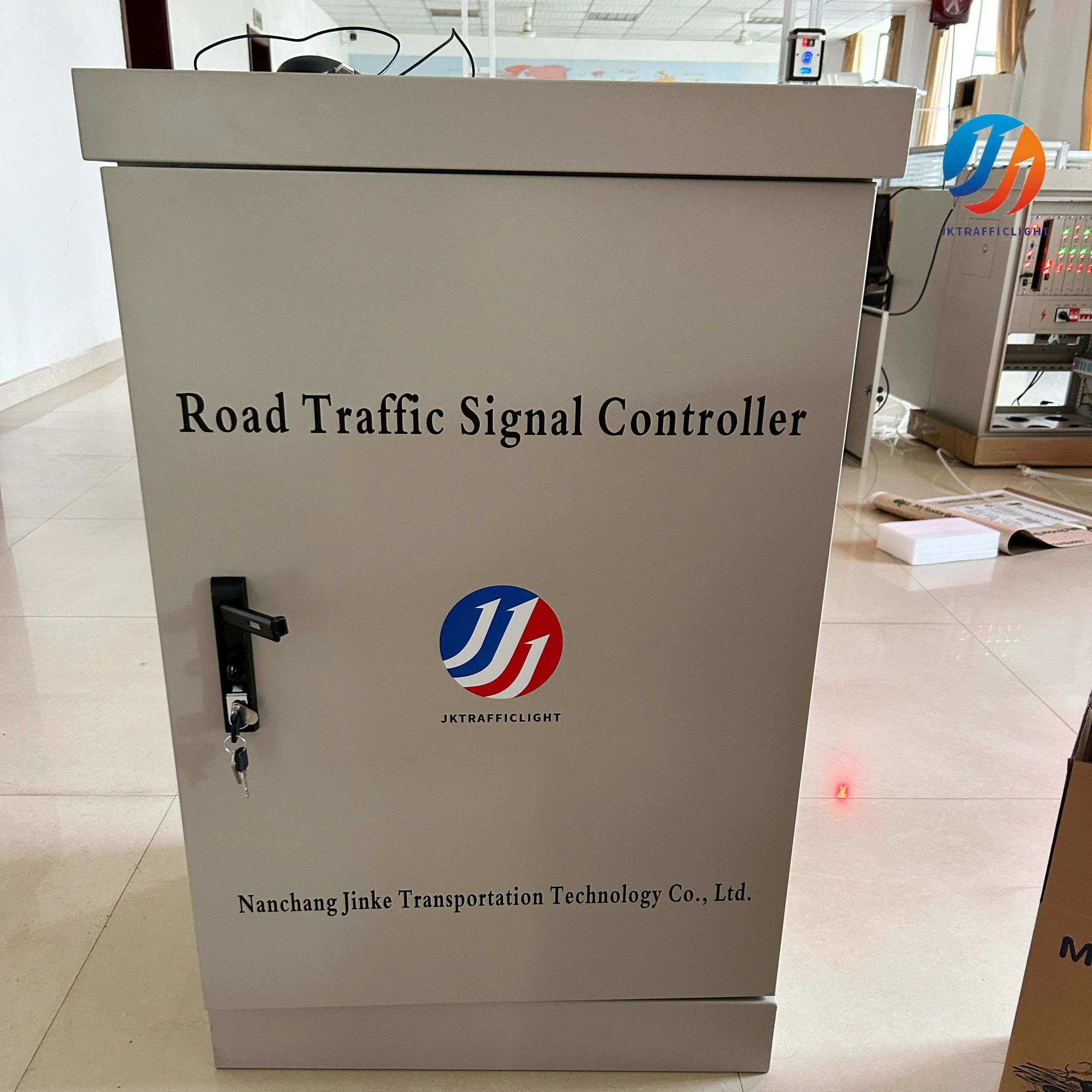

Intelligent Traffic Signal Light Controller JKC200-EC

The JKC200-EC traffic signal controller is primarily used for intelligent signal control at intersections. It collects vehicle information, transmits and processes data, and optimizes control signals to adjust traffic flow. Intelligent signal control can alleviate urban traffic congestion and significantly improve the environment, reduce energy consumption, and minimize traffic accidents.

It is suitable for urban roads, expressways, and highways.

Signal Output Terminal: 3A/220VAC (with fuse)
Operating Power Range: 176-264VAC 50/60Hz ± 2Hz
Power Consumption: ≤40W (excluding signal light and peripherals)
Operating Temperature: -40°C to +70°C
Relative Humidity: 40-95%
Weight: 62kg
Dimensions: 650*520*1000mm

product details

Product Introduction

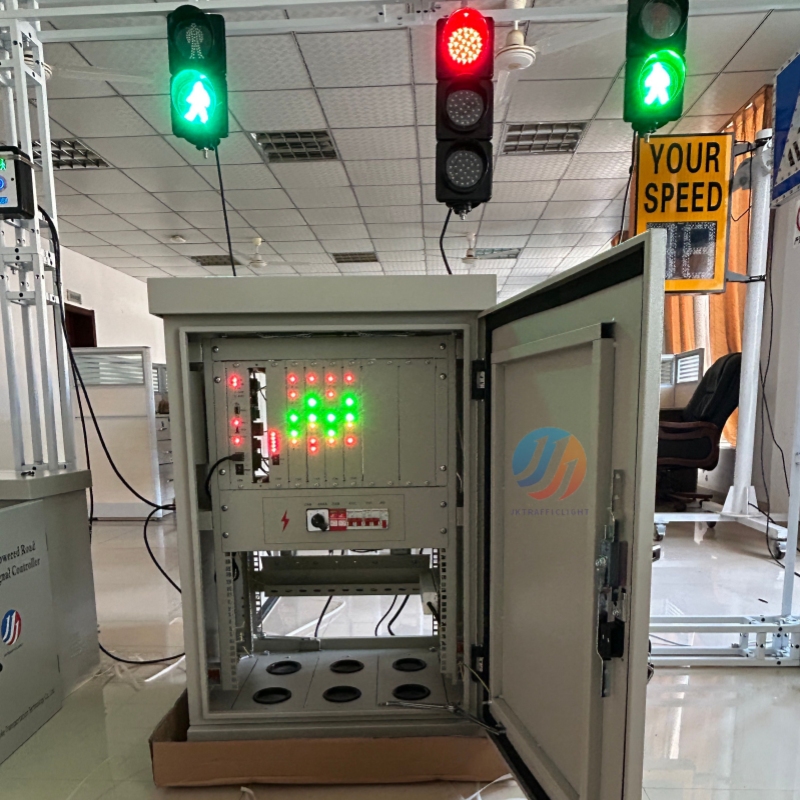

The JKC200-EC traffic signal controller is a core traffic control device meticulously designed by JKTRAFFICLIGHT to meet the needs of modern urban intelligent traffic management. It is an optimized and upgraded version of the proven and stable JKC200-A model. While ensuring compliance with national standards and comprehensive professional functionality, it offers highly competitive cost-effectiveness. Designed specifically for various urban intersections, this product effectively alleviates traffic congestion, improves road efficiency, and reduces accident rates through intelligent, multi-modal traffic flow control, making it a reliable cornerstone for building smart city transportation networks. 4_副本

Product Specification

Product name:	JKC200-EC traffic signal controller
Brand Name:	Jinke
Place of Origin:	Jiangxi, China
Size:	6505201000mm
Power Supply:	Solar battery or main power
Work temperature:	-40 ℃-+ 70 ℃
Feature:	Compatible with all traffic signals

Why choose the JKC200-EC?

1.Superior Reliability, Peace of Mind for Traffic Management:

✅National Standard Certification, Quality Assurance: Strictly complies with the national standard "GB25280-2016," ensuring long-term stable operation in complex outdoor environments.

✅ Dual Safety Protection: Equipped with signal light fault detection (e.g., red light off, red and green simultaneously on), the device automatically switches to hardware-based yellow flashing mode upon detection, maximizing intersection safety and mitigating liability risks.

✅ Failure - Safe: Even in the event of a host failure, the device automatically switches to yellow flashing mode, ensuring basic traffic order and providing a crucial fail-safe backup.

2.Strong flexibility to cope with various challenges now and in the future:

✅ Basic 48-channel signal output terminals, expandable to 96 meet the needs of complex signal systems from simple intersections to large, multi-fork intersections, leaving ample room for future intersection upgrades.

✅ Comprehensive Detection Access: Provides 32 detection interfaces for connecting external detection equipment such as video detectors. These interfaces accept both linear and digital signals, providing the data foundation for advanced features such as sensor control and adaptive control.

✅ Comprehensive control strategies: Built-in control methods include multi-period, sensing, and green wave bands. 20 daily time tables, 32 phase tables, and 16 holiday tables are provided. These allow for precise management of traffic flow at different times of the day, seven days a week, and even 365 days a year, flexibly addressing special traffic patterns such as morning and evening rush hours and holidays.

3. Convenient usability and intelligent features significantly reduce operation and maintenance costs:

✅ Multiple convenient configuration methods: In addition to traditional RS232 and Ethernet interfaces, the system supports one-click upgrade/import of configurations via USB flash drive and Bluetooth configuration, significantly improving on-site debugging and maintenance efficiency for engineers and saving significant manpower and time.

✅ Networkable control and management: Easily implement real-time control, parameter settings, status queries, and data backup via the network.

✅ Additional functions: The signal features information display (supports up to six displays) and countdown output, enabling traffic information dissemination without the need for additional equipment, further enhancing the intersection's informationization capabilities.
