CE Certified Radar Speed Display Sign
Product Introduction
This is an intelligent traffic warning device that integrates radar speed measurement and high-definition LED display. It is specially designed for places such as airports, docks and industrial zones that require efficient vehicle speed management. When a vehicle enters the detection area, the equipment will capture the vehicle speed in real time through microwave radar and clearly display it in red and green on the high-definition screen, providing visual warnings for speeding behavior. This effectively enhances road safety and reduces the risk of accidents
Product Specification
| Product name: | Driver Feedback Sign |
| Brand Name: | Jinke |
| Place of Origin: | Jiangxi, China |
| Size: | 750x500x70mm/ customized |
| Material: | Galvanized Steel+led light+ reflective sheeting |
| Measuring Distance: | >150m |
| Display mode: | 2/3-digit LED Display(optionally) |
| Optional power supply： | Mains power: AC85-264V or solar power: DC12V |
| Bluetooth configuration parameters： | It has multiple functions |
| Speed test mode: | directional, direction, and back and forth (default: directional) |
| Measurement Range From | 1-199km/h |
| Speed Radar Frequency: | 24.15GHz |
Product Features
The speed display board can provide the speed of vehicles traveling in and out and show it on the digital display screen. Parameters such as speed unit, overspeed value, low-speed value, delayed display time, brightness level, display mode and correction coefficient can be configured through the APP Bluetooth. It has the function of USB flash drive storage speed. The integrated structure design makes installation, operation and maintenance simple and convenient.

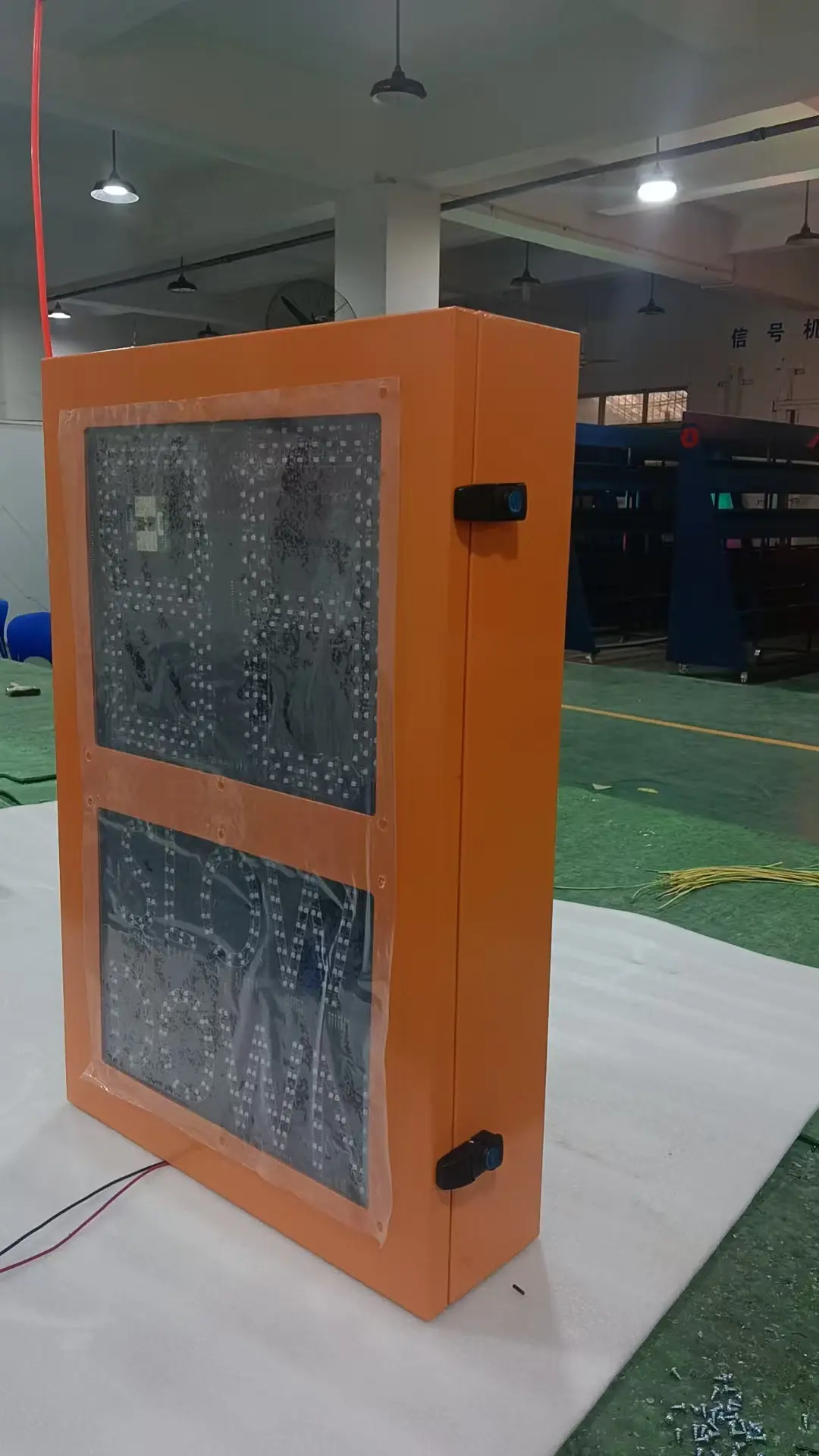

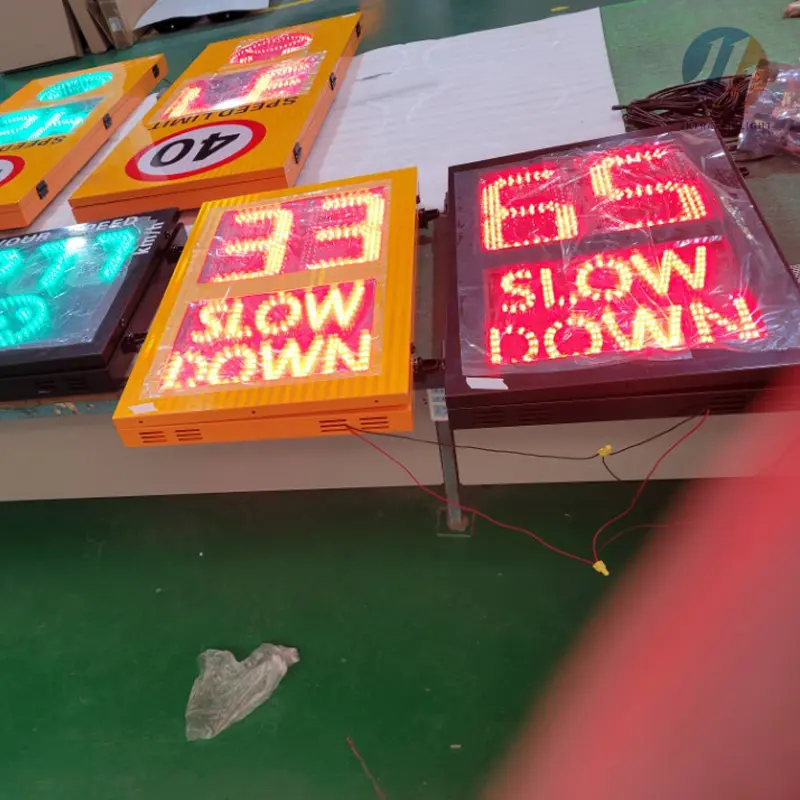

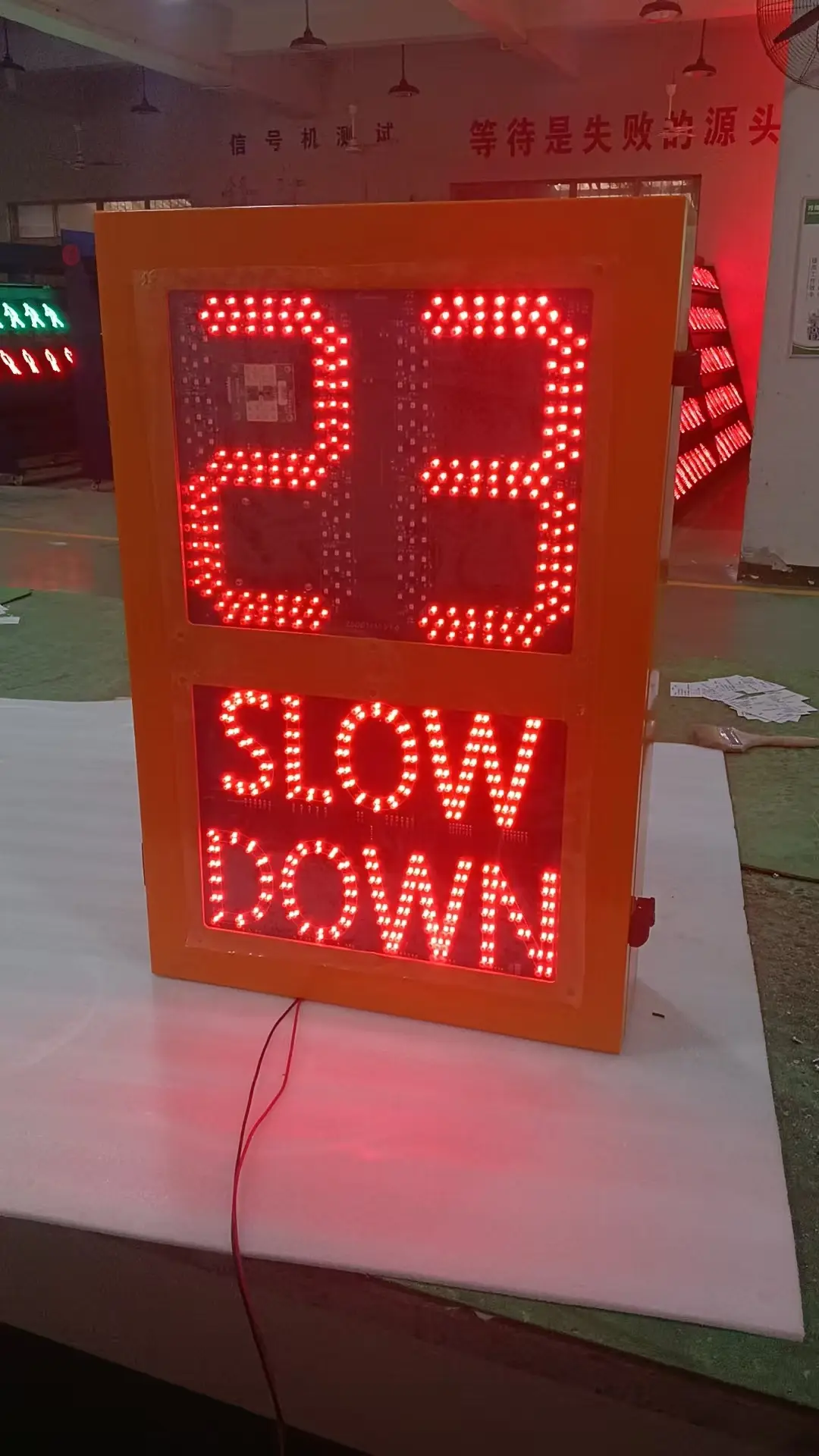

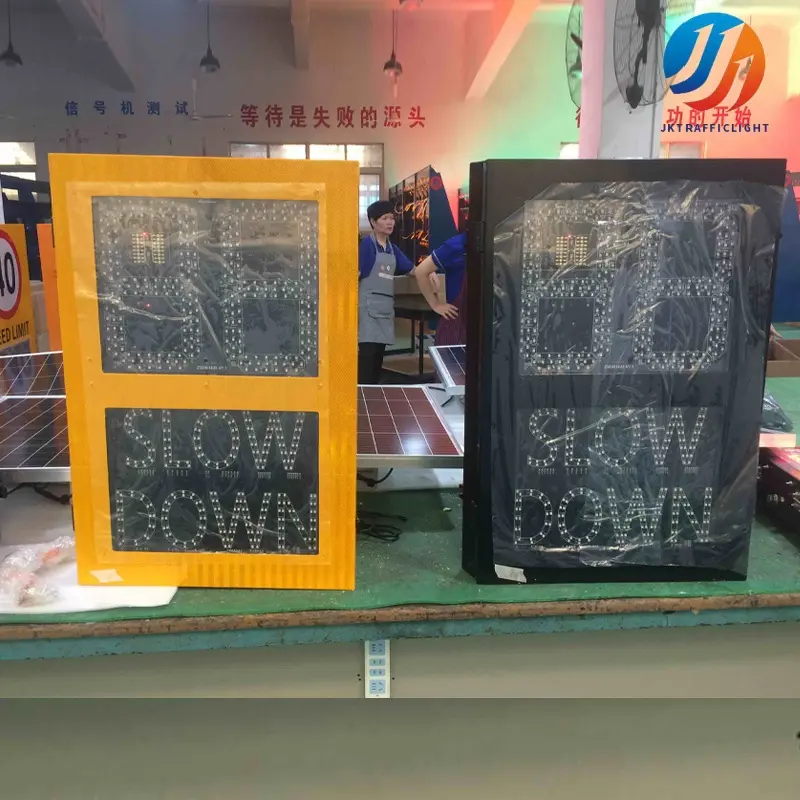

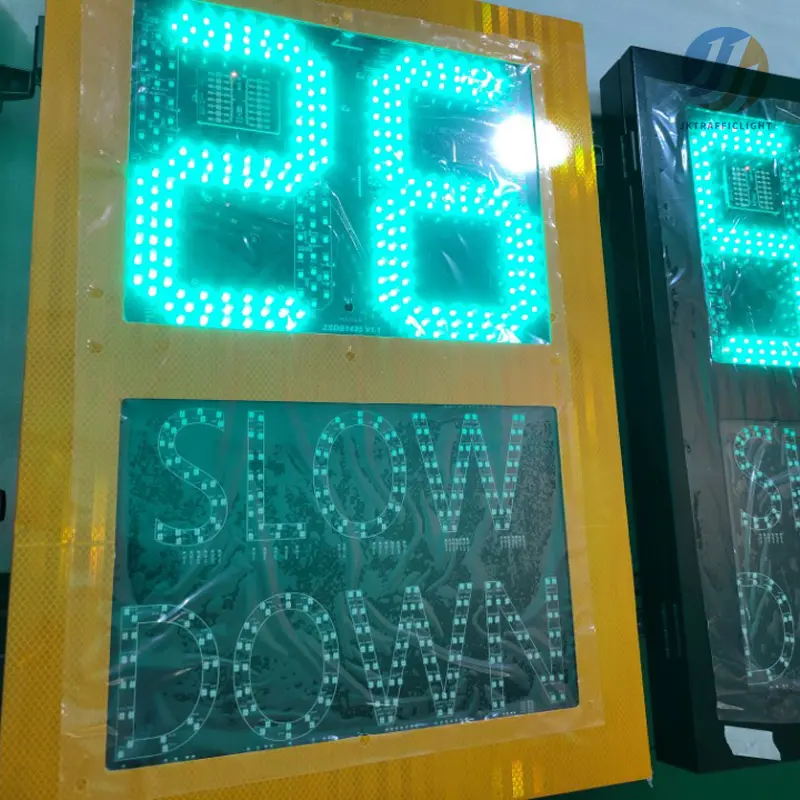

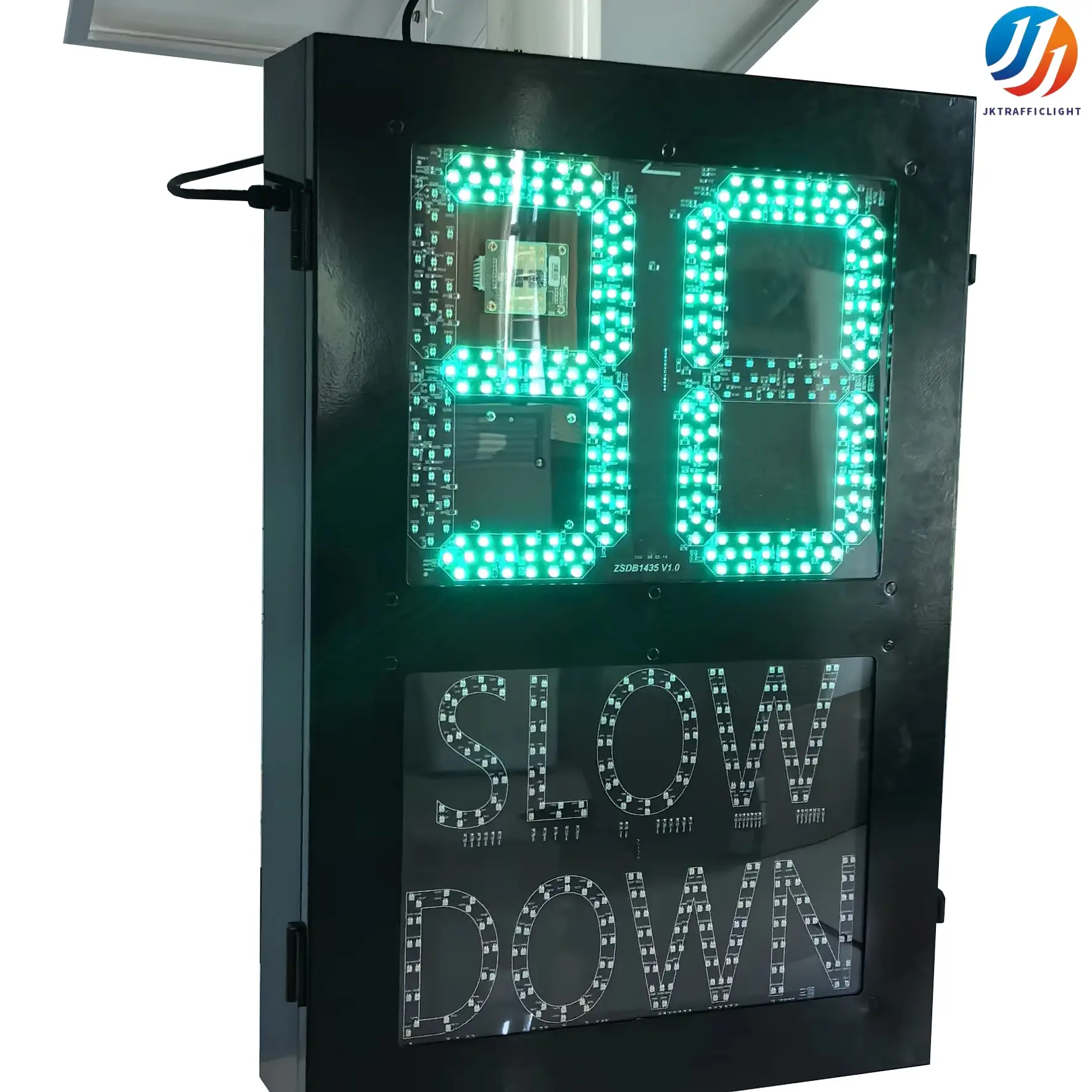

Detailed images
Installation and maintenance
1) Signboard installation angle: According to the installation specifications of road traffic signs and markings, signboards shall be installed as shown in the drawings.On that the included angle between the signboard and the road vertical line is set to be 0-10 degrees.
2) Radar installation angle: Since the radar is located on the digital display of the signboard, during actual installation,The angle of that signboard can be adjusted, namely the radar angle is adjusted.
Instructions
Butt-joint a round hole outlet joint of that solar panel with an input joint of the signboard;
Turn on the solar energy output switch;
Complete the parameter configuration through the traffic facility configuration tool APP.
Product Packaging
Frequently Asked Questions (FAQ)
Q1: Do you accept OEM?
A1: Yes. We accept producing products under Clients' brands.
Q2: Do I need a professional for installation?
A2: No need. Product design is simple, easy to install, users can install themselves according to the instructions.
Q3: Does the product support customization?
A3: Yes, we can customize the size, brightness, flicker mode and other parameters according to customer requirements.
