CE certified Dot Matrix Radar Speed Signboards with smile/cry face feedback
Product Introduction
The dot matrix radar speed sign with a crying smile is a traffic management device that integrates precise speed measurement, dynamic warning and visual guidance. It monitors the speed of passing vehicles in real time through an internal radar module, and uses a high-brightness dot matrix LED display screen to clearly show the speed value. At the same time, it is accompanied by dynamic ICONS of crying faces (when speeding) and smiling faces (when compliant), providing intuitive visual feedback to remind drivers to adjust their speed. It is widely applicable to areas around schools, community roads, factory interiors, scenic area sections, etc., where speed control needs to be strengthened, helping to reduce the incidence of traffic accidents and create a safe and orderly traffic environment.
Product Specification
| Product name: | Dot Matrix Radar Speed Signboards |
| Brand Name: | Jinke |
| Place of Origin: | Jiangxi, China |
| Size: | W 500x H 700 mm/ W 600 x H 1200mm/ W 700 x H 1200mm/ customized |
| Material: | Galvanized Steel+led light+ reflective sheeting |
| Measuring Distance: | >150m |
| Display mode: | 2/3-digit LED Display(optionally) |
| Power Supply: | Solar battery or main power |
| Work temperature: | -20 ℃-+ 70 ℃ |
| Pixel Construction: | RED+GREEN |
| Measurement Range From | 1-199km/h |
| Speed Radar Frequency: | 24.15GHz |
Product Features

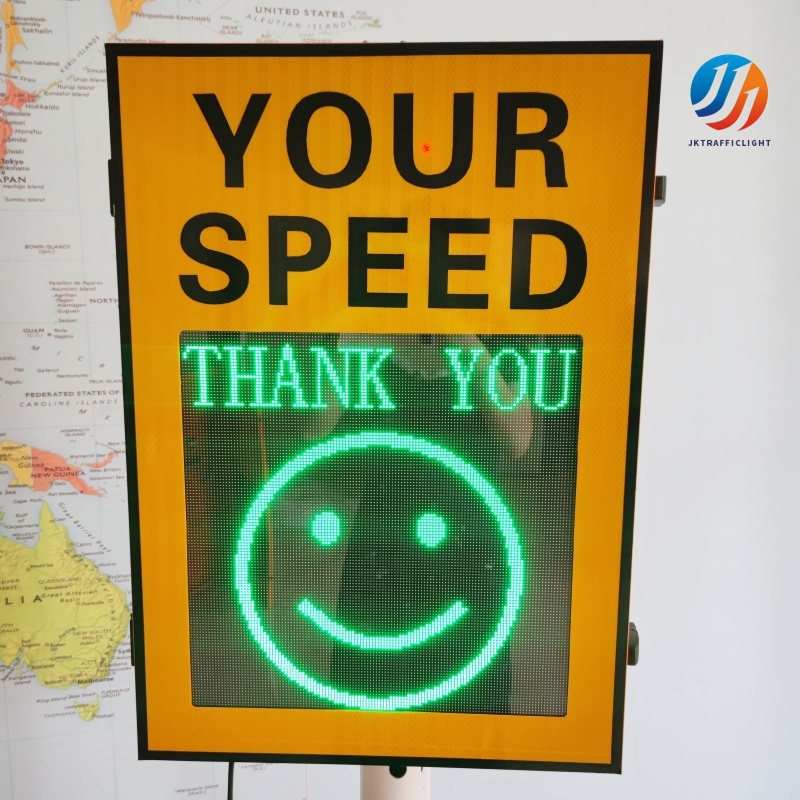

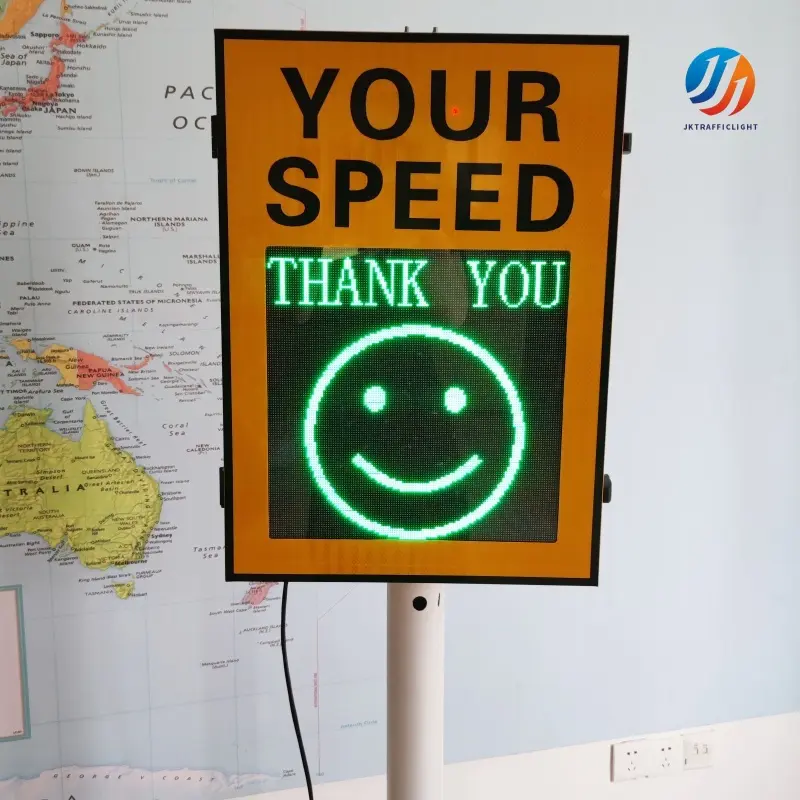

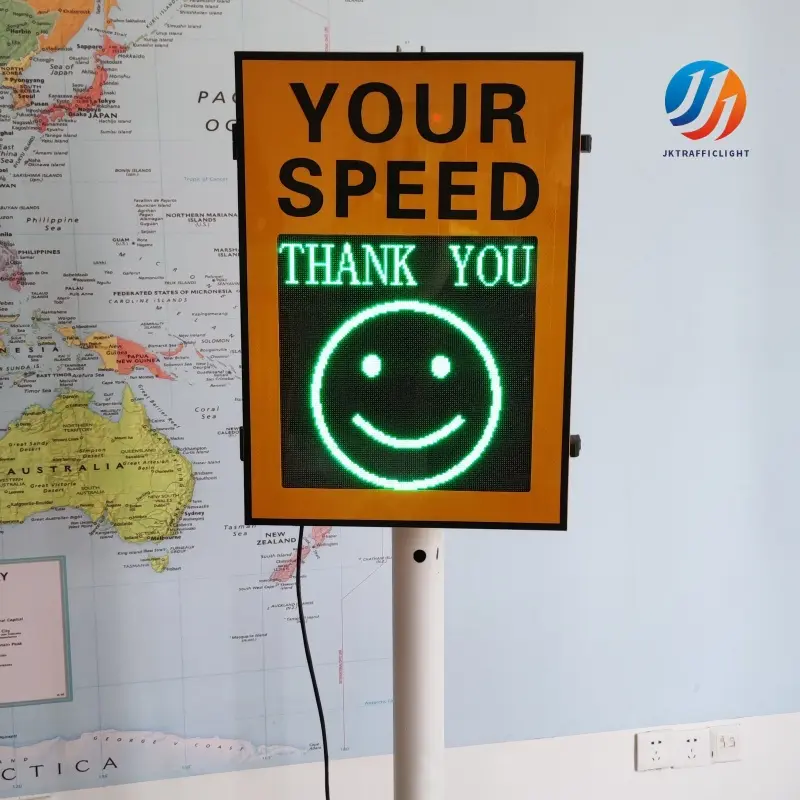

Dual-mode visual warning: When speeding, it automatically displays a red crying face icon and flashes the vehicle speed value; when compliant, it shows a green smiling face icon and a stable vehicle speed value. The color contrast is strong and the visual impact is powerful, allowing drivers to quickly identify the status.
High-definition dot matrix display: It adopts high-density LED dot matrix screens, supporting clear display in complex weather conditions such as strong light and rainy days. The visible distance can reach 0-200 meters, ensuring that vehicles at a distance can obtain speed information in advance.
Intelligent radar speed measurement: Equipped with high-precision radar sensors, the speed measurement range can be set according to requirements (usually 5-99km/h), with a speed measurement error of ≤±1km/h and a response time of ≤0.5 seconds, ensuring the real-time and accuracy of data.
Flexible installation and adaptation: Supports multiple installation methods such as pole mounting and wall mounting, and is compatible with 220V AC power supply or solar power supply (optional), meeting the power supply conditions of different scenarios, with high installation convenience.
Durable design: The casing is made of IP65-level waterproof and dustproof material, which can operate stably in an ambient temperature range of -30 ℃ to 70℃, adapting to all kinds of harsh weather conditions

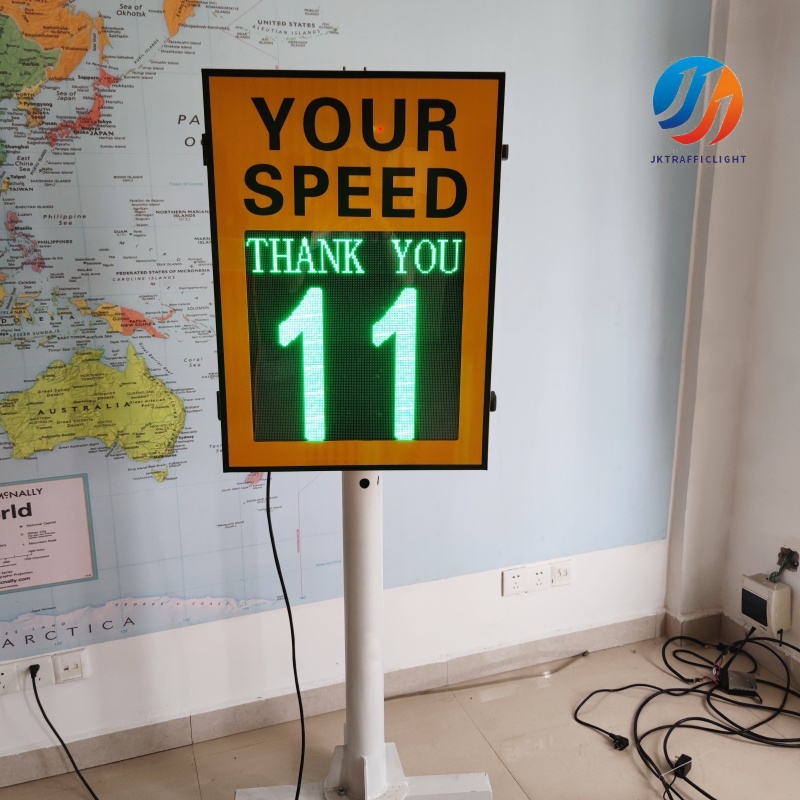

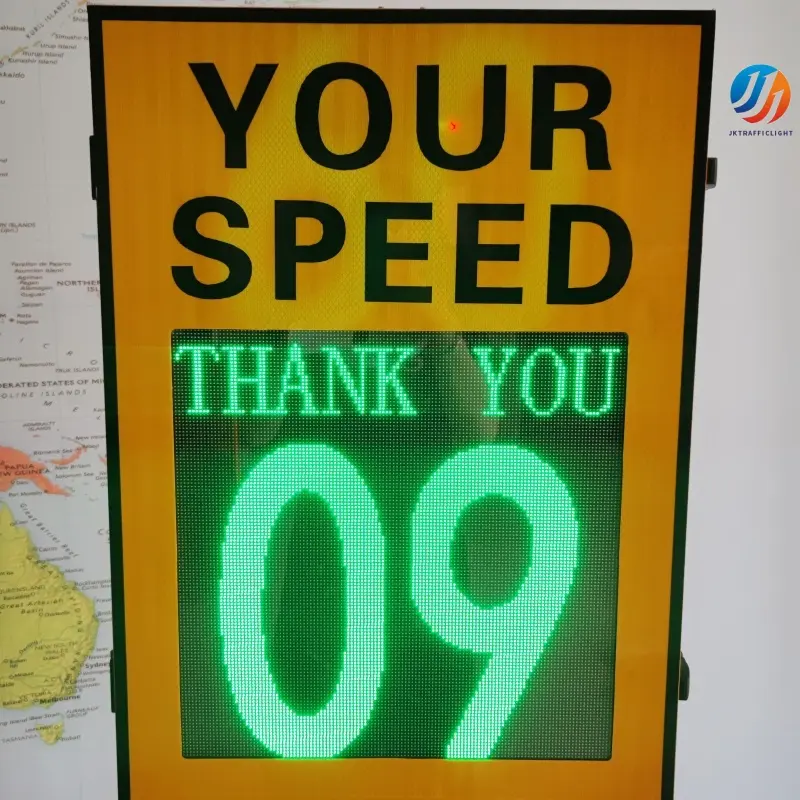

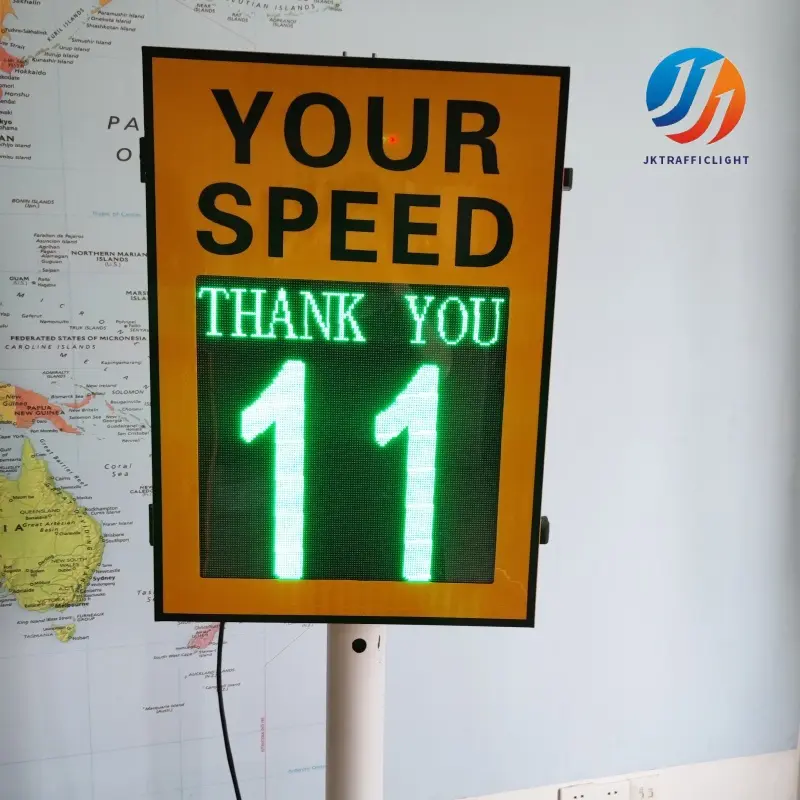

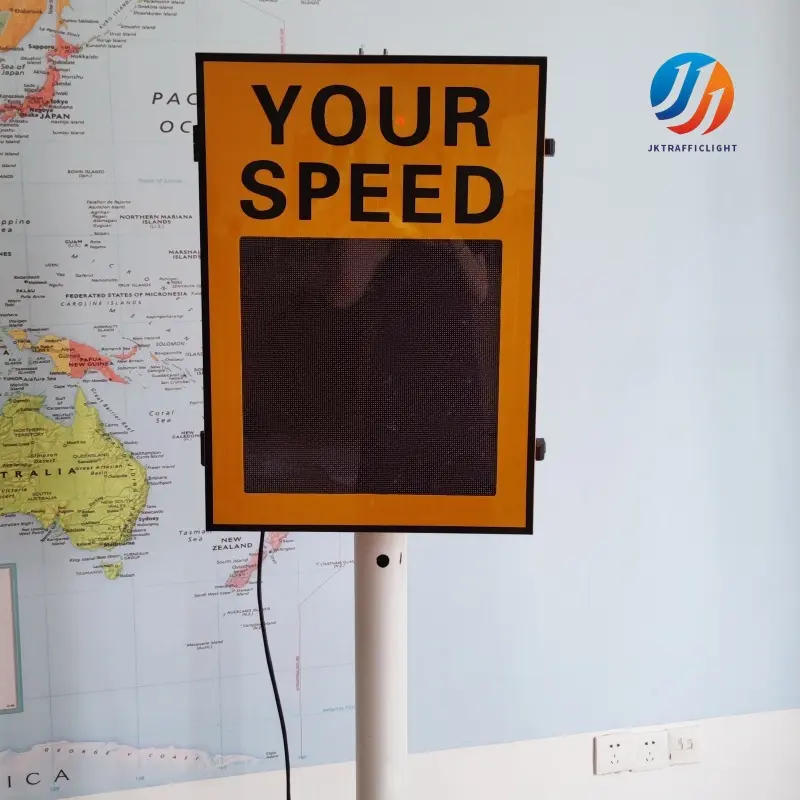

Detailed images
Installation and maintenance
1) Signboard installation angle: According to the installation specifications of road traffic signs and markings, signboards shall be installed as shown in the drawings.On that the included angle between the signboard and the road vertical line is set to be 0-10 degrees.
2) Radar installation angle: Since the radar is located on the digital display of the signboard, during actual installation,The angle of that signboard can be adjusted, namely the radar angle is adjusted.
Instructions
Butt-joint a round hole outlet joint of that solar panel with an input joint of the signboard;
Turn on the solar energy output switch;
Complete the parameter configuration through the traffic facility configuration tool APP.
Product Packaging
Frequently Asked Questions (FAQ)
Q1: Do you accept OEM?
A1: Yes. We accept producing products under Clients' brands.
Q2: Do I need a professional for installation?
A2: No need. Product design is simple, easy to install, users can install themselves according to the instructions.
Q3: Does the product support customization?
A3: Yes, we can customize the size, brightness, flicker mode and other parameters according to customer requirements.
