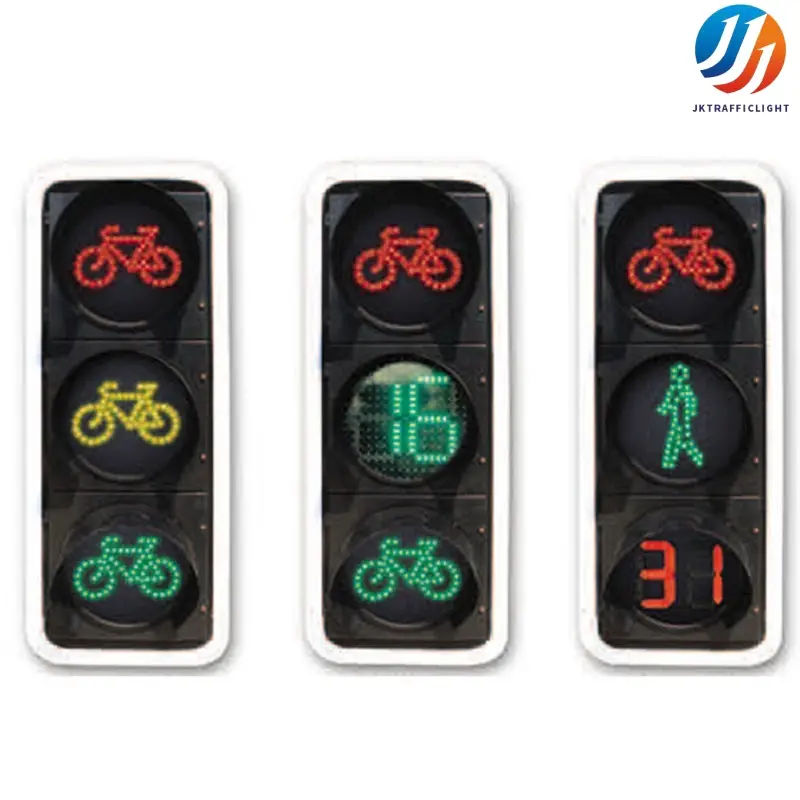

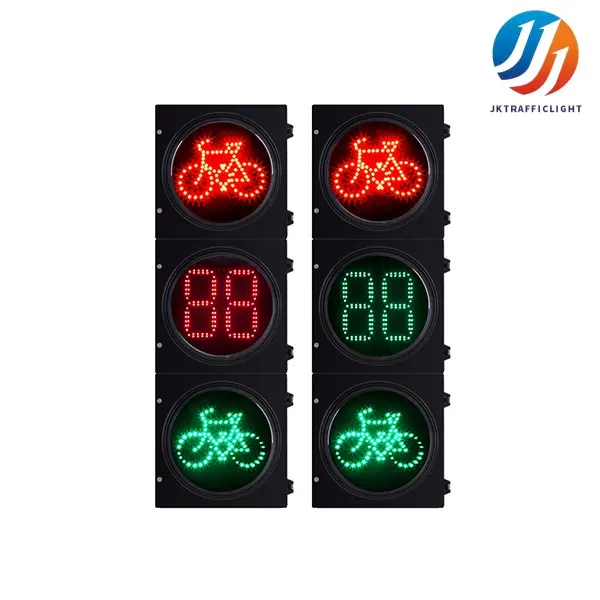

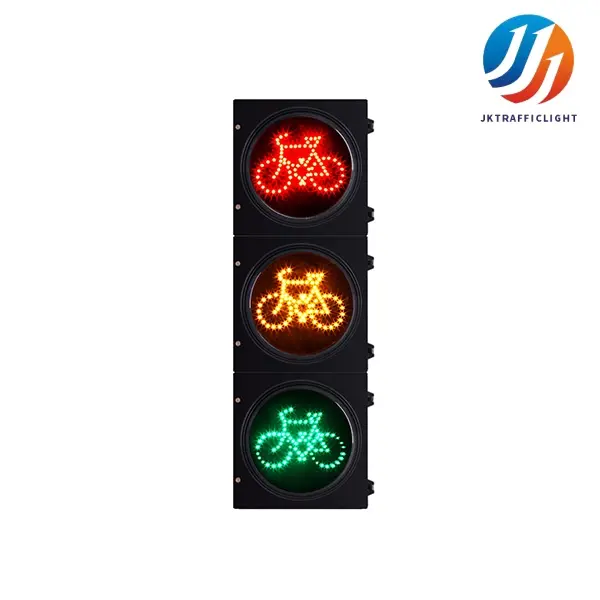

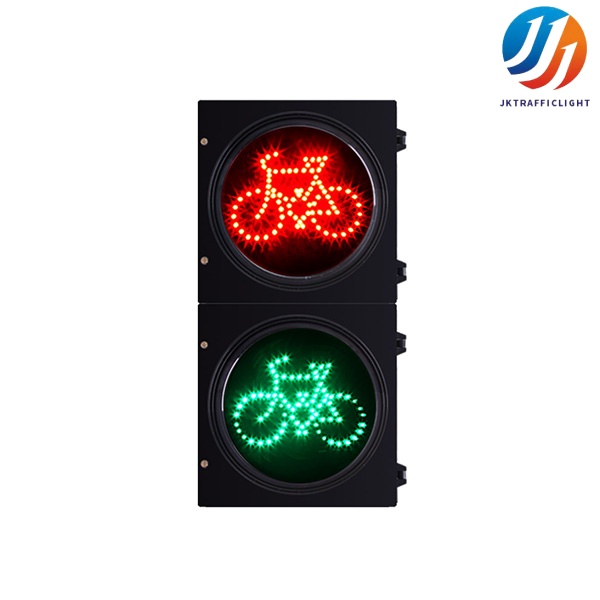

Bicycle Turn signal Light Solar Powered Non-motor Vehicle Traffic Lights with Countdown
Product Introduction
The non-motorvehicle signals is a traffic signal developed and produced by our company using the most advanced LED light-emitting devices. It has dynamic image characteristics when the green light is green. The wick Angle is good, the brightness is uniform, the chromatography standard, the power consumption is low, the life is long, the decay is reduced, the reliability is high, the stability is strong, the temperature resistance is good, the voltage operation is wide. The lamp body is made of high-quality aluminum ingots after melting and one-time die-casting (PC material can also be selected, and the material can be customized). Designed for LED lights, the lamp cover opens V-shaped design, without any tools, can be twisted by hand. Double seal, ultra-thin design, light weight. The color film adopts PC injection molding, beautiful and generous. In the hot sun and fog conditions, even more outstanding advantages.
Product Specification
| Product name: | LED non-motorvehicle signals |
| Brand Name: | Jinke |
| Place of Origin: | Jiangxi, China |
| Diameter: | 100mm/200mm/300mm / customized |
| Material: | Polycarbonate (PC) engineering material/Aluminumdie-castmaterial |
| LED Wave length: | Red (625nm) Yellow (590nm) Green (505nm) |
| LED Light Angle: | 30° |
| Power Type: | Constant current |
| Operating Voltage: | DC12~24V,AC176~264V |
| Single Light Rated Power: | ≤8W |
| Service Life: | ＞50,000hours |
| Operating Temperature: | -40℃~80℃ |
| Protection Level: | ≥IP53 |
| Start/Stop Response Time: | ＜100ms |
| Light Source: | LED |
| Emitting Color: | Red/Green/ Yellow |
| Power Factor: | ＞0.85 |
| View Distance: | ＞500m |
Product Features
Security enhancement
Through time-sharing control of motor vehicles and non-motor vehicles, reduce cross conflicts, especially suitable for intersections with large mixed traffic flow.
High brightness and wide viewing Angle design (≥30°) significantly reduces the risk of blind area accidents.
Energy saving and long life
LED light source life of up to 50,000 to 100,000 hours, power consumption is only 10% to 20% of the traditional signal lamp, long-term use of low cost.
Some models support solar power to further reduce energy consumption.
Strong environmental adaptability
Resistant to extreme temperature (-40℃ ~ +85℃), dustproof and waterproof, suitable for mountainous areas, coastal areas and other climates.
Wind pressure resistance design (> 12 winds) ensures stable operation of the signal light in bad weather.
Compliance and certification
In line with the national standard GB14887-2011 and international certification (such as CE, TUV, EN12368), part of the Ministry of Public Security traffic safety product quality testing to ensure reliable performance.
Detailed images
Installation and maintenance

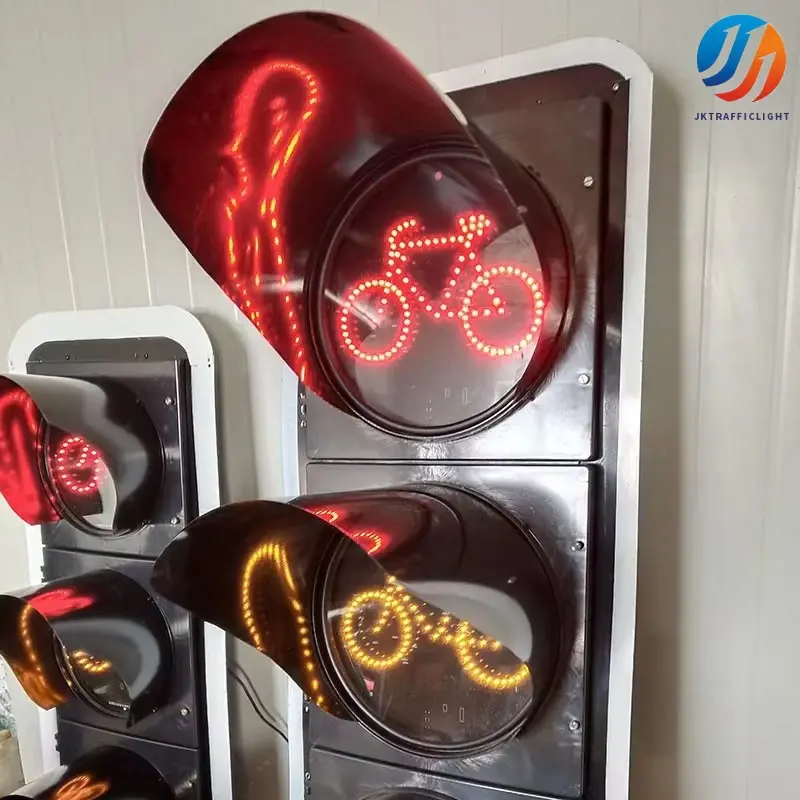

The structure design is reasonable, the installation is simple and quick, and can be fixed by wall hanging, column and other ways. At the same time, the modular design, each component is easy to disassemble and replace, reduce maintenance costs, improve maintenance efficiency.
Product Packaging
Frequently Asked Questions (FAQ)
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Samples within 3 days, big order within 1-2 weeks.
Q3: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5: How to choose the system Voltage 12V /24V ?
A: We could design the system for you .Usually 12V system for 15W-40W LED lamp , 24V system for 50-150W LED lamp.
