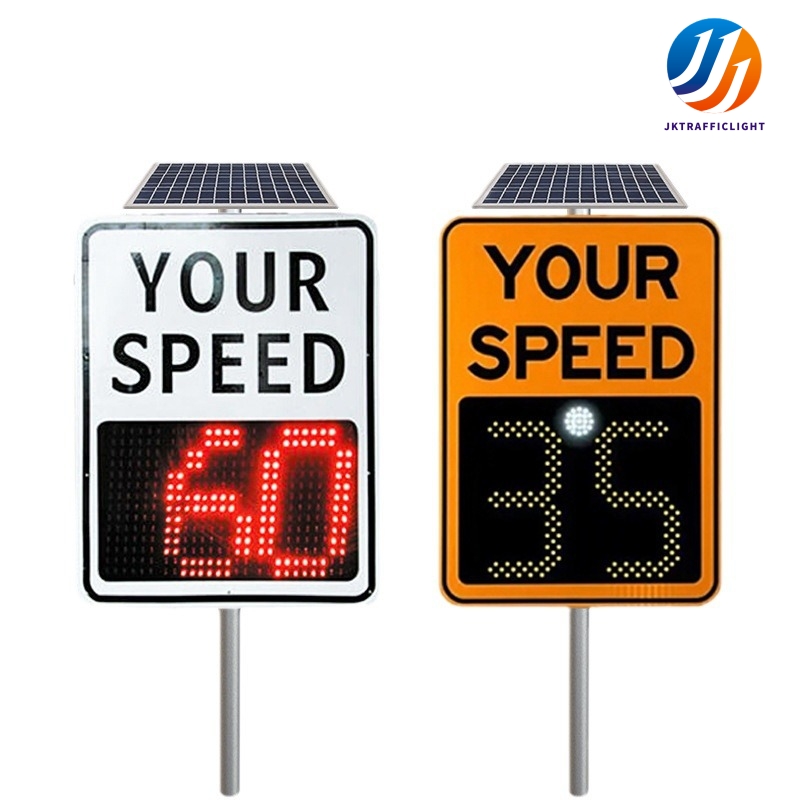

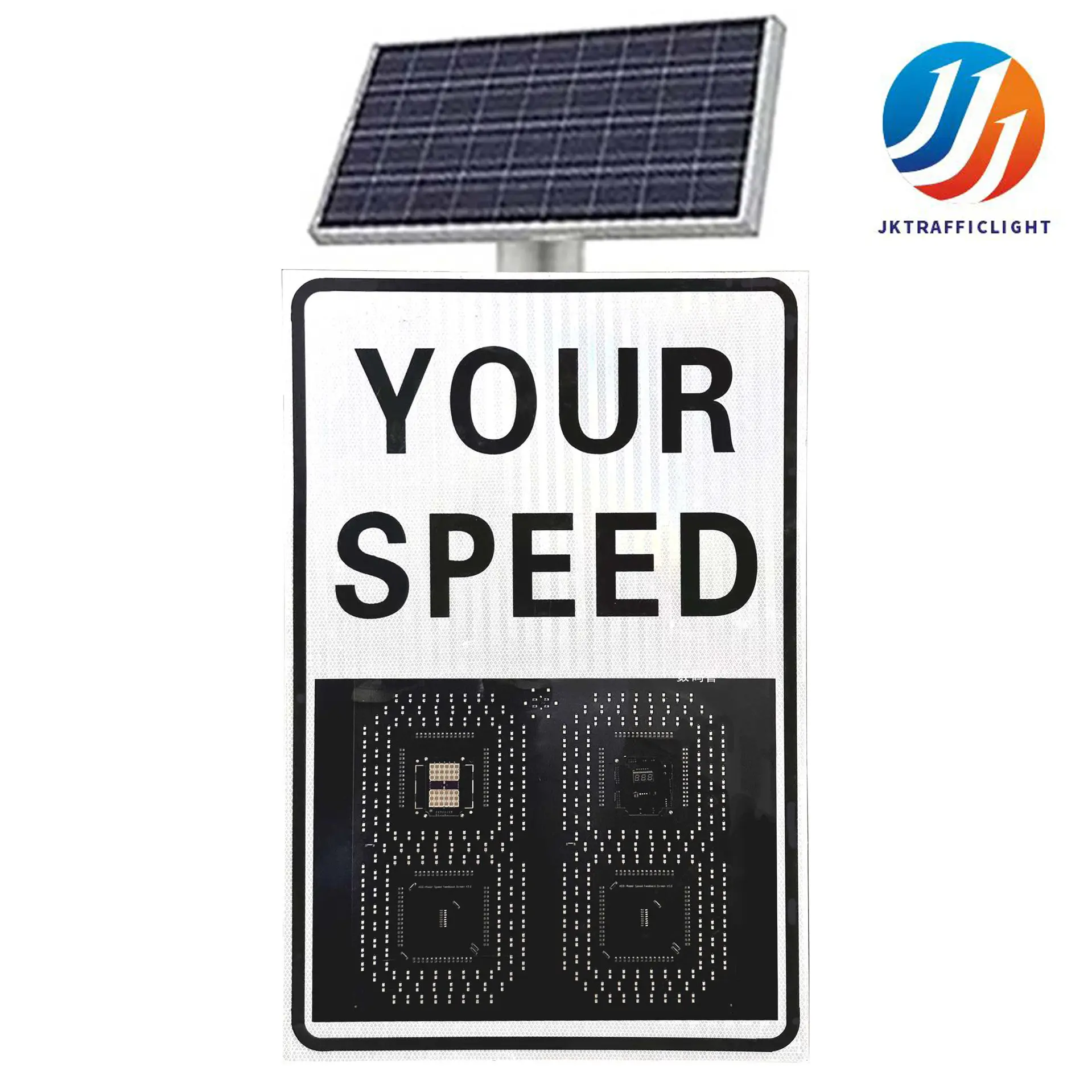

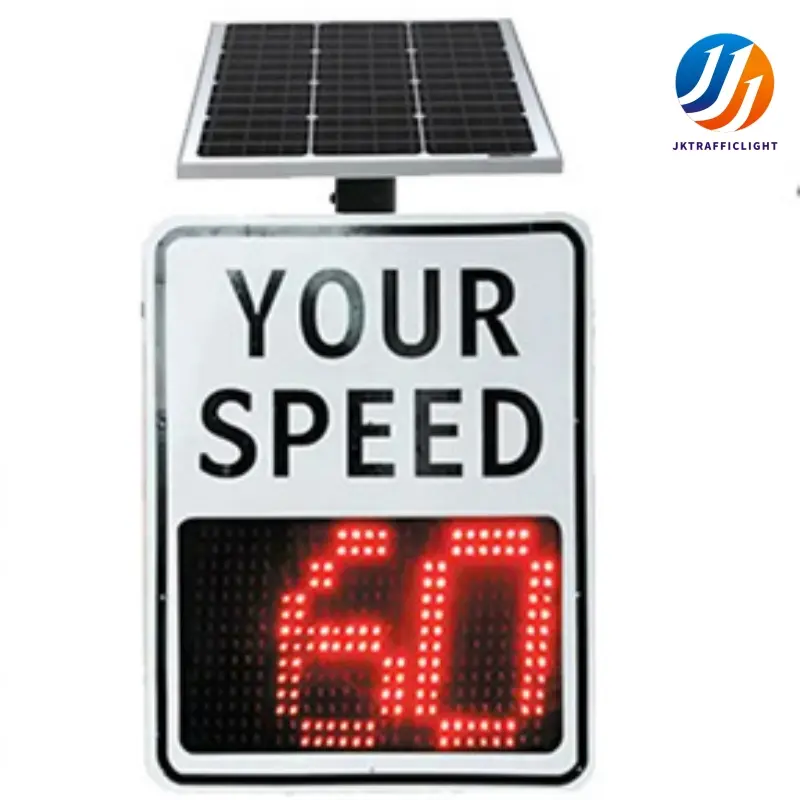

Aluminum Solar Speed Limit Sign With Radar
Product Features
Product Name: Solar Radar Speed Measurement Display Screen
Core function: Real-time detection and display of vehicle speed to assist in road traffic management

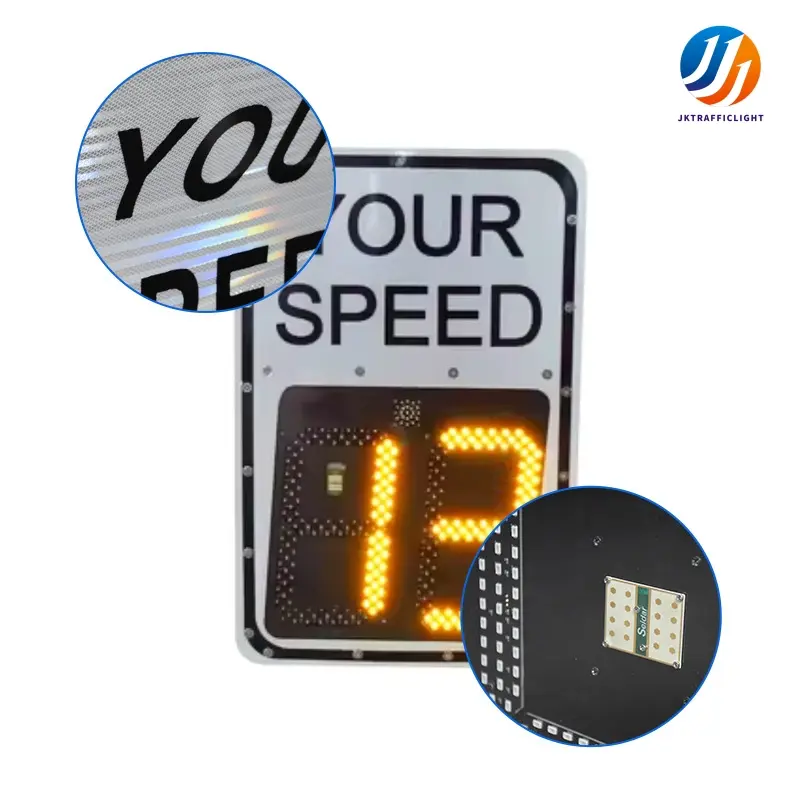

Display features: Brightness LED digital display (red and yellow dual colors), visible distance ≥ 1000 meters (at night); The surface is covered with a high-gloss reflective film, making it clearly visible at night
Speed measurement performance: The detection distance can reach up to 200 meters, and the speed display range is usually 10-199 km/h (or mph, optional).
Material and protection: Aluminum shell, anti-corrosion; The protection grade is as high as IP65, featuring strong water and dust resistance as well as excellent sealing performance
Energy solution: Solar power supply (equipped with solar panels and batteries), supporting continuous operation on rainy and cloudy days
Applicable scenarios: Expressways, urban streets, residential communities, school areas, factory parks and other areas that require speed limit management
Product Specification
| Product name: | Speed limit sign with radar |
| Brand Name: | Jinke |
| Place of Origin: | Jiangxi, China |
| Size: | W 500x H 700 mm/ W 600 x H 900mm /customized |
| Material: | Galvanized Steel/Aluminum shell+led light+ reflective sheeting |
| Measuring Distance: | >200m |
| Display mode: | 2/3-digit LED Display(optionally) |
| Power Supply: | Mains power: 90-240V, solar power: 12V |
| Work temperature: | -20 ℃-+ 70 ℃ |
| Applicable lane: | one to four lanes |
| Measurement Range From | 1-199km/h |
| Waterproof grade: | IP65 |
Product function
1. Real-time speed measurement and display
Integrating radar technology, it accurately detects and instantly displays the speed of passing vehicles.
2. Proactive early warning
The high-brightness LED digital changes remind drivers to pay attention to the current speed and effectively regulate driving behavior.
3. Multiple power supply options
Supports solar power supply, energy-saving, environmentally friendly and flexible installation. It also supports mains power connection.
4. Customized Services
As an original manufacturer, we can provide a variety of customization services such as size and display content (such as custom logos and text).
Installation and maintenance
Instructions
Butt-joint a round hole outlet joint of that solar panel with an input joint of the signboard;
Turn on the solar energy output switch;
Complete the parameter configuration through the traffic facility configuration tool APP.
Product Packaging
Frequently Asked Questions (FAQ)
Q1: Do you accept OEM?
A1: Yes. We accept producing products under Clients' brands.
Q2: Do I need a professional for installation?
A2: No need. Product design is simple, easy to install, users can install themselves according to the instructions.
Q3: Does the product support customization?
A3: Yes, we can customize the size, brightness, flicker mode and other parameters according to customer requirements.
