600mm Red Cross Green Arrow Lane Control Light Tunnel Toll Station Traffic Light
Product Introduction

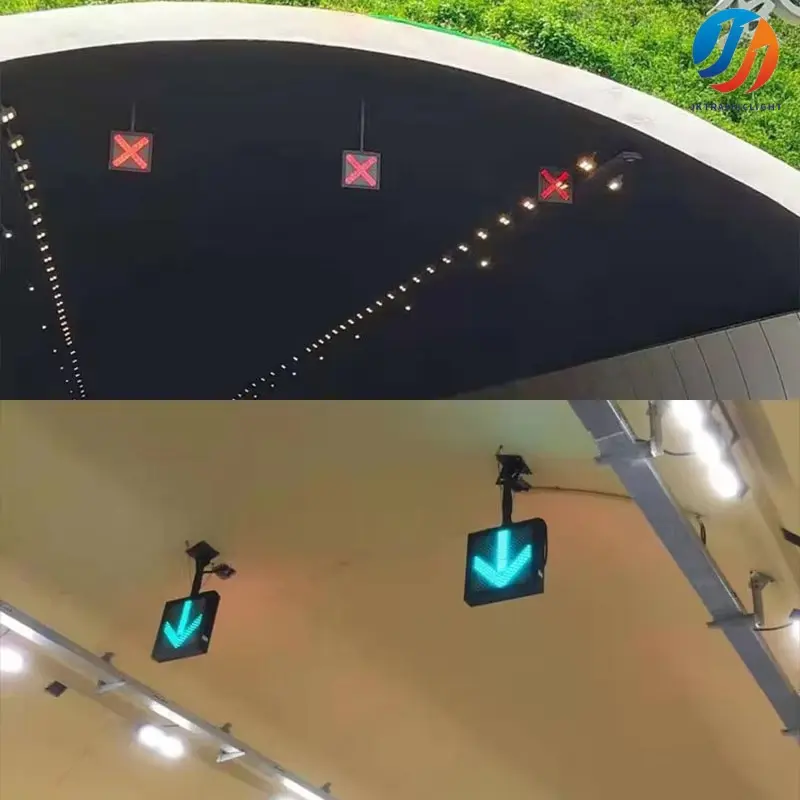

The Red Cross Arrow lane signal is a traffic control device that dynamically manages lane status through the visual display of the Red Cross (do not pass) and the green Arrow (Allow pass). Mainly used in highways, Bridges, tunnels, toll stations, parking lots and other scenes, real-time guide vehicles to pass or ban, reduce congestion and accident risk. Its core function is to adjust the lane status through remote or local control system, adapt to different traffic flow needs, improve traffic efficiency and safety.
Product Specification
| Product name: | Red Cross Green Arrow Lane Control Light |
| Brand Name: | Jinke |
| Place of Origin: | Jiangxi, China |
| Diameter: | 100mm/200mm/300mm / customized |
| Material: | Polycarbonate (PC) engineering material/Aluminumdie-castmaterial |
| LED Wave length: | Red (625nm) Green (505nm) |
| LED Light Angle: | 30° |
| Power Type: | Constant current |
| Operating Voltage: | DC12~24V,AC176~264V |
| Single Light Rated Power: | ≤6W |
| Service Life: | ＞50,000hours |
| Operating Temperature: | -40℃~80℃ |
| Protection Level: | ≥IP53 |
| Start/Stop Response Time: | ＜100ms |
| Light Source: | LED |
| Emitting Color: | Red/Green |
| Power Factor: | ＞0.85 |

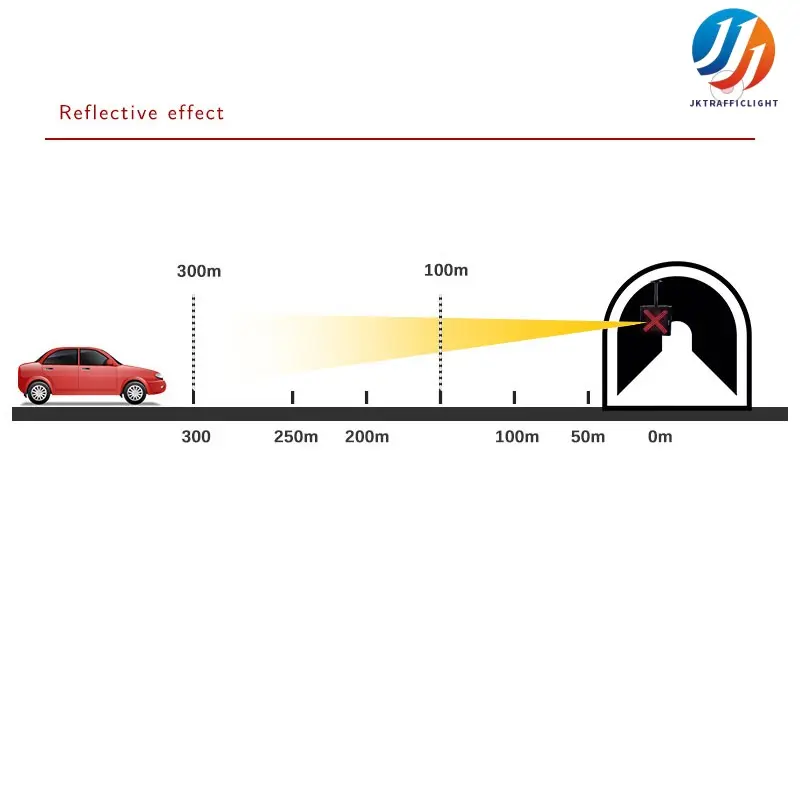

| View Distance: | ＞500m |
Product Features
1. Improve traffic safety
By time-sharing control of lane status, clear traffic instructions, reduce the risk of traffic accidents in intersections and tunnels.
High brightness and wide viewing Angle design to ensure visibility under harsh conditions such as rain, fog and strong light.
2. Energy saving and long life
LED power consumption is only 10%-20% of traditional light sources, combined with solar powered models, further reducing energy consumption.
Extremely long life (50,000 hours) and low maintenance requirements significantly reduce operating costs.
3. Strong environmental adaptability
Resistant to extreme temperature (-40℃ ~ +85℃), dustproof and waterproof (IP55), suitable for coastal, mountain and other climate areas.
Anti-seismic and anti-salt spray design to ensure stable operation of equipment in harsh environment.

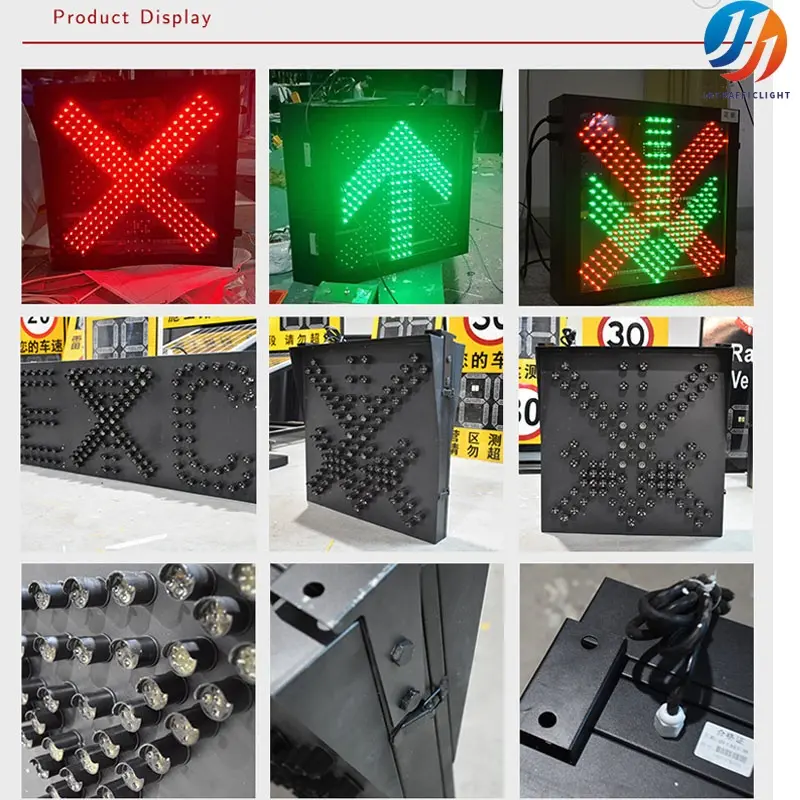

Detailed images
Installation and maintenance
The structure design is reasonable, the installation is simple and quick, and can be fixed by wall hanging, column and other ways. At the same time, the modular design, each component is easy to disassemble and replace, reduce maintenance costs, improve maintenance efficiency.
Product Packaging
Frequently Asked Questions (FAQ)
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Samples within 3 days, big order within 1-2 weeks.
Q3: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5: How to choose the system Voltage 12V /24V ?
A: We could design the system for you .Usually 12V system for 15W-40W LED lamp , 24V system for 50-150W LED lamp.
