500mm High Quality Countdown Timer LED Traffic Light Timer Traffic Countdown Control Lights
Product Introduction
The Countdown Timer series traffic light is a traffic signal device with integrated countdown display function, which helps drivers and pedestrians predict the traffic status by displaying the red light or the remaining time of the green light in real time, optimizing the traffic efficiency at the intersection, and reducing safety hazards such as emergency braking and red light running. The product is widely used in urban intersections, schools around, highway on-ramps and other scenes, in line with national standards GB14887-2011 and GA/T508-2014, support and intelligent transportation system linkage, to achieve dynamic traffic management.
Product Specification
| Product name: | Countdown Timer LED Traffic Light |
| Brand Name: | Jinke |
| Place of Origin: | Jiangxi, China |
| Diameter: | Customized Size |
| Material: | Polycarbonate (PC) engineering material/Aluminumdie-castmaterial |
| LED Wave length: | Red (625nm) Yellow (590nm) Green (505nm) |
| LED Light Angle: | 30° |
| Power Type: | Constant current |
| Operating Voltage: | DC12~24V,AC175~285V |
| Single Light Rated Power: | ≤40W |
| Service Life: | ＞50,000hours |
| Operating Temperature: | -40℃~80℃ |
| Protection Level: | ≥IP53 |
| Start/Stop Response Time: | ＜100ms |
| Light Source: | LED |
| Emitting Color: | Red/Green/ Yellow |
| Power Factor: | ＞0.85 |
| View Distance: | ＞500m |
Product Features
1. Improve traffic safety and efficiency
The countdown display reduces driver anxiety, avoids rapid acceleration or sudden braking, and reduces the accident rate at the intersection by more than 30%.
Time-sharing dynamic control of traffic flow, optimize the green start time, improve the crossing capacity.
2. Energy saving, environmental protection and long life
The power consumption of the LED light source is only 10%-20% of that of the traditional signal lamp, the life span is as long as 50,000-100,000 hours, and the light decay is less than 5%, which significantly reduces the maintenance cost.
Solar-powered models further reduce energy consumption, in line with the development trend of green transportation.
3. Strong environmental adaptability
Resistant to extreme temperature and humidity (-40℃ ~ +85℃), dustproof and waterproof (IP53), suitable for coastal, mountain and other climate areas.
Wind-resistant and earthquake-resistant design ensures stable operation in bad weather and reduces failure rate.

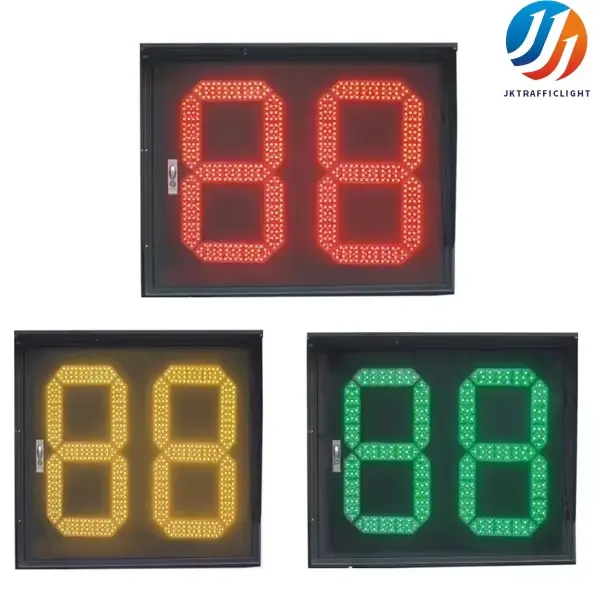

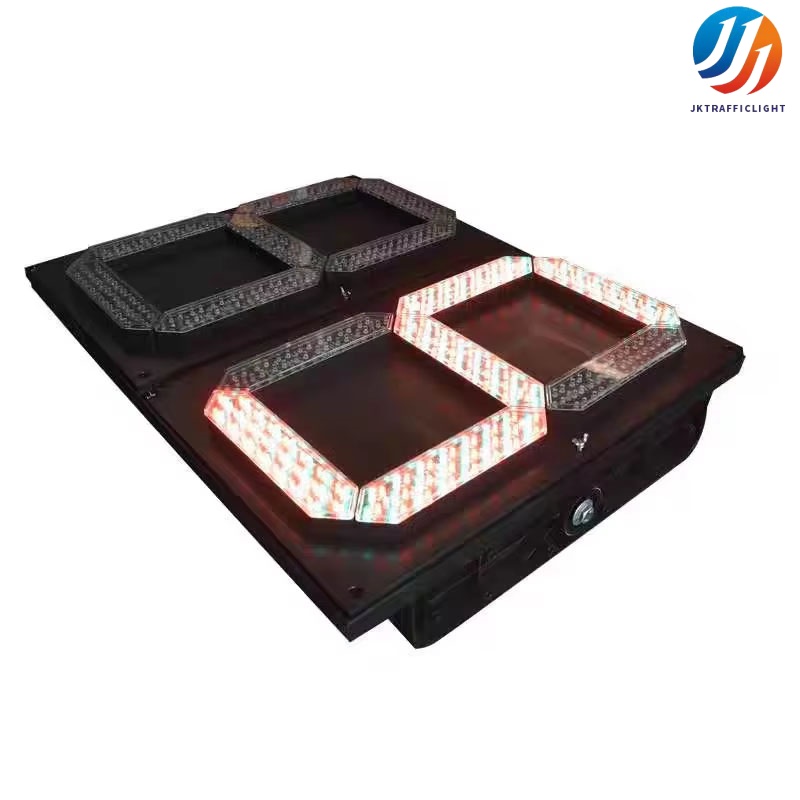

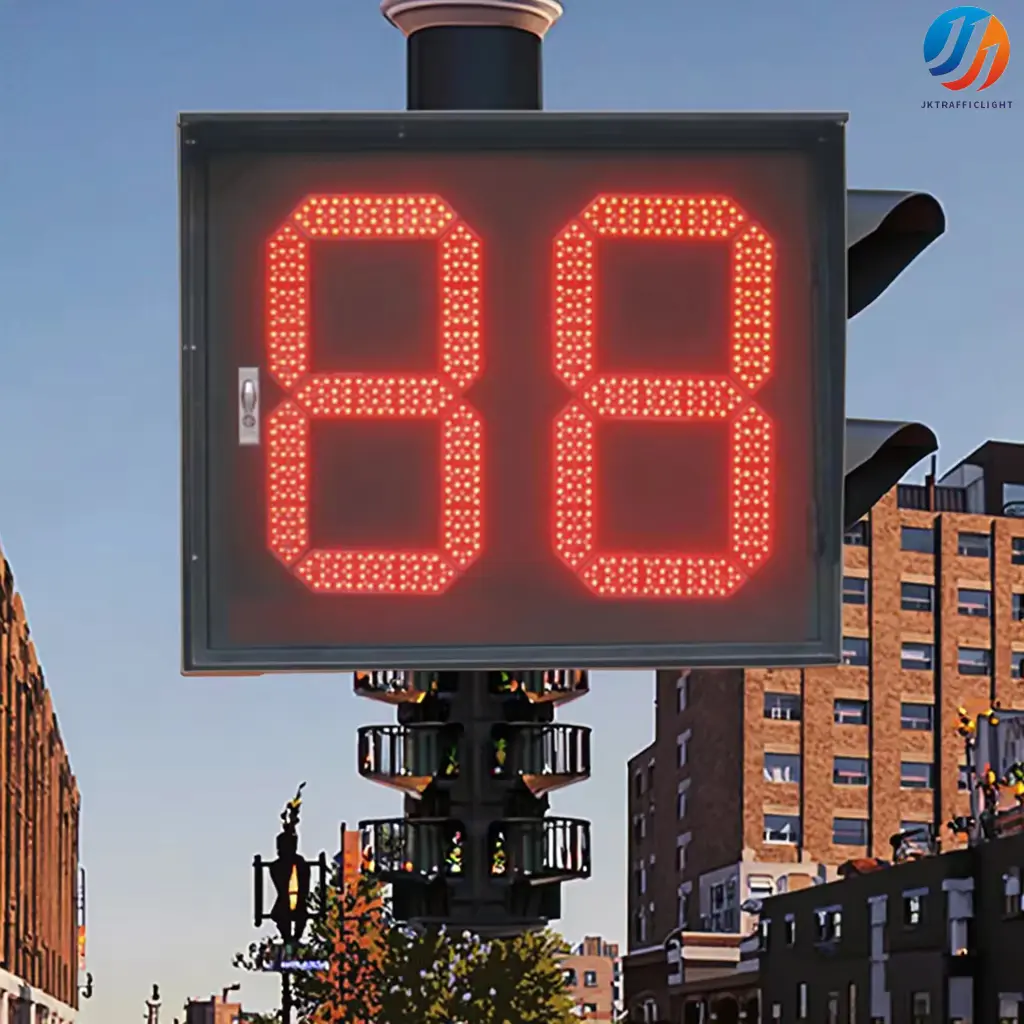

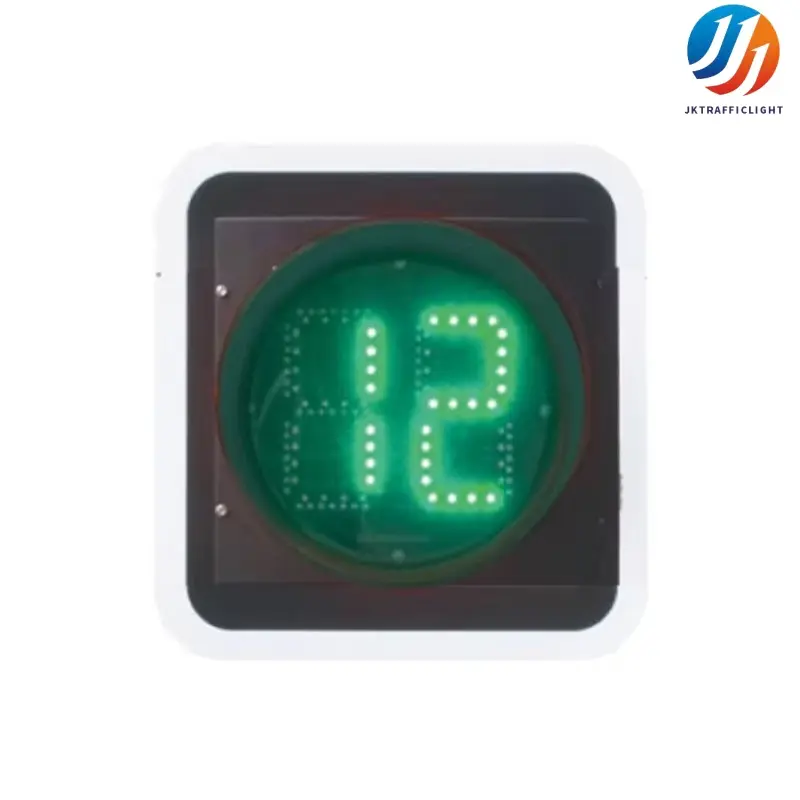

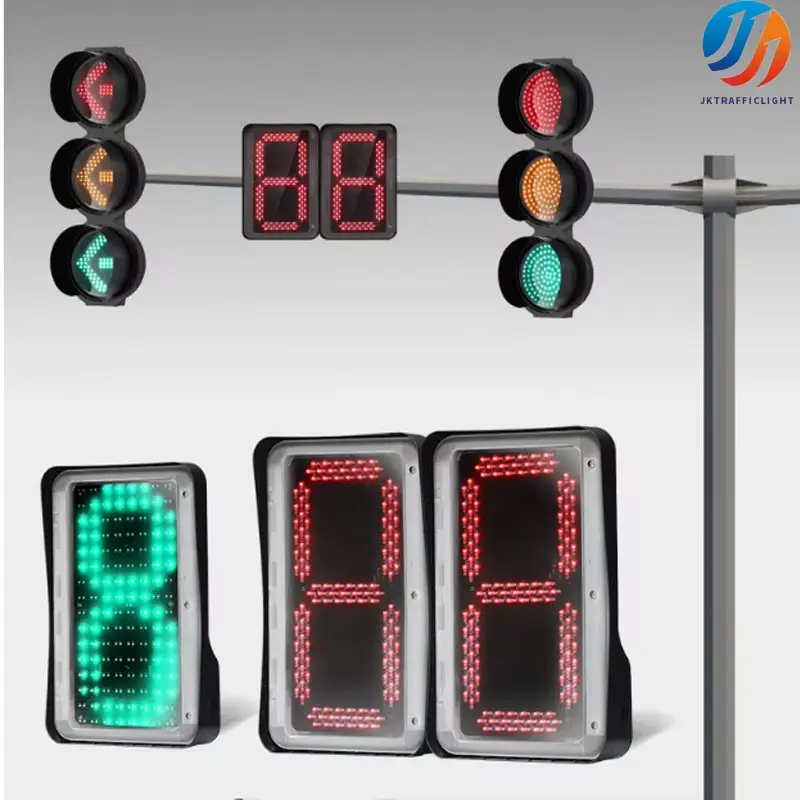

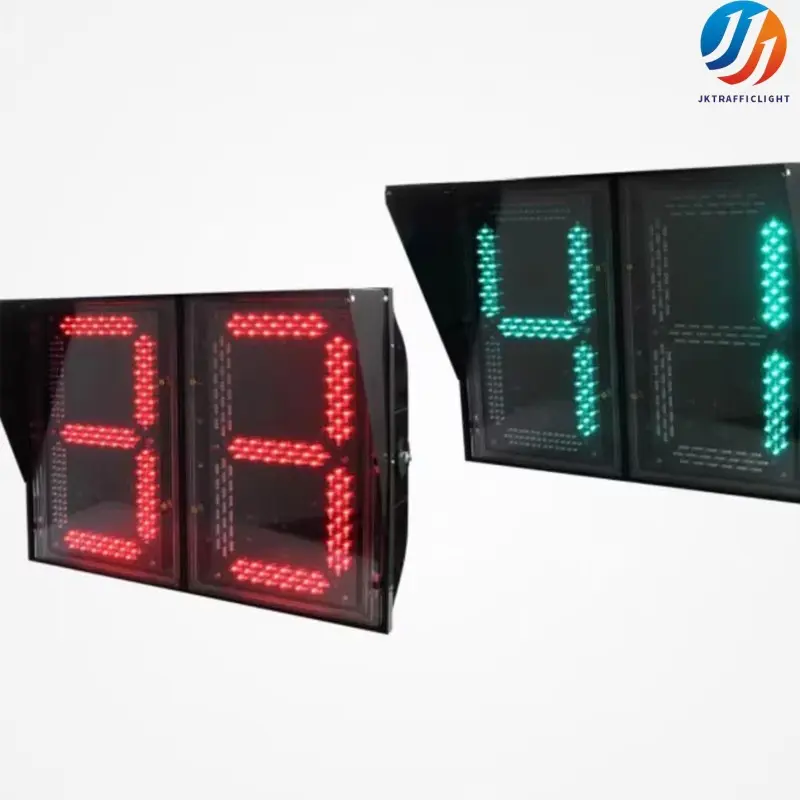

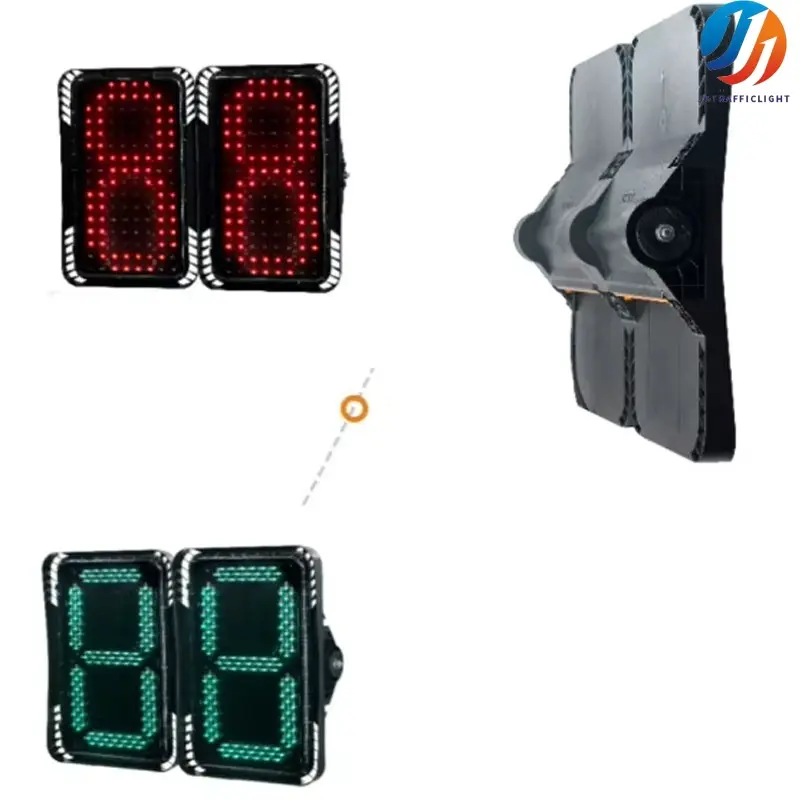

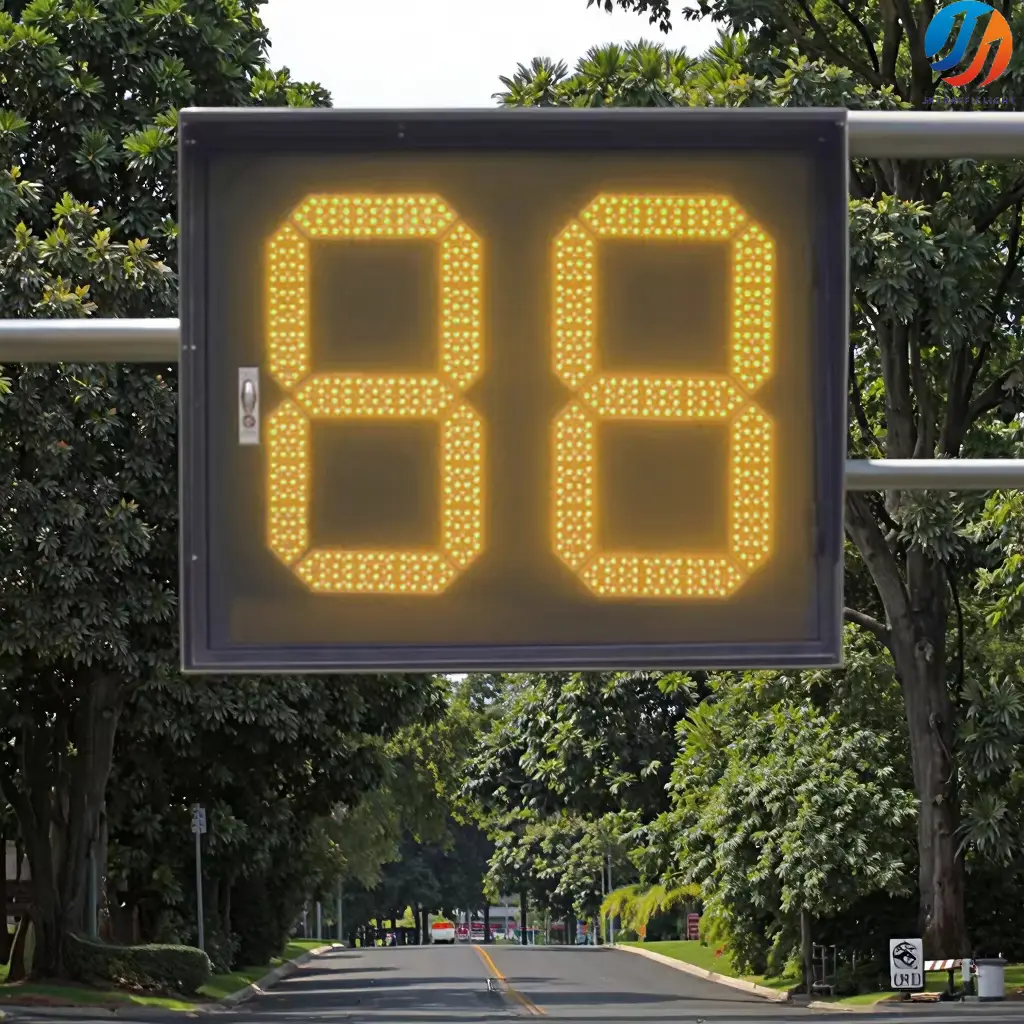

Detailed images
Installation and maintenance
Support horizontal and vertical installation, Angle adjustable, no tools can be quickly disassembled and maintained.The structure design is reasonable, the installation is simple and quick, and can be fixed by wall hanging, column and other ways. At the same time, the modular design, each component is easy to disassemble and replace, reduce maintenance costs, improve maintenance efficiency.
Product Packaging
Frequently Asked Questions (FAQ)
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Samples within 3 days, big order within 1-2 weeks.
Q3: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5: How to choose the system Voltage 12V /24V ?
A: We could design the system for you .Usually 12V system for 15W-40W LED lamp , 24V system for 50-150W LED lamp.
