2/3 Digits Solar Powered Radar Speed Feedback Sign High-Speed Measurement
Product Introduction
Why do schools need dedicated radar speed signs?
High-risk scenario: people and vehicles mixed during school hours, speeding vehicles threaten the safety of students.
Disadvantages of traditional products: static speed limit plates are easy to be ignored, the cost of manual supervision is high and difficult to continue.
Radar speed signs - Safety barriers for children in school zones
Directional monitoring: accurately capture the speed within 100 meters of the school gate, and the LED screen displays "current speed" + "smiling face/crying face" expression (smiling face below the speed limit, crying face and flashing).
Sound and light deterrent: red warning light is displayed when speeding
Results: After installation in a primary school, speeding vehicles were reduced by 92% and parental satisfaction increased by 85%.
Product Specification
| Product name: | Solar Radar Speed Sign for School Zone |
| Brand Name: | Jinke |
| Place of Origin: | Jiangxi, China |
| Size: | W 500x H 700 mm/ W 600 x H 1200mm/ W 700 x H 1200mm/ customized |
| Material: | Galvanized Steel+led light+ reflective sheeting |
| RadarDetectionDistance: | 0-200m |
| Display mode: | 2/3-digit LED Display(optionally) |
| Power Supply: | Solar battery or main power |
| Work temperature: | -20 ℃-+ 70 ℃ |
| Pixel Construction: | RED+GREEN |
| RadarSpeedMeasurementRange: | 1-199km/h |
| Speed Radar Frequency: | 24.15GHz |
| RadarMeasurementAccuracy: | ＜2km/h |
Product Features

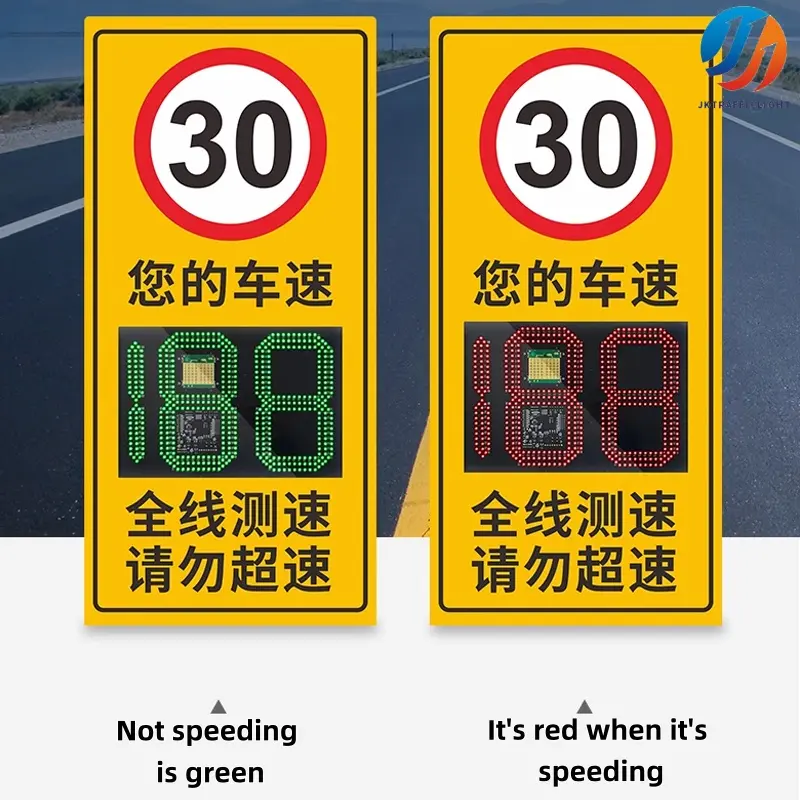

Red and green two-color dynamic screen:
Speed ≤ safe speed: green number shows "safe speed"
Speed > Safe speed: Red number flashing high frequency, warning drivers to slow down

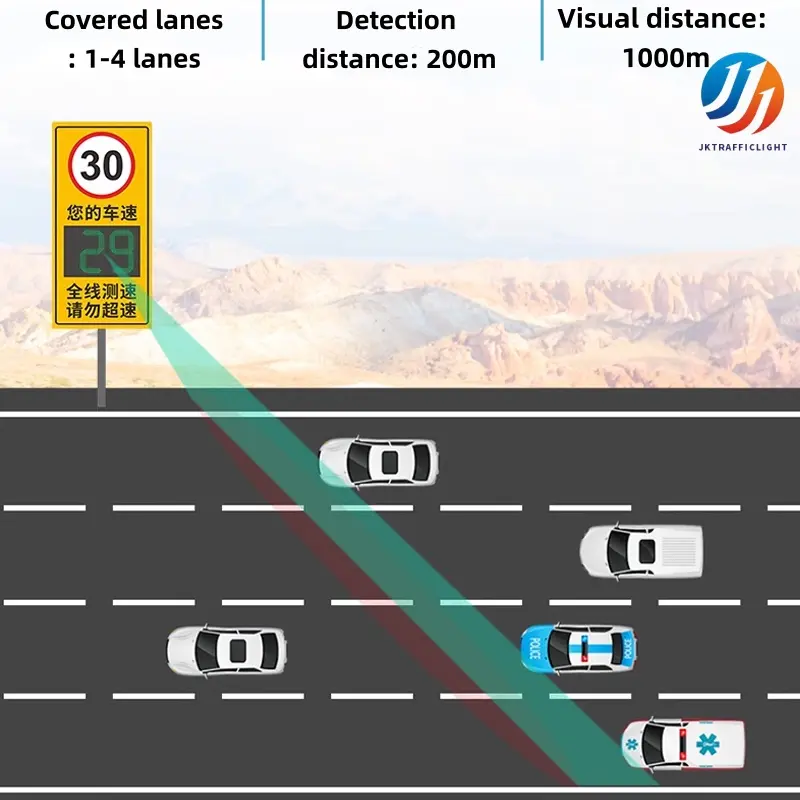

Long-range warning:
Detection distance of 200 meters, in advance display "ahead of school area, speed limit". LED screen brightness automatic adjustment, no reflection on sunny days, rain and fog days strong penetration, to ensure all-weather high visibility.
Energy-saving installation mode:
solar power + wireless transmission, no need to break ground wiring, 1 hour rapid deployment.
Time segment intelligent control, fit the campus schedule
Automatic mode:
During upstream and downstream hours: activates the audible and optical linkage warning
Other time: silent display of speed, to avoid noise interference teaching
Holiday mode: Weekends/winter and summer holidays automatically switch to "car let people" pedestrian priority reminder.
Customizable expression feedback：
Display different expressions (smiling face, crying face) according to the speed:
Green smiling face: normal speed, give positive encouragement;
Red crying face: Remind to slow down when speeding.
Detailed images
Installation and maintenance
1) Signboard installation angle: according to the installation specifications of road traffic signs and markings, signboards shall be installed as shown in the drawings.On that the included angle between the signboard and the road vertical line is set to be 0-10 degrees.
2) Radar installation angle: Since the radar is located on the digital display of the signboard, during actual installation,The angle of that signboard can be adjusted, namely the radar angle is adjusted.
Instructions
Butt-joint a round hole outlet joint of that solar panel with an input joint of the signboard;
Turn on the solar energy output switch;
Complete the parameter configuration through the traffic facility configuration tool APP.
Product Packaging
Frequently Asked Questions (FAQ)
Q1: Do you accept OEM?
A1: Yes. We accept producing products under Clients' brands.
Q2: Do I need a professional for installation?
A2: No need. Product design is simple, easy to install, users can install themselves according to the instructions.
Q3: Does the product support customization?
A3: Yes, we can customize the size, brightness, flicker mode and other parameters according to customer requirements.
